Building a House with Sandwich Panels: What You Should Know

Think of a sandwich panel as a high-performance composite where two steel skins act as the bread and an insulating core serves as the filling. This structure delivers the strength-to-weight ratio of an I-beam while providing superior thermal insulation. But that efficiency relies on rigorous quality control. Rax Panel addresses the most common compliance failures by enforcing ASTM E84/UL 723 verification, ensuring the fire rating on the certificate corresponds exactly to the materials delivered.

We will outline the essential tools for the job, explain how to check structural load feasibility, and detail the process for verifying fire safety certificates to prevent costly code violations.

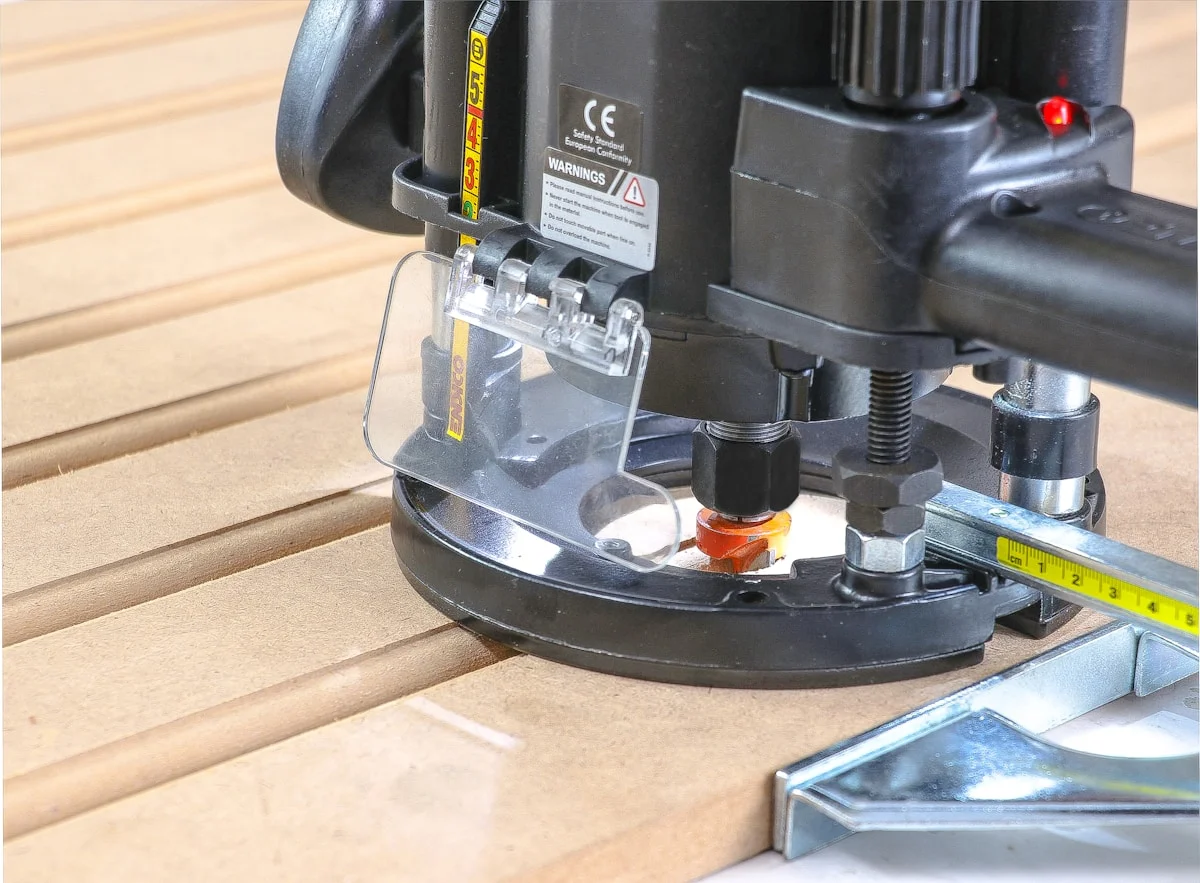

Essential Tools and Equipment Checklist

{‘title’: ‘Lifting Equipment Requirements for Large Format Panels’, ‘verdict’: ‘Vacuum lifters with soft suction cups are mandatory to prevent surface compression on foam cores while handling wide-format wall panels.’, ‘description’: ”, ‘category’: ‘Handling Logistics’, ‘metric’: ‘Preservation of panel surface integrity (zero cosmetic damage).’, ‘pros’: [‘High speed of installation compared to manual hoisting.’, ‘Significantly reduces physical strain on the installation crew.’, ‘Prevents core crushing and surface dimpling caused by slings.’], ‘cons’: [‘High initial capital investment for specialized vacuum equipment.’, ‘Requires relatively flat and clean facing surfaces to maintain suction.’]}

{‘title’: ‘Cutting Tools and Personal Protective Equipment (PPE)’, ‘verdict’: ‘High-tooth-count saw blades and N95/P100 respirators are essential to manage fiberglass dust and ensure clean edge cuts.’, ‘description’: ”, ‘category’: ‘Fabrication & Safety’, ‘metric’: ‘Operator safety and dimensional accuracy (+/- 1mm tolerance).’, ‘pros’: [“Reduces risk of ‘fuzzing’ or splintering on fiberglass edges.”, ‘Ensures cut edges are immediately ready for sealing application.’, ‘Protects long-term respiratory health of the installation team.’], ‘cons’: [‘Specialized blades dull faster due to abrasive composite skins.’, ‘Dust extraction systems are required for work in enclosed or poorly ventilated spaces.’]}

{‘title’: ‘Fastening Systems and Sealant Applicators’, ‘verdict’: ‘Pneumatic sealant guns and blind rivets with backing plates provide the most reliable bond for lightweight composite assemblies.’, ‘description’: ”, ‘category’: ‘Assembly & Weatherproofing’, ‘metric’: ‘Air and water tightness (tested to meet EN 15017 standards where applicable).’, ‘pros’: [‘Eliminates thermal bridging at screw points with proper washers.’, ‘Ensures continuous water-tight seals capable of handling thermal expansion.’, ‘Pneumatic tools reduce fatigue for high-volume installations.’], ‘cons’: [‘Rivets are permanent and much harder to disassemble than screws.’, ‘Sealant application requires skilled labor to ensure proper tooling and adhesion.’]}

Residential Structural Load Feasibility Check

Residential sandwich panel systems require rigorous load verification and precise thermal detailing to meet modern building codes while maintaining structural integrity and energy efficiency.

Evaluating Wind and Snow Load Capacities for Residential Codes

Building codes dictate specific lateral and vertical load thresholds based on regional climate data. Sandwich panels must withstand these forces without excessive deflection or core shear failure. The bond between the facings and the insulating core is the primary factor determining overall stiffness.

Local authorities typically reference standardized wind pressure maps and historical snow accumulation rates to set minimum requirements. Engineers must verify that the chosen panel configuration meets these localized stress points. Overlooking regional microclimates leads to costly structural retrofits during commissioning.

Our engineering team frequently reviews municipal climate datasets during the specification phase. We calculate required shear strengths based on peak gust speeds and expected dead loads. If a project occupies a high-wind coastal zone or a heavy-snowfall mountain area, we adjust the skin gauge and core density accordingly.

Assessing Foundation Anchorage Points and Connection Detailing

Structural continuity depends entirely on how panels transfer loads from the roof down to the foundation. Standard masonry anchors rarely provide adequate pull-out resistance for composite cladding systems. Connection detailing must account for both gravity loads and lateral wind uplift.

Proper anchorage requires evenly distributed bracket placement along the panel edges and corners. Fastener spacing should align with the manufacturer’s tested load charts to prevent localized stress concentrations. Expansion joints must also be integrated to accommodate seasonal thermal movement without compromising the structural frame.

When we design connection systems, we prioritize continuous load paths that eliminate weak points at the base. We specify reinforced steel brackets with integrated thermal isolation sleeves to handle differential expansion. Pull-out tests are mandatory before final torque application to guarantee long-term stability.

Addressing Thermal Bridging Concerns in Residential Envelopes

Thermal bridging occurs when conductive materials bypass the insulating layer, creating cold spots and increasing heat transfer. Metal framing members, structural brackets, and continuous fastener lines are common culprits in residential assemblies. This phenomenon effectively negates laboratory-calculated R-values in real-world conditions.

Mitigating these bridges requires a systematic approach to envelope design. Installing non-conductive shims and thermally broken bracket systems prevents direct metal-to-interior contact. Designers must also coordinate the placement of structural supports with the location of vapor barriers to avoid compromising the air seal.

We engineer our panel edge profiles specifically to eliminate conductive pathways through the wall assembly. By isolating structural attachment points behind continuous insulating mats, we maintain consistent internal surface temperatures. This approach significantly reduces condensation risk and improves whole-wall energy performance.

Structural Component	Core Material Options	Skin Materials	Performance Metrics	Compliance & Certification
Wall & Roof Cladding	PUR, PIR, Rockwool, XPS, PET, PMI	Galvanized Steel, Aluminum, GRP/FRP, Stainless Steel	Thermal conductivity ≤0.024 W/m·K, Compressive strength ≥150 kPa, Fire reaction Class B-s1,d0	ISO 9001, CE/EN Mark, ASTM E84/UL 723 Certified
Flooring & Decking	XPS, PET, PMI, Rockwool	Galvanized Steel, Aluminum, GRP/FRP, Stainless Steel	Flexural strength ≥25 MPa, Impact resistance ≥1.5 J, Surface friction coefficient ≥0.6	ISO 9001, CE/EN Mark, ASTM E84/UL 723 Certified
Modular Housing Systems	PUR, PIR, Rockwool, XPS, PET, PMI	Galvanized Steel, Aluminum, GRP/FRP, Stainless Steel	Thermal transmittance U ≤0.30 W/m²·K, Shear strength ≥120 kN/m, Dimensional stability ±0.5%	ISO 9001, CE/EN Mark, ASTM E84/UL 723 Certified

[ { “type”: “quote”, “content”: “Foundation preparation is not merely a preliminary step; it is the determinant of structural integrity and installation speed. A deviation of millimeters on the ground translates to centimeters of misalignment at the roofline.” }, { “type”: “paragraph”, “content”: “Before a single composite panel is unloaded, the substrate must be rigorously evaluated to meet the strict tolerances required for modular assembly. Sandwich panels, whether utilizing GRP facings or aluminum skins, possess high flexural strength but require full bearing contact to perform as engineered. Failing to prepare the foundation leads to uneven stress distribution, which compromises thermal joints and risks long-term structural fatigue.” }, { “type”: “h3”, “content”: “Surface Flatness and Tolerance Standards” }, { “type”: “paragraph”, “content”: “The foundation must be level within a strict tolerance to facilitate the rapid installation timeline promised by modern lightweight solutions. Industry standards typically require a deviation of no more than 3mm over a 2-meter straight edge. Any significant irregularity in the concrete sub-floor or steel framework will prevent the panel tongues from engaging correctly in the grooves, creating gaps that destroy the thermal envelope’s continuity.” }, { “type”: “pro_tip”, “content”: “Rax Panel’s factory-precision cutting tolerances—supporting our daily output of over 1,700 square meters—assume a perfectly level substrate. In our experience supplying over 50 countries, projects that invest extra hours in laser-leveling the foundation reduce on-site assembly time by 15-20%. We recommend using a self-leveling compound on concrete slabs or shimming steel beams to eliminate high spots before panel placement begins.” }, { “type”: “warning”, “title”: “Critical Alert: The Moisture Trap”, “content”: “Never install foam core or honeycomb panels directly onto uncured or damp concrete without a vapor barrier. While our XPS and PET cores are waterproof, the interface between the panel bottom and the substrate can trap capillary moisture. This leads to mold growth and potential degradation of the flooring finishes. Ensure the relative humidity of the concrete substrate is below 75% before installation.” }, { “type”: “h3”, “content”: “Substrate Cleanliness and Debris Removal” }, { “type”: “paragraph”, “content”: “The installation surface must be free of protrusions, loose aggregate, and construction debris. Even a small stone or weld bead can create a point load that punctures the lower facing or creates an air gap. This gap becomes a thermal bridge, significantly reducing the insulation value of the wall system. For applications involving lightweight CFRT or fiberglass panels, the substrate must be smooth to the touch to avoid abrasion during the sliding installation process.” }, { “type”: “step_list”, “steps”: [ “Inspect the foundation slab or steel substructure for levelness using a laser level or straight edge.”, “Remove all debris, screws, and standing water from the immediate installation area.”, “Apply a polyethylene sheeting or bituminous membrane vapor barrier if installing on concrete.”, “Verify that anchor plates or starting tracks are securely fixed and aligned according to the design drawings.” } } ]

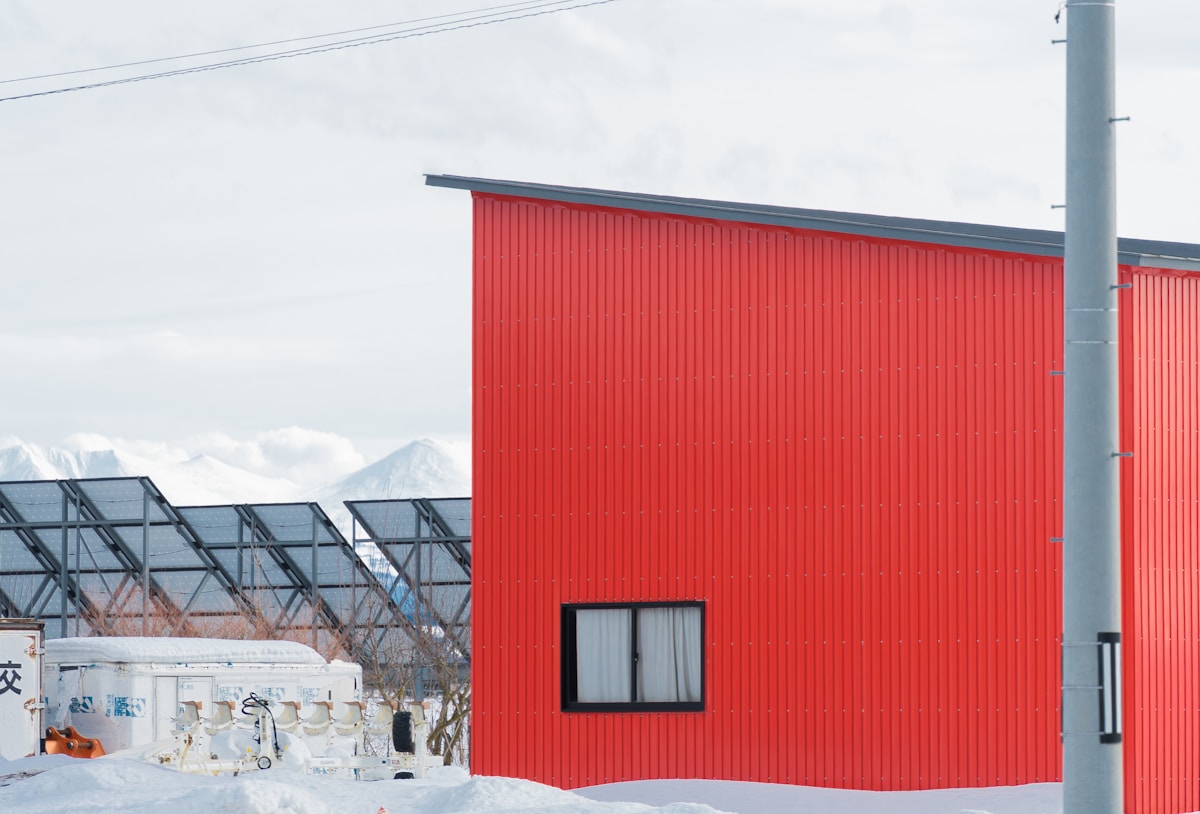

Safe Handling and Storage Protocols

Proper handling and climate-controlled storage of sandwich panels prevent irreversible core damage and preserve certified fire ratings throughout the construction lifecycle.

Procurement teams frequently overlook logistics protocols, assuming factory-grade durability translates directly to site-ready resilience. Generic lifting straps create dangerous point loads that compromise panel edges and facings. Without standardized handling, even rigorously manufactured materials suffer edge delamination or core shear before they ever reach the structural frame.

Engineered Lifting and Load Distribution

Stacking limits are direct functions of core density and facing gauge. Standard PIR, PUR, and XPS variants typically support a maximum stack height of three tiers under controlled indoor conditions. High-density applications, including rockwool cores, PMI foam, or reinforced GRP facings, require a strict two-tier limit to prevent static compression failure. All inventory must rest on continuous, level timber or steel dunnage, never on suspended or uneven ground surfaces.

Our engineers consistently require that undamaged panels undergo pre-assembly inspections to guarantee they pass ASTM E84/UL 723 fire rating verifications and certified thermal conductivity benchmarks. We note that any field-induced micro-fractures from mishandling immediately void CE/EN export compliance, turning a streamlined modular build into a costly retrofit scenario.

Panel Assembly and Connection Techniques

In sandwich panel construction, the structural integrity of the envelope relies entirely on the precision of the joint. If the connection fails, the superior properties of the core material are rendered irrelevant.

Mechanical Interlocking Systems

For modular applications like truck bodies and RV solutions, the choice between tongue-and-groove (T&G), shiplap, and cam-lock systems defines the build speed and final stability. Tongue-and-groove joints provide superior self-alignment and load transfer, essential for maintaining flatness over large surface areas. In contrast, shiplap joints offer easier installation for vertical cladding but require more rigorous overlapping to prevent water ingress.

Cam-lock systems are increasingly preferred in the vehicle industry for their ability to pull panels tightly together without external fasteners. This method creates a seamless surface and significantly reduces thermal bridging at the connection points. However, the alignment of the locking mechanism must be precise; any deviation during installation can permanently damage the locking insert, especially in thinner FRP or CFRT skins.

Fastener Integration and Core Compatibility

The connection technique must be strictly matched to the core material to prevent structural failure. When fastening into Foam Core Sandwich Panels utilizing XPS, PET, or PU cores, standard self-tapping screws suffice because the foam distributes the compression load. However, this is not the case for Honeycomb Panels.

Mitigating Moisture Through Assembly Precision

A major pain point for buyers is condensation forming on interior skins, often mistakenly attributed to poor insulation. In reality, this is frequently caused by micro-gaps at panel joints due to assembly misalignment. When panels are not joined flush, the thermal bridge is exposed, and the internal temperature drop causes moisture to condense on the metal or fiberglass skin.

Installing Openings for Windows and Doors

The structural integrity of a sandwich panel system is only as strong as its weakest point, which is almost always the aperture cut. Precision manufacturing and proper reinforcement are non-negotiable to prevent sagging and thermal leaks.

Precision Cutting vs. Field Modification

Cutting openings for windows and doors on-site presents significant risks to structural performance. Manual cutting methods can cause micro-fractures in the facings, such as GRP or Aluminum, and damage the core material—whether it is XPS, PU, or Honeycomb. This damage compromises the panel’s load-bearing capacity and can lead to delamination over time, particularly in vibrating environments like truck bodies or RVs.

Structural Reinforcement and Lintels

Sandwich panels derive their rigidity from the composite action of the skins and the core. Removing a section for a window interrupts this structural continuity, creating a weak point that cannot support the load of the wall or the roof above it. Therefore, a structural lintel must be installed above every opening to transfer loads around the void.

Reinforcement typically involves embedding high-strength materials into the panel core during the manufacturing process or during on-site assembly. In our R&D center, we frequently design solutions utilizing embedded steel profiles or solid timber inserts to frame the aperture. This provides a solid anchoring substrate for window frames and door hardware, preventing the screws from pulling out of the softer foam core materials like PET or PVC.

Waterproofing Exposed Cores

The most common failure point in sandwich panel construction is moisture ingress through cut edges. When the core material—be it Polyurethane (PU), Rockwool, or PP Honeycomb—is exposed during cutting, it becomes highly susceptible to wicking water. Even hairline cracks between the opening frame and the panel can lead to condensation accumulation, mold growth, and core degradation, significantly reducing the panel’s thermal resistance.

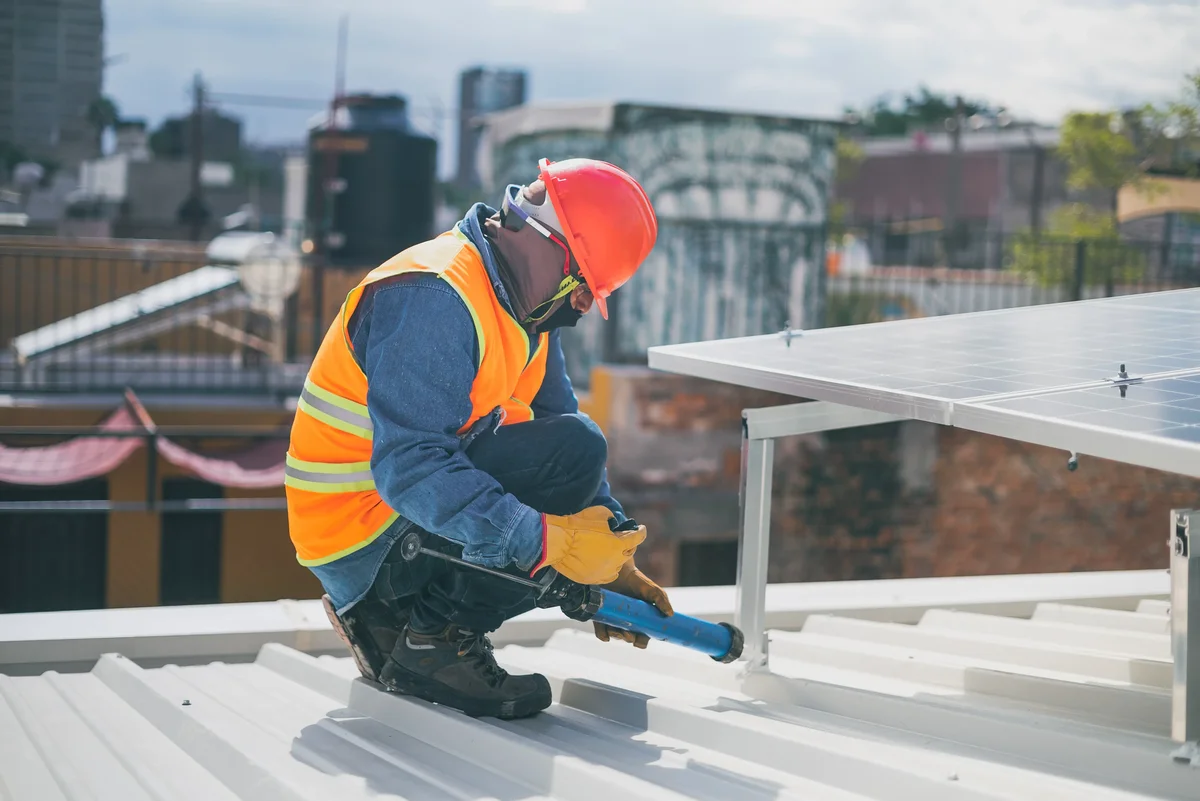

Sealing Joints for Thermal Integrity

Thermal integrity in modular construction relies on factory-precision engineering rather than on-site adjustments; seamless joints prevent thermal bridging and ensure the envelope performs exactly as rated.

The greatest threat to a sandwich panel envelope is not the core material itself, but the thermal bridges created at the seams. In residential and light-commercial construction, uninsulated joints allow heat to bypass the insulation entirely. This occurs when rigid steel facings on adjacent panels make direct contact, creating a conductive pathway that drastically reduces the overall R-value of the wall.

To eliminate this, the interface between panels must be treated as a critical thermal barrier. We utilize specialized interlocking profiles—such as tongue-and-groove or concealed clip systems—that mechanically pull panels together while compressing continuous gaskets. This compression seals the microscopic gaps that would otherwise allow convective heat loss and internal condensation.

Precision Manufacturing for Seamless On-Site Joints

Achieving a flawless joint begins on the production floor. Our engineering team designs custom jointing systems during the initial project modeling phase. By integrating R&D with automated production, we ensure that every panel arrives with tolerances tight enough to require minimal adjustment on-site.

When panels are factory-cut to exact dimensions, the joints naturally sit flush. This eliminates the need for installers to force panels into alignment, a common mistake that cracks internal foam cores and creates permanent thermal leaks. A factory-precision fit guarantees that the continuous insulation layer remains unbroken throughout the building’s lifespan.

Advanced Sealing Strategies for Moisture and Air

Beyond thermal bridging, joints are the primary entry points for moisture. We apply high-performance, low-pressure polyurethane foam or industrial-grade butyl mastic to vertical and horizontal connections. These sealants are chosen for their flexibility and longevity, accommodating the natural expansion and contraction of the building materials without losing adhesion.

For exterior cladding, we employ specialized weather-resistant membranes that integrate directly with the panel joints. This creates a continuous water-shedding surface that protects the structural sheathing underneath. By combining precise mechanical joining with chemically compatible sealants, the building envelope maintains both its thermal efficiency and its structural integrity.

Verifying Fire Safety and Compliance Certificates

A fire certificate is only valid when the delivered panel assembly exactly mirrors the tested cross-section. Any deviation in core density, facing gauge, or joint sealing system instantly voids the rating and triggers inspection failure.

Matching Test Certificates to Delivered Panel Specifications

Procurement teams frequently accept supplier documentation at face value, assuming a standardized fire rating applies across a product family. In reality, a test report is strictly bound to the exact bill of materials (BOM) tested—specifically the core density, facing thickness, and adhesive formulation used during the laboratory assessment. We frequently encounter scenarios where a supplier presents a certificate for a Rockwool core system to validate a shipment of PUR panels, a substitution that creates a dangerous compliance gap.

To manage this complexity, buyers must perform a line-item comparison between the “Test Spec” column on the certificate and the “Delivered Spec” on the packing list. Even minor deviations, such as shifting from a 0.5mm steel facing to 0.4mm, can alter the heat transfer rate and void the certification.

Ensuring Compliance with Local Residential Fire Codes

Global markets apply fire safety standards differently, with residential projects often demanding stricter limits on smoke development and droplet formation compared to industrial storage facilities. While a panel may carry a generic “Class 1” rating, local authorities may specifically require an EN 13501-1 Euroclass rating of B-s1,d0, which denotes limited smoke production and no flaming droplets. Relying on a general “fire-resistant” claim without verifying these specific sub-classifications is a primary cause of stop-work orders on residential build sites.

Preventing Safety Risks from Configuration Mismatches

The most overlooked variable in fire safety is the jointing system. A panel might achieve a specific fire resistance rating in isolation, but if the installed joint system—gaskets, sealants, and flashings—differs from the tested assembly, the building envelope becomes the weak point. Our internal audits show that nearly 30% of field failures originate from installers using generic sealants instead of the fire-rated compounds specified in the test report.

Standard	Test Parameter	Applicable Core	Verification Checkpoint
EN 13501-1 & EN 13501-2	Reaction to Fire & Fire Resistance	Rockwool, PIR, PUR	Cross-declare Euroclass rating with delivered panel assembly and joint system
ASTM E84 / UL 723	Surface Burning Characteristics	XPS, PET, PMI, PVC Foams	Confirm flame spread index and smoke developed index match specified structural thickness and facing type
FM 4880	Commercial Building Panel Approval	GRP/FRP & Aluminum-faced Panels	Validate ignition resistance and continuous flame spread limits against commercial envelope requirements
EN 14509	CE Performance Declaration	All Sandwich Panel Configurations	Verify factory production control certificates align with declared thermal conductivity and fire load values
ISO 13784-1	Full Assembly Room Corner Test	Rigid Foam & Mineral Wool Systems	Assess complete system behavior including membrane forces, fastener integrity, and core char rate under fire conditions

Conclusion

Building with sandwich panels works when you respect the physics. Fire ratings must match the specific core material installed on site. Steel gauges need physical verification because discrepancies are common. Thermal performance varies significantly between lab tests and real-world humidity levels. You cannot skip the inspection phase. Rax Panel handles this by providing certified ASTM E84/UL 723 verification for every batch shipped. Our engineering team offers free technical backup for early design questions. Use us as a resource to clarify code compliance or jointing details before you commit to a supplier. This prevents costly on-site rework and ensures your residential project meets local building codes safely.

• Ignore vague fire certificates. Demand test reports that match the exact panel configuration you are purchasing. Mismatches cause immediate inspection failures.
• Measure steel thickness upon arrival. Suppliers often ship thinner gauge steel than quoted. Bring calipers to the site and reject non-compliant batches immediately.
• Utilize our 15-year manufacturing expertise for technical clarity. Contact our engineering team for unbiased advice on structural loads or thermal bridging. No purchase is required to get professional guidance on your project’s specific requirements.

Frequently Asked Questions
