Insulated ceiling panels are factory-finished sandwich components that combine thermal insulation, vapor control, and a clean interior surface into a single overhead element. Designed for commercial, industrial, and cold-storage buildings, each panel bonds a PIR rigid foam core between prepainted steel or aluminum faces, delivering continuous thermal resistance that prevents condensation on the interior ceiling plane.
The PIR core (density approximately 40 kg/m³, thermal conductivity 0.021–0.024 W/m·K) provides high R-value per unit thickness, allowing thinner ceiling assemblies than mineral wool or EPS alternatives. Panels span between supporting purlins or suspension grids at centers up to 3 meters depending on thickness, eliminating the need for secondary ceiling linings.
Available in thicknesses from 40 mm to 200 mm with concealed or exposed fastener systems, panels suit new construction and retrofit projects where temperature control, hygiene, and acoustic comfort are specified. Standard interior faces are finished in off-white polyester coating for clean appearance; exterior faces carry weather-resistant coatings for exposed soffit applications.
Trusted Supplier of High-Performance Insulated Ceiling Panels
RaxPanel manufactures insulated ceiling panels at our production facility in Hebei, China, on a continuous double-belt lamination line that bonds prepainted metal faces to PIR foam cores under controlled temperature and pressure. Ceiling panels require particular attention to face flatness and coating uniformity because they are viewed from below at close range under artificial lighting — any surface waviness or gloss inconsistency is immediately visible to building occupants.
Our ceiling panel production uses automated foam metering and mixing to achieve consistent core density (approximately 40 kg/m³) across the full panel width. Face flatness is verified by laser profilometer at line speed, and coating thickness is measured by magnetic gauge at multiple points per panel. Panels are cut to length by flying saw and stacked with interleaving film to prevent face-to-face scratching during packing.
We coordinate panel lengths and joint details with the project’s structural grid to minimize on-site cutting. Concealed-fix systems use a tongue-and-groove profile that hides fasteners from the finished ceiling plane, producing a clean, uninterrupted surface suitable for food-processing, pharmaceutical, and cleanroom environments where hygiene and washability are specified.
| Parameter | Specification |
|---|---|
| Core Material | PIR (Polyisocyanurate) rigid foam |
| Core Density | Approx. 40 kg/m³ |
| Thermal Conductivity (λ) | 0.021–0.024 W/m·K |
| Panel Thickness Range | 40 mm – 200 mm |
| Thermal Resistance (R-Value) | R-1.7 to R-9.5 (SI) depending on thickness |
| Standard Widths | 1000 mm, 1100 mm, 1200 mm |
| Maximum Length | Up to 13,500 mm (transport-limited) |
| Interior Face | Prepainted steel, off-white polyester coating (15–25 µm) |
| Exterior Face | Prepainted steel or aluminum, weather-resistant polyester (25 µm) |
| Joint Type | Concealed-fix tongue-and-groove; exposed-fix option |
| Acoustic Attenuation | Rw 24–30 dB (depending on thickness and configuration) |
| Typical Span (ceiling) | Up to 3.0 m between supports (thickness-dependent) |
| Application | Commercial, industrial, cold-storage, cleanroom ceilings and soffits |
Insulated Ceiling Panel Engineering Guide: Condensation Control, Span Design & Acoustic Comfort
Ceiling panels operate in a fundamentally different environment from wall or roof panels. They are viewed from below under artificial lighting, so surface flatness and coating uniformity are critical. They face warm, humid interior air rising against a cold upper surface, making condensation control the primary design driver. And they must span between structural supports without visible deflection, since any sag is immediately noticeable to occupants.
💡 Pro Tip: Why PIR Core Outperforms EPS and Mineral Wool for Ceilings
PIR foam achieves λ = 0.021–0.024 W/m·K, roughly 40% better than EPS (0.033–0.038) and 50% better than mineral wool (0.038–0.045). This means a 80 mm PIR ceiling panel delivers the same R-value as 130 mm EPS or 160 mm mineral wool — critical when ceiling height is constrained by building services above.
PIR foam achieves λ = 0.021–0.024 W/m·K, roughly 40% better than EPS (0.033–0.038) and 50% better than mineral wool (0.038–0.045). This means a 80 mm PIR ceiling panel delivers the same R-value as 130 mm EPS or 160 mm mineral wool — critical when ceiling height is constrained by building services above.
1. Condensation Control: The Primary Design Driver
In conditioned buildings, warm humid air rises and contacts the ceiling plane. If the interior surface temperature falls below the dew point, condensation forms — causing staining, mold growth, and corrosion of metal fixtures. PIR ceiling panels prevent this by maintaining the interior face temperature above the dew point through continuous insulation with no thermal bridges at joints (concealed-fix tongue-and-groove design).
2. Span Design: Deflection Limits for Overhead Panels
Ceiling panels span between purlins, beams, or suspension grid members. Unlike wall panels (where deflection is hidden), ceiling sag is visually unacceptable. Design deflection is typically limited to span/200 or 15 mm maximum. For a 100 mm PIR panel with 0.5 mm steel faces, spans up to 2.5 m are achievable under self-weight plus service loads. Thicker panels (120–150 mm) extend spans to 3.0 m.
3. Acoustic Performance: Reducing Overhead Noise Transmission
🔇 Acoustic Isolation Performance:
- Sound reduction: Composite PIR panels achieve Rw 24–30 dB depending on thickness and face gauge, attenuating mechanical plant noise, rain impact, and adjacent-tenant sound transmission.
- Rain noise: The foam core dampens rain drumming on metal roof sheets above, reducing interior noise levels by 15–20 dB compared to uninsulated metal decking.
4. Hygiene and Cleanroom Applications

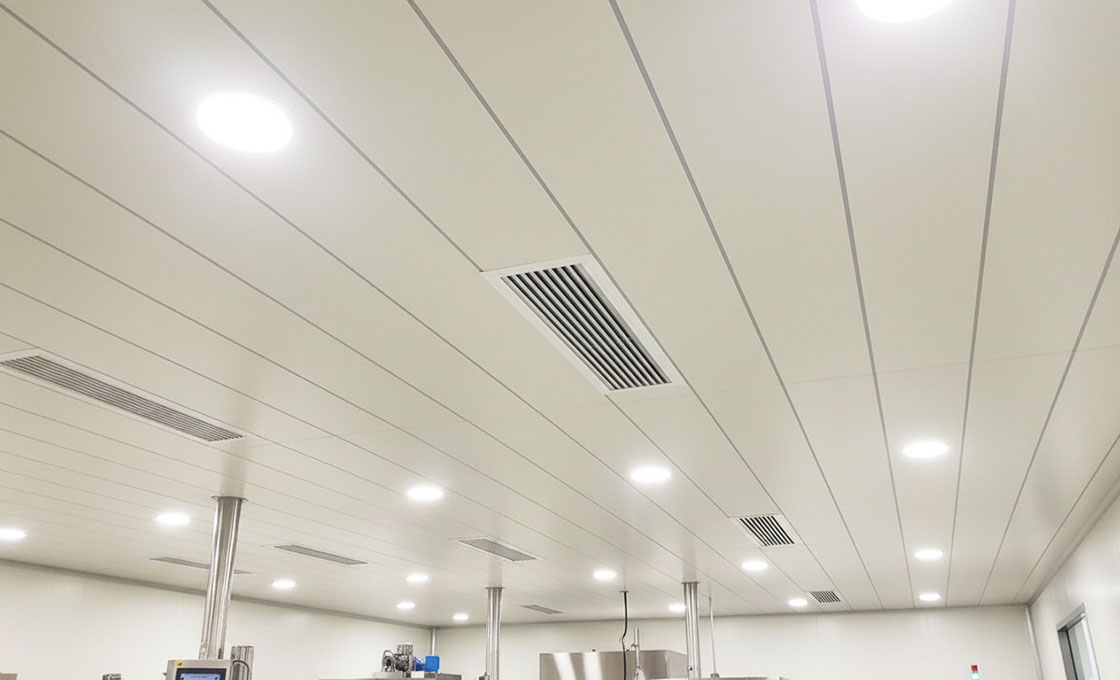

Food-processing plants, pharmaceutical facilities, and healthcare environments require ceiling surfaces that resist microbial growth, withstand repeated washdown, and present no joints where contaminants can accumulate. Concealed-fix tongue-and-groove panels produce a smooth, uninterrupted ceiling plane. Off-white polyester coating (15–25 µm) provides a non-porous, wipeable surface compatible with cleaning agents used in HACCP and GMP environments.
5. Concealed-Fix vs. Exposed-Fix Joint Systems
Concealed-fix panels use a tongue-and-groove profile where the fastener drives through the male tongue and is covered by the adjacent panel’s groove, leaving no visible screw heads on the finished ceiling. This is specified for architectural interiors, cleanrooms, and retail spaces. Exposed-fix systems use visible fasteners with neoprene washers, suited to industrial and agricultural buildings where appearance is secondary and maintenance access is frequent.
6. Integration with Building Services
Ceiling panels must accommodate recessed lighting, HVAC diffusers, sprinkler heads, and cable trays. Panels are pre-drilled or site-cut using hole saws and jigsaws without compromising structural integrity, provided cutouts do not exceed 30% of panel width. For heavy service loads (suspended equipment, mezzanine connections), independent support from the primary structure is required rather than loading the panel itself.
Frequently Asked Questions (FAQS)
1. What panel thickness prevents condensation in a high-humidity environment?
The required thickness depends on interior humidity and exterior temperature. For typical food-processing environments (80% RH, 15°C interior, -5°C exterior), 100 mm PIR maintains the interior face above the dew point. For freezer applications (-25°C), 150–200 mm is standard. Our engineering team can calculate the minimum thickness for your specific climate and humidity conditions.
2. What is the maximum unsupported span for a ceiling installation?
For 100 mm PIR panels with 0.5 mm steel faces, the maximum recommended span is 2.5 m under self-weight plus light service loads (deflection limited to span/200). At 120–150 mm thickness, spans extend to 3.0 m. Wider spans require thicker panels, deeper profile faces, or intermediate support members.
3. Are the panels suitable for food-processing and pharmaceutical cleanrooms?
Yes. The concealed-fix joint system produces a smooth, uninterrupted ceiling plane with no exposed fasteners or crevices where contaminants accumulate. The off-white polyester coating is non-porous, wipeable, and compatible with standard cleaning and sanitizing agents used in HACCP and GMP environments.
4. How much noise reduction do insulated ceiling panels provide?
PIR composite panels achieve Rw 24–30 dB sound reduction depending on thickness and face gauge. They are particularly effective at dampening rain drumming noise on metal roofs above, reducing interior sound levels by 15–20 dB compared to uninsulated metal decking. For higher acoustic requirements, panels can be combined with a separate acoustic membrane.
5. Can recessed lighting and HVAC diffusers be installed in the panels?
Yes. Panels are site-cut using hole saws for downlights and jigsaws for rectangular diffuser openings. Cutouts should not exceed 30% of panel width to maintain structural span capacity. For heavy suspended equipment, independent support from the primary structure above is required rather than loading the panel.
6. What is the difference between concealed-fix and exposed-fix ceiling panels?
Concealed-fix panels use a tongue-and-groove joint where fasteners are hidden inside the profile, producing a clean ceiling with no visible screws — specified for architectural, retail, and hygiene environments. Exposed-fix panels use visible fasteners with neoprene washers, suited to industrial and agricultural buildings where appearance is secondary and panel removal for maintenance access is frequent.
7. How are panels packaged and shipped to prevent surface damage?
Panels are stacked with interleaving PE film between each sheet to prevent face-to-face scratching. Bundles are strapped on timber bearers, wrapped in protective hood film, and loaded into containers with dunnage to prevent shifting during ocean transit. Maximum bundle height is limited to prevent bottom-panel crushing under stack weight.
