Insulated overhead door panels combine a rigid foam core with metal facings to deliver thermal insulation and structural integrity for building openings. The sandwich structure typically features a polyisocyanurate (PIR) foam core bonded between high-quality steel sheets, creating a prefabricated assembly that integrates insulation, protection, and finished surface into a single component.
Available in thicknesses from 1 to 8 inches, these panels provide thermal resistance values ranging from R-7 to R-8 per inch depending on the core material. Standard widths span 24 to 42 inches, with customizable lengths up to 54 feet. Profile options include corrugated and trapezoidal designs, while exterior finishes feature polyester coatings or specialized systems like Heavy-Duty 200µm Plastisol Coated Steel.
The panels serve industrial facilities, commercial buildings, and agricultural structures requiring temperature control and weatherproofing. Their lightweight construction and interlocking joints enable efficient installation using self-drilling screws positioned at high points to prevent water accumulation.
Factory fabrication ensures consistency while the integrated design can reduce cost per square meter compared to traditional multi-part systems. The panels accommodate various mounting hardware for accessories without compromising thermal performance, and many options include fire resistance testing and third-party verified environmental product declarations for building code compliance.
Trusted Insulated Overhead Door Panel Supplier
A direct manufacturer based in China, RaxPanel has built a reputation on over 20 years of quality craftsmanship and expertise, serving clients in 30+ countries. As a leader in producing premium insulated metal panels, we offer industry-best thermal and moisture control along with the ultimate in design options, driven by our philosophy of creating better buildings for a better world.
With a daily production capacity of over 1500 square meters and cutting-edge in-house R&D, we engineer robust solutions like our Insulated Overhead Door Panels. These panels feature a carefully engineered PIR insulation foam core sandwiched between durable steel sheets, ensuring superior insulation, strength, and efficiency for optimal performance.
Our commitment to versatility is reflected in a wide range of customizable options, including:
- Thicknesses
- Profiles
- Colors
tailored to meet diverse architectural and functional needs.
Supported by efficient logistics, we deliver reliable, high-quality products directly to your project. Browse our selection of building envelope components and contact us today to select the best products for your functional, sustainable, and aesthetic needs.
| Parameter | Specification |
|---|---|
| Core Insulation Material | Polyisocyanurate (PIR) Rigid Foam |
| Core Density | 2.49 lb/ft³ |
| Thermal Resistance (R-Value per inch of core) | R-7 (for PIR core) |
| Available Thicknesses | 1 inch to 8 inches |
| Standard Panel Width | 24 inches to 42 inches |
| Maximum Panel Length | Up to 54 feet (subject to transport limitations) |
| Panel Profile Types | Corrugated, Trapezoidal |
| Exterior Face Material/Finish | Prepainted Steel, Polyester or Heavy-Duty 200µm Plastisol Coated Steel coating |
| Interior Face Material/Finish | Prepainted Steel, Standard Off-White (similar to RAL 9002) |
| Joint System | Interlocking male/female |
| Fastener Type | Self-drilling screws (applied at high points) |
| Fire Resistance | Tested for building code compliance; options with third-party verified EPDs available |
| Typical Applications | Industrial facilities, commercial buildings, agricultural structures |
Related Products
Insulated Roof & Door Panel Engineering & Selection Guide
Insulated metal roof and door sandwich panels provide continuous structural load-bearing capacity, weatherproofing, and thermal insulation for residential patios, commercial carports, agricultural barns, and sectional overhead doors. Engineered with standing seam, snap-lock, or trapezoidal micro-rib facings bonded to high-R PIR/PU foam cores ($\lambda pprox 0.020$ W/m·K), these systems eliminate water ingress on low-slope roofs while carrying heavy snow and wind suction loads.
💡 Pro Tip: Standing Seam Hydrostatic Water Seal & UL 580 Wind Uplift
At RaxPanel, our snap-lock and standing seam roof panels feature factory-applied butyl seam sealants that satisfy ASTM E2140 hydrostatic head water immersion tests down to 1/4:12 roof slopes. Concealed expansion clips absorb thermal expansion without oil-canning or tearing fastener holes under UL 580 wind uplift forces.
At RaxPanel, our snap-lock and standing seam roof panels feature factory-applied butyl seam sealants that satisfy ASTM E2140 hydrostatic head water immersion tests down to 1/4:12 roof slopes. Concealed expansion clips absorb thermal expansion without oil-canning or tearing fastener holes under UL 580 wind uplift forces.
1. How Do Snap-Lock and Standing Seam Profiles Prevent Roof Leaks?
Exposed screw fasteners on traditional metal roofs degrade, loosen, and leak over time. Snap-lock and standing seam IMPs conceal fixing clips inside the male-female rib overlap, creating a 100% screwless weather face impervious to torrential rain and melting snowpack.
2. What Snow Load and Wind Suction Capacities Define Roof & Door Panels?
Structural composite action allows long purlin spans (up to 3.5 meters) under extreme ASCE 7 design loads:
3. Architectural Finishes: Spanish Tile, Standing Seam & Woodgrain Doors
Options range from classic 3-rib/5-rib trapezoidal profiles, elegant standing seams, authentic Spanish tile-look stamped panels, to embossed woodgrain sectionals for residential garage doors.
4. Pinch-Resistant Sectional Door Joints with Thermal Break Gaskets
🚪 Overhead Door Engineering Protection:

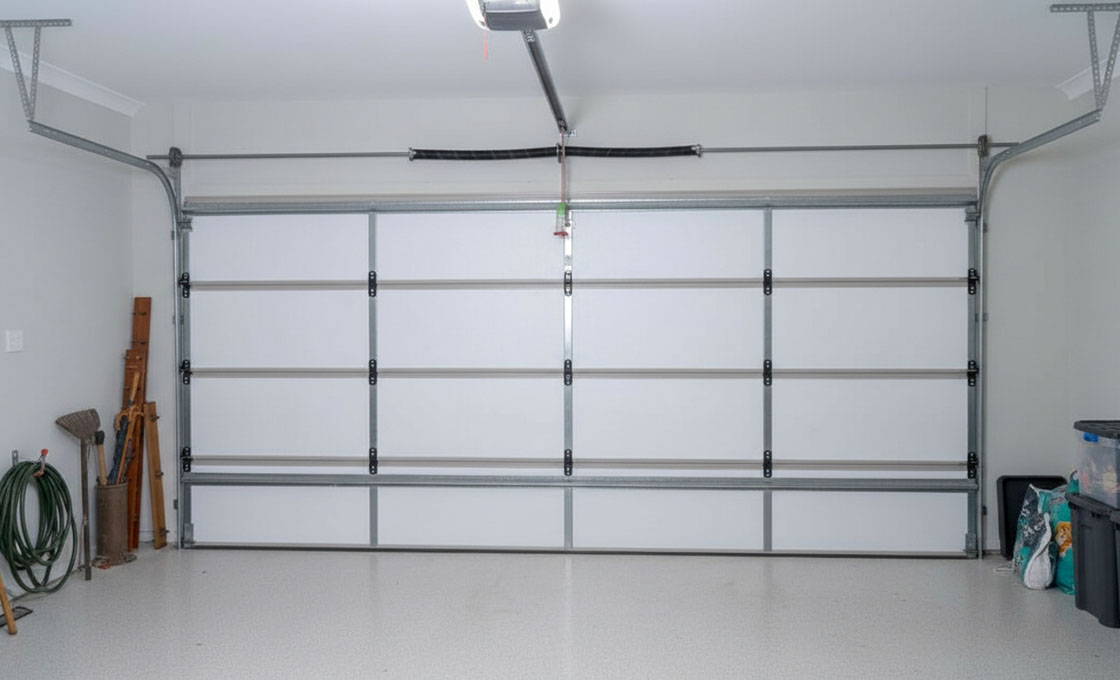

- Safety Finger-Pinch Protection: Sectional overhead door panel joints use curved safety profiles that prevent hand entrapment during door travel.
- Dual EPDM Thermal Seals: Top, bottom, and inter-section EPDM seals block cold air drafts and water infiltration.
5. Where Are Insulated Roof & Door Panels Most Commonly Installed?
🏡 Patios, Carports, Pergolas & Residential Roofs
Insulated, quiet roof covers that dampen heavy rain noise and keep outdoor living spaces cool.

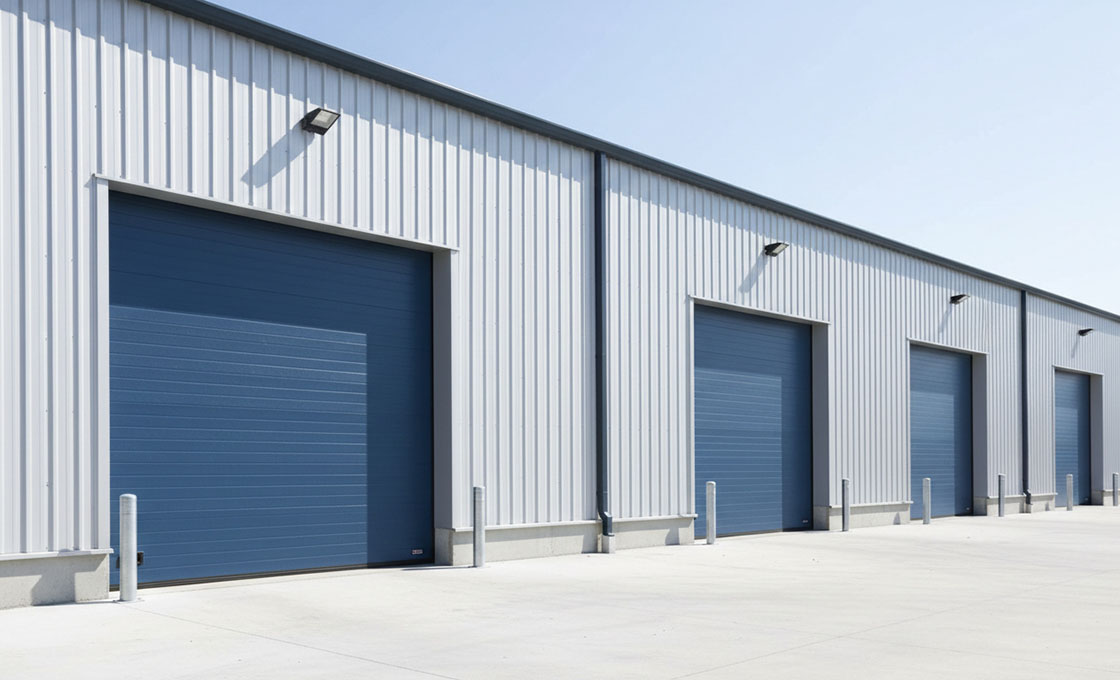

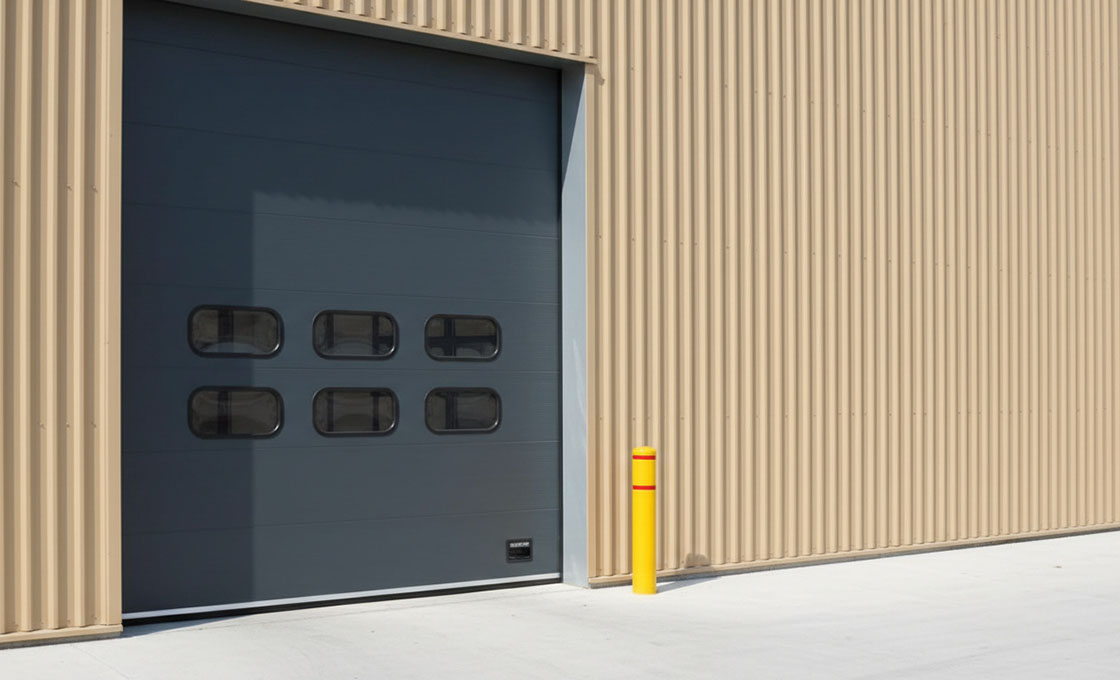

🏭 Industrial Overhead Doors & Warehouses
Insulated sectional garage doors and large-span factory roof systems.
6. On-Site Erection and Purlin Span Layout
Roof panels install quickly over purlins using concealed expansion clips. Overlapping male seams are crimped or snapped into place, reducing roof installation labor by over 40%.
Frequently Asked Questions (FAQS)
1. What is the minimum roof slope pitch required for snap-lock insulated roof panels?
Snap-lock panels are recommended for roof slopes of 3:12 (approx 14°) or greater, while mechanically seamed panels can go down to low slopes of 1/4:12 (approx 1°).
2. How do insulated roof panels dampen heavy rain noise compared to single-skin sheet metal?
The high-density PIR/PUR foam core absorbs rain impact vibrations, attenuating sound by 25 dB to 30 dB relative to noisy single-sheet metal roofs.
3. What thermal R-value insulation is achieved by 50mm insulated door panels?
A 50mm PUR insulated garage or overhead door section achieves approximately R-16 to R-18, preventing heat loss in climate-controlled loading docks.
4. Are standing seam roof panels wind uplift certified for coastal hurricane zones?
Yes. Concealed clip standing seam panels satisfy UL 580 Class 90 wind uplift resistance standards.
5. Can patio insulated panels support foot traffic during maintenance?
Yes. High-density PIR cores (40 kg/m³) with 0.5mm structural steel skins support maintenance personnel foot traffic over purlin spans.
6. How do pinch-resistant garage door section joints protect user safety?
Sectional door panel joint edges feature curved safety profiles that gently push fingers away as the door sections articulate during opening.
7. What maximum single-panel roof length can be manufactured?
Roof panel lengths up to 11.8 meters are standard for shipping in 40ft container freight, eliminating ridge-to-eave mid-span lap joints.
