Insulated Roof & Door Panel Engineering & Selection Guide
Insulated metal roof and door sandwich panels provide continuous structural load-bearing capacity, weatherproofing, and thermal insulation for residential patios, commercial carports, agricultural barns, and sectional overhead doors. Engineered with standing seam, snap-lock, or trapezoidal micro-rib facings bonded to high-R PIR/PU foam cores ($\lambda pprox 0.020$ W/m·K), these systems eliminate water ingress on low-slope roofs while carrying heavy snow and wind suction loads.
💡 Pro Tip: Standing Seam Hydrostatic Water Seal & UL 580 Wind Uplift
At RaxPanel, our snap-lock and standing seam roof panels feature factory-applied butyl seam sealants that satisfy ASTM E2140 hydrostatic head water immersion tests down to 1/4:12 roof slopes. Concealed expansion clips absorb thermal expansion without oil-canning or tearing fastener holes under UL 580 wind uplift forces.
1. How Do Snap-Lock and Standing Seam Profiles Prevent Roof Leaks?
Exposed screw fasteners on traditional metal roofs degrade, loosen, and leak over time. Snap-lock and standing seam IMPs conceal fixing clips inside the male-female rib overlap, creating a 100% screwless weather face impervious to torrential rain and melting snowpack.
2. What Snow Load and Wind Suction Capacities Define Roof & Door Panels?
Structural composite action allows long purlin spans (up to 3.5 meters) under extreme ASCE 7 design loads:
| Roof / Door Performance Parameter |
RaxPanel Engineering Metric |
Structural Advantage |
| Wind Uplift Resistance |
UL 580 Class 90 / UL 1897 Uplift Compliant |
Withstands hurricane-force wind uplift and severe storms |
| Snow Load Capacity |
≥ 2.5 kN/m² (250 kg/m²) over 3.0m span |
Supports heavy winter snow accumulation without sagging |
| Hydrostatic Water Immersion |
ASTM E2140 Zero Leakage at 150mm water head |
Immune to standing water leaks on low-slope roof pitches |
| Door Section Thermal R-Value |
R-16 to R-20 (40mm – 50mm PUR Core) |
Prevents heat loss through warehouse overhead garage doors |

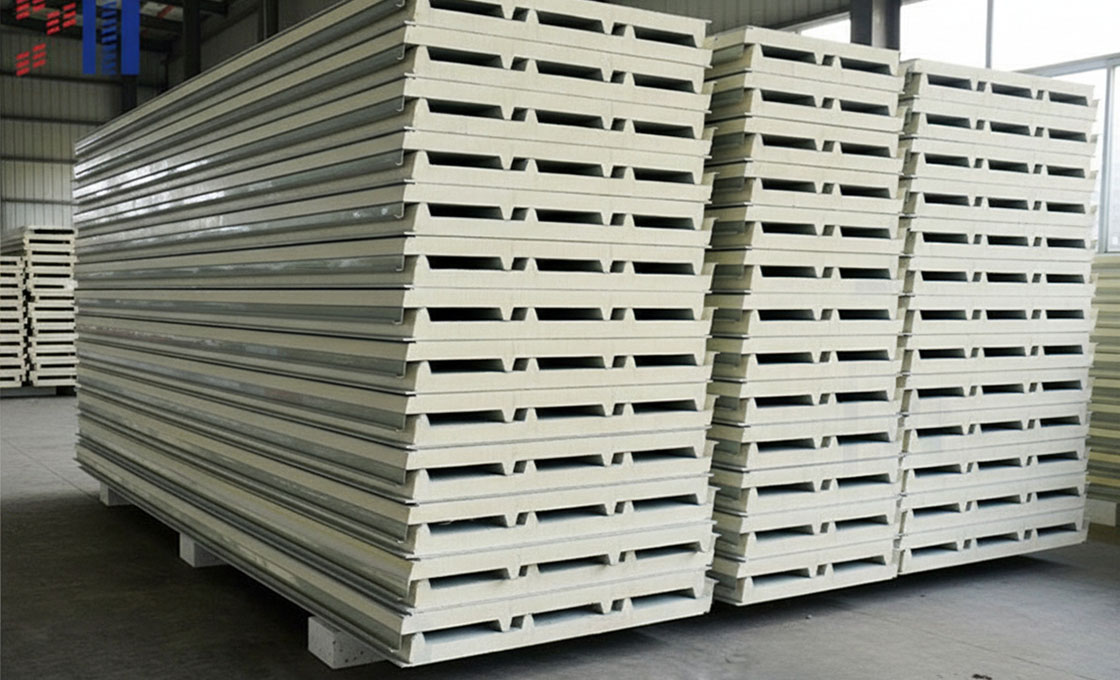

3. Architectural Finishes: Spanish Tile, Standing Seam & Woodgrain Doors

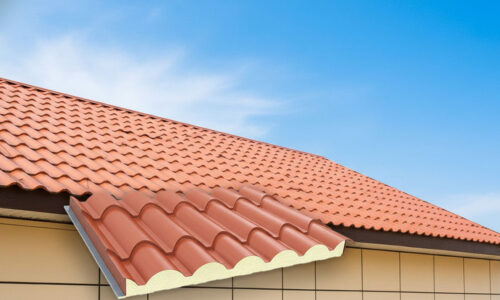

Options range from classic 3-rib/5-rib trapezoidal profiles, elegant standing seams, authentic Spanish tile-look stamped panels, to embossed woodgrain sectionals for residential garage doors.
4. Pinch-Resistant Sectional Door Joints with Thermal Break Gaskets
🚪 Overhead Door Engineering Protection:
- Safety Finger-Pinch Protection: Sectional overhead door panel joints use curved safety profiles that prevent hand entrapment during door travel.
- Dual EPDM Thermal Seals: Top, bottom, and inter-section EPDM seals block cold air drafts and water infiltration.
5. Where Are Insulated Roof & Door Panels Most Commonly Installed?

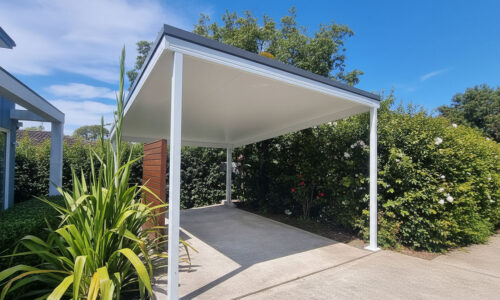

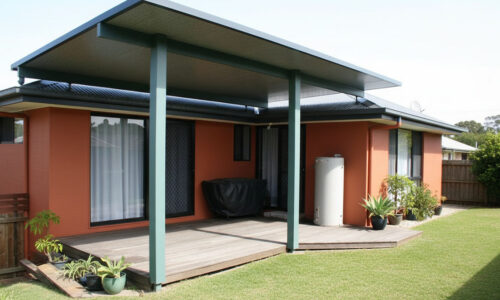

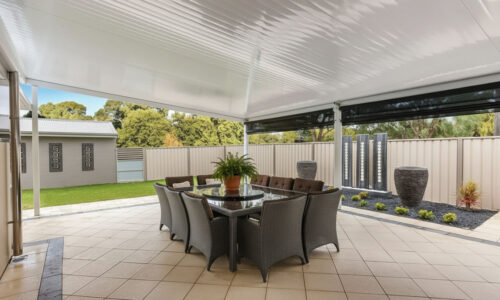

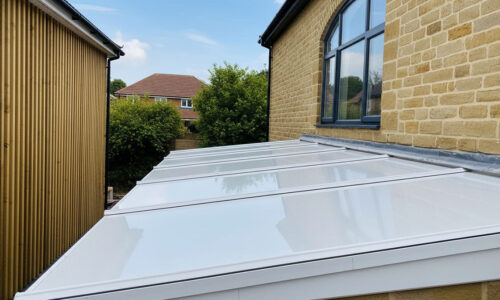

🏡 Patios, Carports, Pergolas & Residential Roofs
Insulated, quiet roof covers that dampen heavy rain noise and keep outdoor living spaces cool.
🏭 Industrial Overhead Doors & Warehouses
Insulated sectional garage doors and large-span factory roof systems.

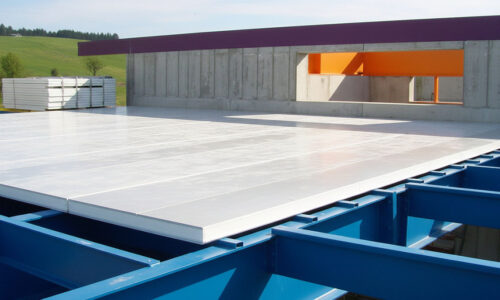

6. On-Site Erection and Purlin Span Layout
Roof panels install quickly over purlins using concealed expansion clips. Overlapping male seams are crimped or snapped into place, reducing roof installation labor by over 40%.
Frequently Asked Questions (FAQS)
1. What is the minimum roof slope pitch required for snap-lock insulated roof panels?
Snap-lock panels are recommended for roof slopes of 3:12 (approx 14°) or greater, while mechanically seamed panels can go down to low slopes of 1/4:12 (approx 1°).
2. How do insulated roof panels dampen heavy rain noise compared to single-skin sheet metal?
The high-density PIR/PUR foam core absorbs rain impact vibrations, attenuating sound by 25 dB to 30 dB relative to noisy single-sheet metal roofs.
3. What thermal R-value insulation is achieved by 50mm insulated door panels?
A 50mm PUR insulated garage or overhead door section achieves approximately R-16 to R-18, preventing heat loss in climate-controlled loading docks.
4. Are standing seam roof panels wind uplift certified for coastal hurricane zones?
Yes. Concealed clip standing seam panels satisfy UL 580 Class 90 wind uplift resistance standards.
5. Can patio insulated panels support foot traffic during maintenance?
Yes. High-density PIR cores (40 kg/m³) with 0.5mm structural steel skins support maintenance personnel foot traffic over purlin spans.
6. How do pinch-resistant garage door section joints protect user safety?
Sectional door panel joint edges feature curved safety profiles that gently push fingers away as the door sections articulate during opening.
7. What maximum single-panel roof length can be manufactured?
Roof panel lengths up to 11.8 meters are standard for shipping in 40ft container freight, eliminating ridge-to-eave mid-span lap joints.
