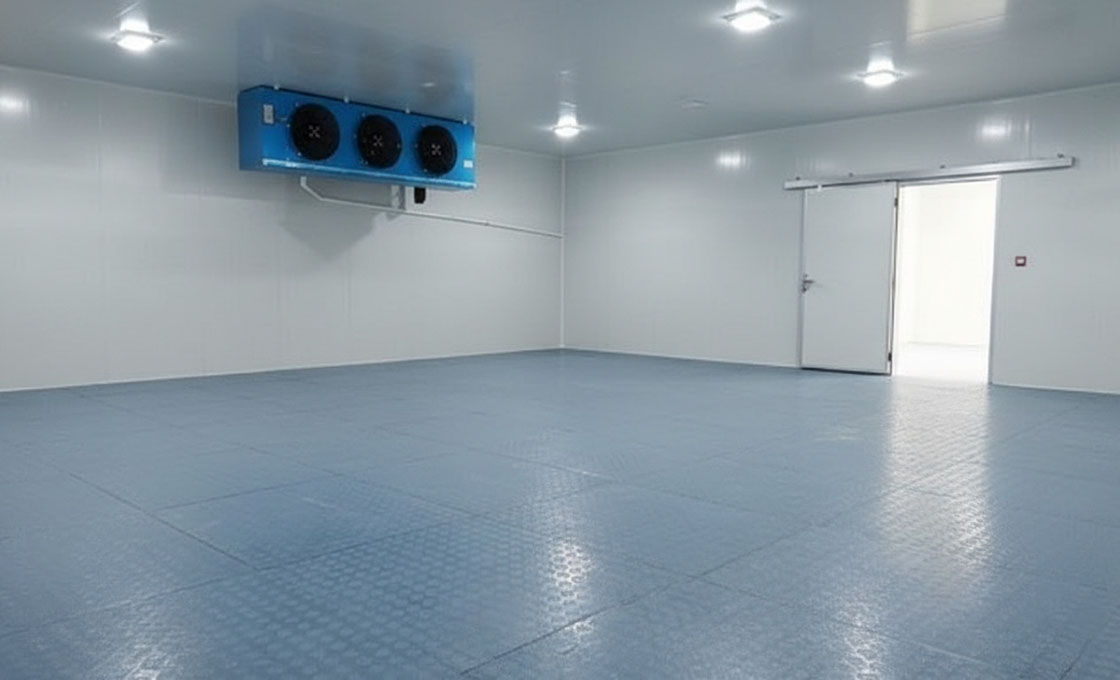

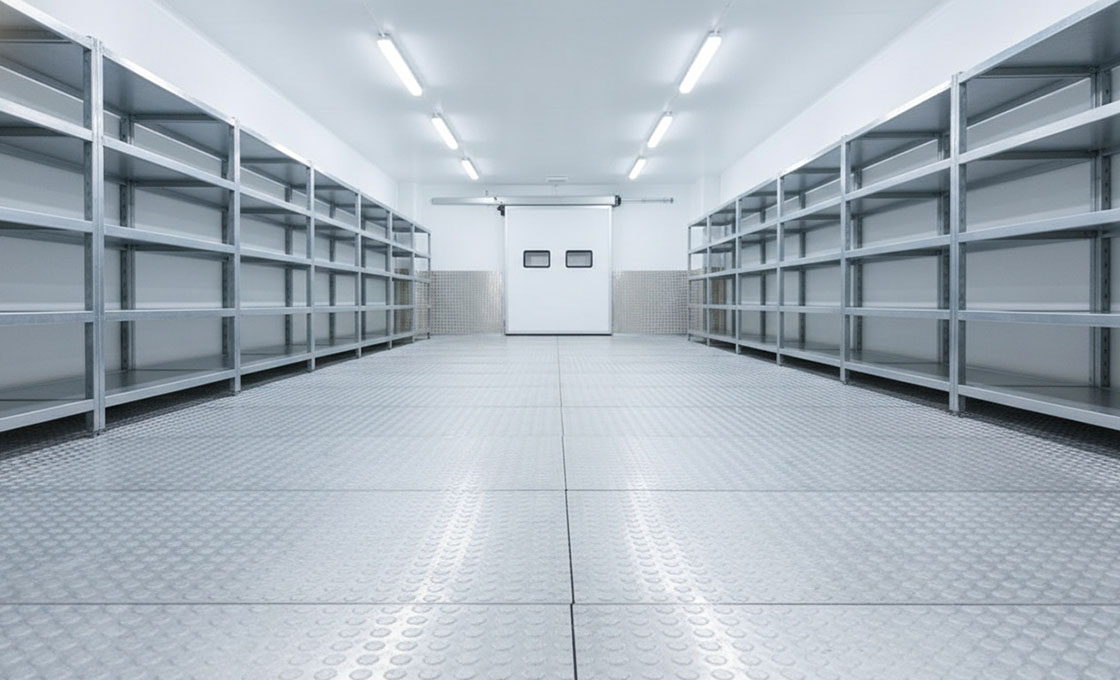

Cold room floor panels combine a high-density polyurethane or polyisocyanurate (PIR) foam core laminated between metal facings of galvanized steel, aluminum, or stainless steel. The three-layer sandwich construction delivers exceptional thermal insulation through the foam’s low thermal conductivity while providing high load-bearing capacity for floor applications.
The panels feature interlocking joints with cam-lock or double tongue-and-groove systems that create airtight, watertight seals during assembly. This joint design prevents thermal bridging and maintains consistent internal temperatures. Surface materials promote hygiene with easy cleaning properties and resistance to moisture and chemicals.
Technical specifications include thicknesses from 60mm to 180mm, foam core densities between 35-55 kg/m³, and CFC/HFC/HCFC-free construction. Certain cores achieve B1 fire-safe classification. Standard widths measure around 1000mm with lengths extending up to 12 meters.
Primary applications include cold storage floors in food processing plants, warehouses, pharmaceutical facilities, and laboratories requiring hygienic, thermally stable surfaces. The modular design enables rapid assembly using integrated locking systems without intermediate connection elements, minimizing installation time and costs while delivering energy efficiency through reduced heat transfer.
Cold Room Floor Panels: Your Supplier for Uncompromised Quality
For facilities requiring precise temperature control, the integrity of your cold room floor is non-negotiable. RaxPanel is a leading manufacturer of custom composite panel solutions, delivering high-performance cold storage systems for projects of all sizes and complexities. With over 20 years of industry experience and a presence in more than 30 countries, we provide refrigeration-insulated and temperature-controlled metal panels that maintain a stable interior environment and protect perishable goods, regardless of external conditions.
Our cold room floor panels are manufactured in-house at our Hebei facility, where we produce over 1500 m² daily using B1 FIRE SAFE CLASS (DIN 4102)-certified, CFC-free polyurethane core materials injected under high pressure between robust steel facings. This controlled process ensures:
- Exceptional thermal insulation
- Superior structural strength
- Airtight performance
These features are key for energy efficiency and product preservation. More than a supplier, we act as your partner, offering comprehensive support from design to delivery. Trust RaxPanel for durable, hygienic, and reliable flooring solutions engineered to meet international standards.
Contact us today: we are proud to offer more than a product—we provide a real solution.
| Parameter | Value |
|---|---|
| Core Material | High-density polyurethane (PUR) or polyisocyanurate (PIR) foam |
| Core Density | 35 – 55 kg/m³ |
| Fire Rating | B1 (DIN 4102) |
| Blowing Agent | CFC-free, HFC-free, HCFC-free (e.g., n-Pentane) |
| Thermal Conductivity (λ) | 0.019 – 0.023 W/m·K |
| Panel Thickness | 60, 70, 80, 100, 120, 150, 180 mm |
| Standard Panel Width | 1000 mm |
| Panel Length | Up to 12000 mm |
| Facing Materials | Pre-painted galvanized steel, stainless steel, aluminum |
| Facing Thickness | 0.5 mm (typical) |
| Joint System | Double tongue-and-groove, Cam-lock |
| Compressive Strength | ≥ 0.2 MPa |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -120 °C |
| Hygienic Properties | Easy to clean, corrosion and moisture resistant |
| Installation | Modular, interlocking, airtight seals |
Cold Room Panel Refrigeration & Thermal Insulation Engineering Guide
Cold room insulated sandwich panels are critical thermal envelope components engineered for commercial walk-in coolers, industrial cold storage logistics, pharmaceutical freezers, and blast freezing tunnels. Formulated with high-density closed-cell PIR/PUR foam ($\lambda pprox 0.019 – 0.022$ W/m·K) and integrated Cam-Lock or tongue-and-groove joint systems, these panels maintain stable sub-zero temperatures down to -40°C while minimizing compressor energy consumption.
💡 Pro Tip: Integrated Cam-Lock Hooks & Dual Butyl Thermal Seals
At RaxPanel, our modular cold room panels feature factory-embedded eccentric metal Cam-Locks. Turning a hex wrench draws panel edges together under high mechanical tension, compressing dual internal elastomeric gaskets to form a vapor-tight seal that eliminates frost formation and cold bridge thermal leakage.
At RaxPanel, our modular cold room panels feature factory-embedded eccentric metal Cam-Locks. Turning a hex wrench draws panel edges together under high mechanical tension, compressing dual internal elastomeric gaskets to form a vapor-tight seal that eliminates frost formation and cold bridge thermal leakage.
1. How to Select Panel Thickness Based on Operating Temperature Ranges?
Selecting incorrect panel thickness leads to continuous compressor overload and ice formation on joint seams. RaxPanel thermal thickness guidelines include:
2. Cam-Lock Modular vs Continuous Tongue-and-Groove Logistics Systems
Modular walk-in coolers utilize internal Cam-Locks for rapid hex-wrench assembly without wet sealants. Large-scale refrigerated distribution warehouses utilize continuous tongue-and-groove PIR panels for long structural spans up to 12 meters.
3. Cold Room Sliding Doors and Floor Anti-Heave Systems
🚪 Sub-Zero Door & Floor Protection:
- Heated Door Frame Gaskets: Heavy-duty sliding/hinged cold room doors integrate perimeter heating wires to prevent rubber gasket freezing.
- Under-Floor Frost Heave Prevention: Freezers built directly on soil integrate ventilation ducts or electric heating mats below the insulation slab to prevent ground frost expansion.
4. Where Are Cold Room Panels Most Commonly Installed?
🥦 Cold Chain Logistics & Distribution Hubs
High-bay automated cold storage warehouses storing fresh produce, meat, and frozen foods.
💉 Pharmaceutical & Vaccine Storage Facilities
Temperature-controlled GSP/GMP certified cold rooms maintaining 2°C to 8°C stability.
5. USDA & HACCP Hygiene Compliance for Surface Facings
Steel facings feature food-safe white antibacterial polyester coating or Grade 304 stainless steel. Non-porous surfaces withstand daily high-pressure washdowns without chemical degradation.
Frequently Asked Questions (FAQS)
1. What cold room panel thickness is needed for a -20°C freezer room?
A 120mm to 150mm PIR panel is recommended for -20°C freezer rooms to achieve optimal thermal U-values (U ≈ 0.15 W/m²K) and prevent compressor overload.
2. How does the Cam-Lock system simplify walk-in cooler assembly?
Embedded eccentric Cam-Locks pull adjacent panels tight using an Allen key, forming a vapor-tight seal without needing external screws or on-site welding.
3. What is the thermal conductivity (λ) of RaxPanel cold room foam cores?
Our closed-cell PIR/PUR foam achieves a thermal conductivity coefficient of 0.019 to 0.022 W/m·K for maximum thermal insulation.
4. Why do cold room door frames require heating cables?
Door perimeter heating cables prevent ambient moisture condensation from freezing door gaskets shut against sub-zero freezer frames.
5. Are RaxPanel cold room panels food-grade USDA compliant?
Yes. Pre-painted steel skins use food-safe anti-bacterial polyester coatings that meet USDA, FDA, and HACCP sanitation standards.
6. How is floor frost heave prevented under freezer slabs?
Under-floor XPS/PIR insulation is installed above sub-slab ventilation pipes or electrical heating cables to prevent soil moisture freezing and expanding.
7. Can modular cold room panels be dismantled and relocated?
Yes. Cam-Lock joined panels can be unlocked with a hex wrench, dismantled without damage, and reassembled or expanded at a new location.
