Cold Room Ceiling Panel

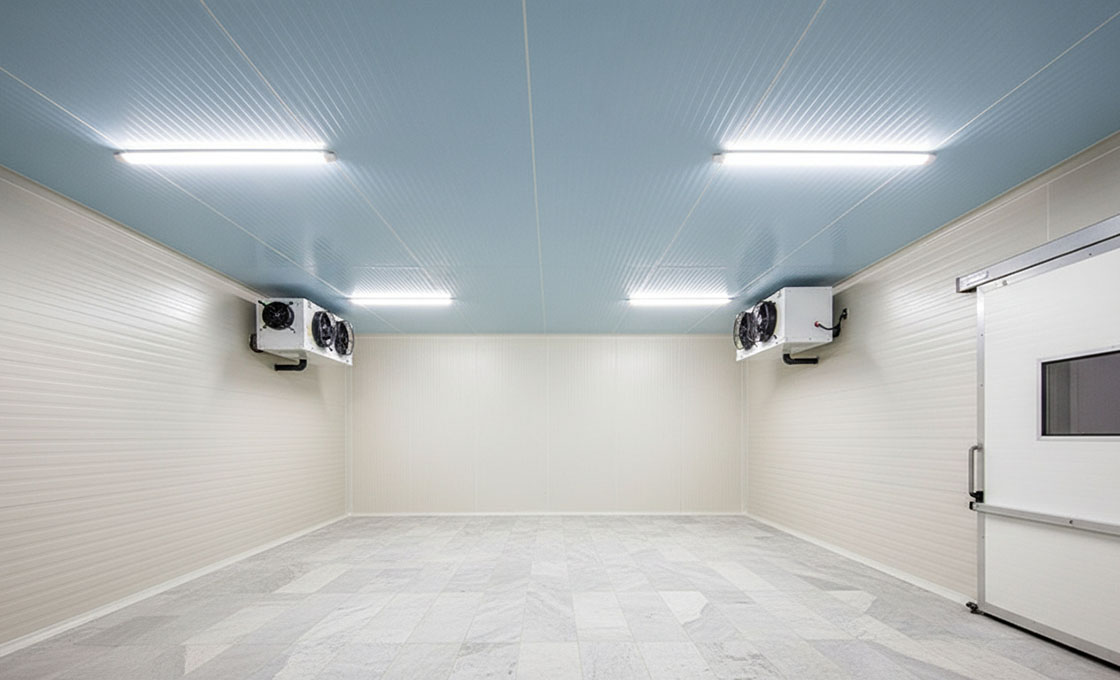

Cold room ceiling panels form the overhead thermal envelope of a refrigerated space, spanning between the walls to carry suspended loads while blocking heat gain from above. Each panel bonds two metal facings—galvanized steel, aluminum, or stainless steel—around a high-density polyurethane (PUR) or polyisocyanurate (PIR) foam core injected under high pressure for uniform density.

A double tongue-and-groove edge with cam-lock fasteners lets panels interlock along their long sides into a continuous, airtight overhead membrane. Deeper core sections raise thermal resistance for freezer and blast-freezer ceilings, while the closed-cell foam resists the condensation that collects on cold overhead surfaces.

Because ceiling panels span open room width without intermediate support, they are engineered to hold their own weight plus suspended lighting, evaporators, and piping, then transfer that load into the perimeter wall system. Standard widths of 960mm or 1000mm with custom lengths simplify layout over steel or concrete structures in food processing, dairy, pharmaceutical, and cold-chain distribution facilities.

Your Trusted Supplier for High-Performance Cold Storage Ceiling Panels

As a cold storage panel manufacturer based in Hebei, China, RaxPanel builds ceiling panels engineered to carry overhead loads while sealing the cold room against heat and moisture. Each panel pairs a high-density polyurethane core with corrosion-resistant steel facings and a cam-lock tongue-and-groove edge, so every panel locks into a continuous, load-distributing overhead envelope.

Ceiling panels span open room width without intermediate support, so we control foam density, facing gauge, and joint geometry to make sure the finished roof holds its own weight plus suspended lighting, evaporators, and piping. Panels are cut to the exact span each room requires, which reduces on-site cutting and keeps the overhead seal tight.

We work directly with cold-chain operators, contractors, and design teams to match panel thickness and load rating to the room’s operating temperature and clear span. Contact RaxPanel to specify ceiling panels that hold up overhead and hold the cold in.

Parameter Value
Panel Thickness 40mm, 60mm, 70mm, 100mm, 120mm, 150mm, 180mm, 250mm
Standard Width 960mm, 1000mm
Panel Length Custom from 2000mm to 12000mm
Core Material High-density rigid Polyurethane (PUR/PIR) foam
Core Density 42 kg/m³
Facing Materials Galvanized steel, Aluminum, Stainless steel
Surface Coatings Polyester, PVdF, Plastisol, Hygienic food-safe finishes
Thermal Conductivity (λ) 0.020 – 0.024 W/m·K
Fire Rating B1 (DIN 4102)
Compressive Strength ≥ 0.2 MPa
Operating Temperature Range -45°C to +80°C
Joint System Double tongue-and-groove, Cam-lock (eccentric lock)
Key Properties Airtight, Watertight, Hygienic, Corrosion resistant, Energy efficient





    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Related Products

    Cold Room Ceiling Panel Engineering Guide & FAQ

    A cold room ceiling works against gravity. Every panel hangs from the building steel, carries its own weight plus evaporators, lighting, and pipe runs, and must stay flat for the life of the room. The engineering questions that decide a successful overhead envelope are span capacity, deflection control, suspension detailing, and the continuity of the warm-side vapor seal where the ceiling meets the walls and where services penetrate it.

    💡 Pro Tip: Cam-Lock Joints Carry the Overhead Seam
    At RaxPanel, our cold room ceiling panels feature factory-embedded eccentric metal Cam-Locks. Turning a hex wrench draws panel edges together under high mechanical tension, compressing dual internal elastomeric gaskets to form a vapor-tight seal — and the locked joint acts as a continuous beam line that shares load between panels overhead.

    1. Span Capacity and Deflection Limits for Overhead Installation

    Ceiling panels span between supporting walls or purlins with nothing beneath them, so unsupported span is governed by deflection, not strength. The accepted serviceability limit for an insulated ceiling is L/200 — a 4.0 m span should not sag more than 20 mm under full dead plus service load. In practice, self-weight governs: the panel must carry its own mass indefinitely without creep, so working stress is kept well below the foam core’s capacity.

    Panel Thickness Typical Max Unsupported Span (L/200) Recommended Hanger / Purlin Spacing
    100 mm up to 3.0 m 1.2 m – 1.5 m
    120 mm up to 3.5 m 1.5 m – 1.8 m
    150 mm up to 4.0 m 1.8 m – 2.0 m
    180 – 200 mm up to 5.0 m 2.0 m – 2.5 m

    Where evaporators or pipe racks add concentrated load, reduce the spacing of hangers beneath that zone rather than increasing panel thickness alone. Panels run perpendicular to the supporting steel so each one bears on at least two supports.

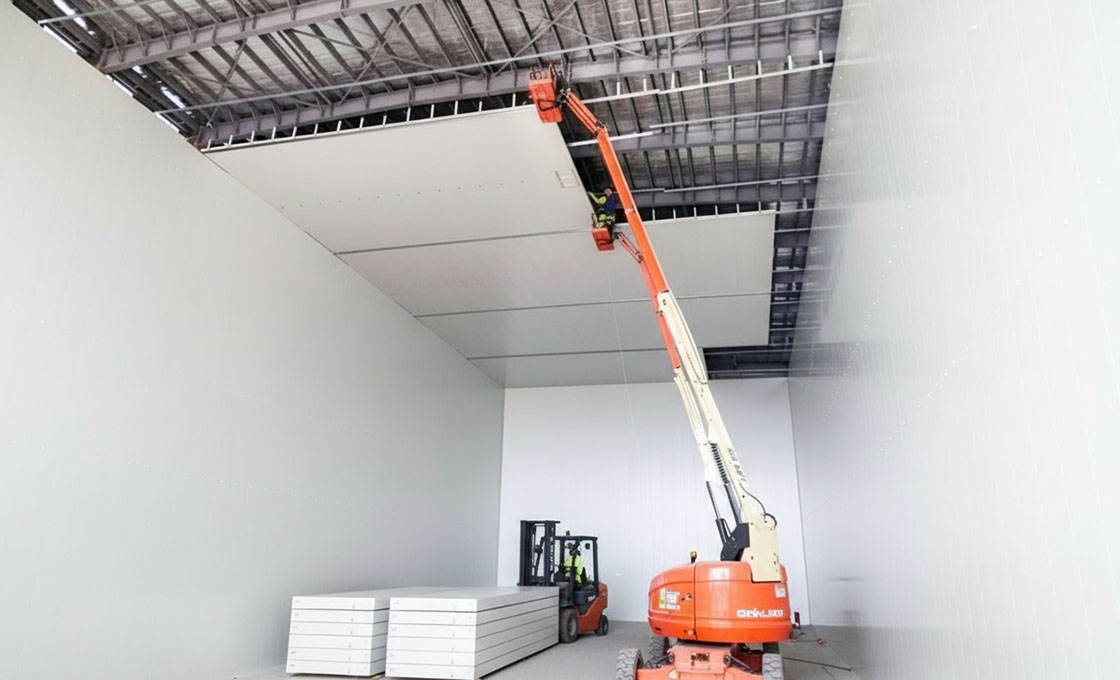

    2. Suspension Systems: Hanger Rods, T-Bar Grids, and Steel Channel Support

    The ceiling transfers its weight to the structure through one of three systems, chosen by span and service load:

    Overhead Support Options:

    • Threaded hanger rods: M10–M12 rods drop from the roof steel to a cleat or angle fixed through the panel’s top skin, set on a 1.2–1.5 m grid for standard spans.
    • Galvanized steel channel: 41×41 or 41×21 strut channel spans between primary purlins and carries the panel edges, used where spans exceed 4 m or services run above the ceiling.
    • T-bar grid: A suspended grid hangs from the structure and the panels lay into it, common for service-heavy processing rooms that need frequent overhead access.

    Every hanger that passes through the envelope needs a sealed penetration (see Section 4). Support cleats fix to the upper facing only — never through-bolt a hanger from the cold face, which creates a direct thermal bridge and a condensation point.

    3. Vapor Barrier Continuity at Ceiling-to-Wall Junctions

    The ceiling-to-wall corner is the single most vulnerable joint in the envelope. Warm, moist air from the room migrates toward the cold overhead surface, and any break in the warm-side seal lets that moisture reach the panel core, where it condenses and freezes. The metal skins are the primary vapor barrier; the joint between them must stay continuous.

    Detail the junction with a continuous bead of low-temperature sealant in the tongue-and-groove before locking, then dress the internal corner with a flexible vapor-tight tape or preformed cove that turns from the wall skin onto the ceiling skin. Keep the joint geometry radiused rather than a hard 90° so the seal can accommodate the small differential movement between the cold ceiling and the warmer wall without cracking. Cam-lock the panels tight before applying the corner seal so the gaskets are already compressed.

    4. Condensation Risk and Thermal Bridge Prevention at Penetrations

    Anything that passes through the ceiling — refrigerant pipes, drain lines, cable trays, lighting, evaporator hangers — is a potential cold bridge. Left unmanaged, the penetration chills the surrounding skin below dew point and drips condensation into the room.

    Penetration Detailing:

    • Pipe and cable penetrations: Keep the hole oversized, fill the annulus with closed-cell foam, and seal both faces with vapor-tight tape or a preformed boot — never a rigid mortar seal that cracks with thermal movement.
    • Lighting: Prefer surface-mounted or shallow recessed LED fittings with sealed housings bonded to the underside, so the fixture does not breach the vapor barrier or the core.
    • Evaporator mounts: Hang the unit from the structure above on independent rods; isolate each bracket from the cold skin with a thermal-break pad so the support steel never touches the panel facing directly.

    5. Ceiling Panel Selection by Room Temperature and Span

    Thickness is set by both the temperature differential and the span. A deeper core raises R-value and stiffness together, so freezer ceilings with wide clear spans move to thicker panels for both reasons.

    Room Temperature Span Condition Recommended Ceiling Panel & U-Value
    +2°C to +10°C chiller up to 3.5 m 100 mm PIR (U ≈ 0.22 W/m²K)
    -18°C to -25°C freezer up to 4.0 m 150 mm PIR (U ≈ 0.15 W/m²K)
    -25°C to -35°C freezer 4.0 m – 5.0 m 180 – 200 mm PIR (U ≤ 0.12 W/m²K)
    -35°C to -40°C blast any span, close hangers 200 – 250 mm PIR (U ≤ 0.10 W/m²K)

    Frequently Asked Questions (FAQS)

    1. What is the maximum unsupported span for cold room ceiling panels?
    Span is governed by the L/200 deflection limit under self-weight plus service load. A 100 mm panel reaches about 3.0 m, 150 mm about 4.0 m, and 180–200 mm up to 5.0 m. Beyond that, add intermediate hangers or a supporting steel channel rather than increasing thickness alone.
    2. How are ceiling panels suspended from the building steel structure?
    Panels lock together with cam-lock joints and perimeter angles to form a rigid diaphragm, then hang from the structure on M10–M12 threaded rods set on a 1.2–1.5 m grid, or on galvanized steel channel that spans between purlins. Hangers fix to the upper facing only and are sized for panel weight plus suspended services.
    3. How do you prevent condensation at ceiling-to-wall junctions?
    Maintain the warm-side vapor seal continuously: bed the tongue-and-groove in low-temperature sealant before cam-locking, then dress the internal corner with a flexible vapor-tight tape or preformed cove turned from wall skin onto ceiling skin. A radiused joint geometry absorbs differential movement so the seal does not crack as the cold ceiling contracts.
    4. What panel thickness is needed for a -25°C freezer ceiling with a 4 m span?
    A 150 mm PIR panel gives U ≈ 0.15 W/m²K and carries a 4 m span within L/200 with hanger support. If the clear span approaches 5 m or heavy evaporators hang from the ceiling, move to 180 mm and tighten the hanger spacing beneath the equipment.
    5. Can evaporator units be mounted directly to ceiling panels?
    No. Evaporator weight and vibration exceed what the panel skin and core should carry. Hang the unit from the structure above on independent rods and isolate each bracket from the cold skin with a thermal-break pad, so the panel carries only its own weight and the air seal.
    6. How is the vapor barrier maintained at pipe and cable penetrations?
    Keep each hole oversized, fill the annulus with closed-cell foam, and seal both faces with vapor-tight tape or a preformed boot rather than rigid mortar. Group refrigerant lines and cables through a single collared plate where possible so there are fewer penetrations to seal.
