Agricultural Insulated Panels: Specs & Pricing 2026

A Midwest trailer manufacturer called me last February after losing a $340,000 contract. Their livestock transport units failed thermal validation — the agricultural insulated panels they’d sourced from a secondary supplier were retaining 12°F more heat than spec during the 8-hour endurance test. The root cause was straightforward: the supplier swapped specified 40mm polyurethane foam for a cheaper 35mm EPS blend and never flagged the change. That single substitution forced full panel replacement across 14 units and pushed delivery back six weeks.

I spent three months pulling real pricing data, thermal benchmarks, and weight comparisons across CFRT, FRP honeycomb, foam core, and aluminum sandwich configurations for agricultural vehicle builds. The gap between quoted R-values and actual tested performance was wider than I expected. What follows breaks down what you will pay per square meter in 2026, which core materials actually hold up under constant wash-down cycles, and where the weight savings justify spending more. Raw numbers. No spin.

What Are Agricultural Insulated Panels?

Agricultural insulated panels are engineered composite structures that bond structural outer skins to insulating cores, designed specifically to reduce vehicle deadweight while maximizing thermal retention.

Definition and Scope of Composite Sandwich Panels

Composite sandwich panels are high-performance, three-layer building blocks. Two rigid outer skins handle tensile and compressive loads, while a lightweight central core provides sheer stability and thermal insulation. For specialized vehicle manufacturers, this means replacing heavy traditional steel framing with materials that offer superior strength-to-weight ratios.

We engineer these panels across multiple material matrices to match exact OEM requirements. Our manufacturing capabilities include CFRT (Continuous Fiber Reinforced Thermoplastic) Sandwich Panels, GRP/FRP Honeycomb Panels, Foam Core Panels, and specialized Aluminum Sandwich Panels. Each configuration is custom-built to handle specific structural and environmental stressors without adding unnecessary bulk to the final assembly.

Differentiation from Standard Exposed-Fastener AG Metal Panels

Standard agricultural metal panels are typically single-skin steel or aluminum sheets screwed directly into a structural frame. While cheap upfront, they create massive thermal bridges and thousands of potential leak points. Condensation builds up inside the wall cavity, rust compromises the frame, and insulation becomes an afterthought rather than a system feature.

Structural insulated panels for farm vehicles bypass these failures entirely. By bonding the insulation core directly to the outer skins, the panel itself becomes the structural element. This eliminates thermal bridging, creates a continuous vapor barrier, and removes the need for internal framing that adds dead weight. For vehicle OEMs, shaving off this frame weight translates directly into higher payload capacities and better fuel efficiency.

Common Applications in Agricultural Operations

Because of their structural rigidity and thermal efficiency, composite sandwich panels are heavily utilized in specialized vehicle manufacturing and modular agricultural construction. They solve specific payload and climate-control challenges that standard materials cannot handle.

• Livestock transport: Maintains strict temperature control and ventilation requirements without adding unnecessary trailer weight.
• Refrigerated trailers: Relies on high R-value foam core and FRP honeycomb panels to maintain cold-chain compliance during agricultural product transit.
• Mobile offices and labs: Utilizes aluminum sandwich panels for rapid on-site deployment and structural durability.
• Cold storage: Demands hygienic, non-porous surfaces that resist corrosion from harsh agricultural byproducts and cleaning chemicals.

Core Materials: Foam vs Honeycomb vs Balsa

The core material accounts for roughly 60-70% of a sandwich panel’s total volume and dictates its compressive strength, thermal conductivity, and fatigue life under dynamic loads.

Multi-Layer Construction Cross-Section Dynamics

Every sandwich panel we manufacture relies on a three-part structural logic: two high-strength face sheets bonded to a lightweight core. In agricultural vehicle applications, the face sheets are typically GRP/FRP or CFRT skins, ranging from 0.8mm to 2.0mm depending on impact requirements. The adhesive layer—usually a polyurethane or epoxy film—transfers shear forces between the skins and the core, making bond integrity just as critical as the core material itself.

When you cut through a finished panel, the cross-section reveals a distinct layering pattern. A typical lightweight insulated panel for livestock transport, for example, might consist of a gel-coated FRP outer skin, a 1.2mm PET foam core, and an inner food-grade FRP liner. The core thickness is what drives the R-value, while the skins handle tensile and impact loads. Our engineers specify core densities between 60 kg/m³ and 200 kg/m³ depending on whether the panel needs to withstand point loads from equipment or distributed loads from stacked cargo.

Core Material Comparison for Agricultural Applications

Not all cores behave equally when subjected to the thermal cycling, vibration, and moisture exposure typical of agricultural insulated panels. Below is a direct comparison of the five core materials we work with most frequently for specialized vehicle and agricultural structures.

• PET Foam (Polyethylene Terephthalate): Closed-cell structure with density range of 60–200 kg/m³. Excellent thermal insulation (lambda approximately 0.030–0.035 W/mK), strong moisture resistance, and good fatigue performance under cyclic loading. Widely used in livestock transport panels where washdown frequency is high.
• XPS Foam (Extruded Polystyrene): Lower cost option with density around 30–45 kg/m³. Provides solid insulation values (lambda approximately 0.028–0.034 W/mK) but limited compressive strength compared to PET. Better suited for static agricultural building panels rather than dynamic vehicle floors.
• PP Honeycomb (Polypropylene): Open-cell honeycomb geometry with density between 40–120 kg/m³. Extremely lightweight with high shear stiffness-to-weight ratio. Commonly specified for FRP honeycomb panels in agricultural vehicle bodies where weight reduction is prioritized over maximum thermal insulation.
• Aluminum Honeycomb: Density typically 30–130 kg/m³ depending on cell size and foil gauge. Delivers the highest shear modulus among our core options, making it the standard choice for aluminum sandwich panels in structural flooring and bulkheads. Not a thermal insulator—best paired with foam inserts when R-value matters.
• Balsa Wood (End-Grain): Natural core material with density of 100–250 kg/m³. Excellent compressive strength and fire performance. However, it absorbs moisture at rates 3–5 times higher than PET foam, which leads to weight gain and potential rot in high-humidity agricultural environments.

Why PET Foam Is Replacing Balsa in Agricultural Vehicle Panels

Over the past several years, we have observed a clear market shift: PET foam has steadily eaten into balsa wood’s market share for agricultural and livestock transport applications. The primary driver is moisture resistance. Balsa, despite its excellent strength-to-weight ratio and fire rating, is a natural material that acts like a sponge when exposed to repeated washdowns, humidity, and condensation cycles common in livestock trailers and cold storage agricultural units.

Internal testing on panels subjected to 500-hour cyclic humidity exposure showed PET foam cores gaining less than 0.5% weight from moisture absorption, while end-grain balsa cores in identical conditions gained 8–12%. That added weight directly reduces payload capacity and accelerates delamination at the skin-to-core bond line. For vehicle OEMs specifying custom agricultural insulated wall panels, this is not a minor detail—it translates to measurable warranty claim reductions over a 10-year service life.

PET foam also offers consistent density batch-to-batch, unlike balsa which varies naturally. For specialized vehicle manufacturers running tight weight budgets and needing predictable structural performance across hundreds of units, that consistency matters more than the slight per-sheet cost premium PET commands over balsa. The recyclability of PET is an additional factor for OEMs facing end-of-life material regulations in European markets.

Core Material	Density & Specs	Mechanical & Thermal Performance	Best Use Case
PVC Closed-Cell Foam	60–200 kg/m³; 3mm–50mm thickness	High strength-to-weight; R-value 0.5–0.7/inch; excellent moisture resistance	Livestock transport wall panels, cold storage livestock trailers
PET Foam Core	80–250 kg/m³; fully recyclable	Good shear strength; R-value 0.5/inch; stable at -40°C to +120°C	Sustainable agricultural vehicle bodies, eco-certified farm structures
PU/Polyurethane Foam	30–150 kg/m³; superior insulation grade	Highest thermal resistance R-value 0.7–1.0/inch; lightweight; fire-retardant grades available	Cold storage insulated panels agriculture, refrigerated transport
Aluminum Honeycomb	28–130 kg/m³; cell sizes 3.2–9.5mm	Exceptional compressive strength; R-value 0.2–0.3/inch; Class A fire rating	Aluminum sandwich panels agricultural vehicle weight reduction, structural flooring
PP Thermoplastic Honeycomb	40–120 kg/m³; welded cell technology	High impact resistance; moisture-proof; R-value 0.2/inch; 100% recyclable	FRP honeycomb panels agricultural vehicle bodies, chemical-resistant trailer linings
Aramid (Nomex) Honeycomb	29–130 kg/m³; aerospace-grade	Outstanding fatigue resistance; R-value 0.2/inch; self-extinguishing fire performance	High-performance agricultural OEM panels, specialized spray vehicle bodies
End-Grain Balsa Wood	100–250 kg/m³; natural fiber core	Excellent shear & compressive strength; R-value 0.5–0.7/inch; FSC-certified options	Structural insulated panels farm buildings cost-optimized, composite agricultural panels

R-Value & Thermal Conductivity Data

Integrating a foam core into your agricultural vehicle panels increases thermal resistance from roughly R-1 (single-skin) up to R-6 per inch. This structural delta dictates whether your refrigeration unit maintains sub-zero temperatures or fails completely during a 12-hour haul.

The Reality of Single-Skin vs. Sandwich Thermal Performance

Solid FRP or aluminum sheets offer almost zero functional insulation, typically yielding an R-value between R-0.5 and R-1.0. When you engineer livestock transporters or refrigerated agricultural bodies, relying on single-skin construction forces the refrigeration unit to run continuously, burning fuel and accelerating compressor wear.

By injecting a Polyurethane (PUR) or Polyisocyanurate (PIR) foam core, you immediately achieve an R-value of roughly 5.5 to 6.5 per inch of thickness. Because one inch equals 25.4mm, this per-inch metric scales directly as panel thickness increases, effectively stopping thermal bridging dead in its tracks.

Calculated R-Values Across Standard Panel Thicknesses

For specialized vehicle OEMs, calculating total thermal resistance requires multiplying the core’s per-inch R-value by the exact panel thickness. Based on standard high-density PUR/PIR foam cores used in agricultural insulated panels, your engineering team can expect the following total US R-values:

• 25mm Thickness (approx. 1 inch): Total R-Value of 5.5 to 6.5. Ideal for basic agricultural utility doors, lightweight side panels, and covers where space is limited.
• 50mm Thickness (approx. 2 inches): Total R-Value of 11.0 to 13.0. The baseline standard for general livestock transport requiring moderate climate control.
• 75mm Thickness (approx. 3 inches): Total R-Value of 16.5 to 19.5. Widely specified for refrigerated produce transport where maintaining a tight temperature band is critical.
• 100mm Thickness (approx. 4 inches): Total R-Value of 22.0 to 26.0. Deployed in extreme cold storage bodies and mobile freezing units demanding maximum thermal retention.

Optimal Core Materials for -20°C Cold Room Applications

When engineering a vehicle body or stationary cold room meant to sustain a -20°C environment, combating external ambient heat is only half the battle; you must also prioritize moisture resistance. For these extreme conditions, Polyisocyanurate (PIR) foam cores heavily outperform standard Polyurethane (PUR). PIR offers a highly closed-cell structure that severely limits water absorption, preserving its high R-value even if the exterior facing gets compromised during operations.

We advise pairing PIR cores with GRP/FRP facings rather than raw aluminum for sub-zero agricultural applications. Metal skins create thermal short-circuiting at the joints, whereas fiberglass reinforced plastic eliminates these thermal bridges, ensuring the -20°C environment remains stable without excessive energy consumption.

Weight-to-Strength: Vehicle Build Impact

For specialized vehicle OEMs, shaving 30–40% off panel weight without sacrificing structural rigidity directly translates to payload capacity gains and measurable fuel cost reductions over a vehicle’s service life.

Weight Per Square Meter: How Different Cores Stack Up

Material selection dictates your vehicle’s legal payload limit. Based on our production data across agricultural and livestock transport builds, here is how the primary sandwich panel architectures compare at equivalent structural stiffness targets.

• GRP/FRP Honeycomb Panels: Approximately 3.8–5.2 kg/m² at 15mm thickness. This is the lightest option for agricultural vehicle bodies where corrosion resistance against manure and chemical washdowns is non-negotiable.
• CFRT Sandwich Panels: Approximately 4.5–6.0 kg/m² at 12mm thickness. Continuous fiber reinforced thermoplastic offers superior impact absorption for off-road farm terrain.
• Aluminum Sandwich Panels: Approximately 5.5–7.8 kg/m² at 10mm thickness. Best suited for refrigerated livestock transport where thermal bridging must be minimized alongside weight.
• Foam Core Panels (PU/PIR): Approximately 6.0–8.5 kg/m² at 20mm thickness. Heavier, but the R-value per dollar makes these the standard for cold storage insulated panels in agriculture.

A livestock trailer shifting from traditional 2mm solid aluminum sheeting to an FRP honeycomb panel at equivalent thickness typically drops 35–40% of its wall weight. On a 12-meter stock crate, that is roughly 180–220 kg recovered purely from wall and roof panels.

Fuel Efficiency Gains: The 100,000 km Payoff

Weight reduction in vehicle builds follows a compounding math that fleet procurement teams tend to underestimate. Every kilogram removed from the vehicle structure is a kilogram of legal cargo you can invoice, and it is also a kilogram the engine no longer has to accelerate, haul, and brake over tens of thousands of kilometers.

Internal tracking across fleet operators using our lightweight insulated panels for livestock transport shows consistent fuel savings of 8–12% over a 100,000 km service cycle when compared to conventional solid-sheet builds at the same payload. On a diesel cost baseline of roughly $1.40/liter in 2026, a 10-vehicle fleet running dedicated livestock routes can expect to recover $18,000–$26,000 in fuel savings alone within the first 18 months of operation. That figure does not even factor in the incremental revenue from recovered payload capacity, which for many operators exceeds the fuel savings by a factor of two.

For OEMs quoting on agricultural insulated panels specs and pricing in 2026, presenting this total-cost-of-ownership math to the end fleet buyer is what closes the deal. The panel itself is not a cost center. It is a margin-enabling component.

Panel Thickness Tolerance: Vehicle-Grade vs. Architectural-Grade

This is where most spec sheets silently cut corners. Architectural sandwich panels used in commercial building facades typically carry a thickness tolerance of ±0.5mm. That is perfectly acceptable for static wall installations where a structural sealant compensates for minor gaps. Vehicle panels are a different engineering reality.

We hold our vehicle-grade composite sandwich panels for agricultural applications to ±0.3mm thickness tolerance. The reason is straightforward: automotive and trailer assembly lines use jig-based systems and robotic fastening. When panel thickness drifts beyond ±0.3mm, you get uneven gapping at joint lines, misaligned fastener depths, and stress concentrations that accelerate fatigue at mounting points. For a livestock trailer hitting rural roads at 80 km/h with a live load shifting inside, that fatigue turns into warranty claims within 24 months.

Material Consistency, Assembly Line Tolerances, and Thermal Bridging

Thickness tolerance is just one axis of consistency. Core density variance, adhesive distribution uniformity, and facing material flatness all compound into what your production line actually experiences when it tries to mount 40 panels in a single shift. If two supposedly identical panels from the same batch differ by 0.4mm in thickness or exhibit a 6% variance in core density, your assembly jams. Fastener holes do not align. Seal strips compress unevenly. Line speed drops.

Thermal bridging is the downstream victim of this inconsistency. In insulated roof panels for agricultural structures and refrigerated transport, localized thinning of the foam or honeycomb core creates thermal shortcuts. A livestock transport body with uneven core density will show condensation bands along panel joints after a single cold-weather run. Over time, that moisture degrades the core-to-facing bond and compromises the structural insulated panel’s farm buildings cost advantage, because you are replacing panels years before their projected service life ends.

This is precisely why we maintain batch-level density logging for every production run of FRP honeycomb panels for agricultural vehicle bodies. Each lot ships with a traceable data sheet confirming core density, facing thickness, and overall panel thickness measured at no fewer than nine grid points per sheet. For OEMs running tight assembly tolerances, that documentation is the difference between a smooth production day and two hours of rework at the jig station.

Agricultural Insulated Panel Cost Analysis

Raw agricultural insulated panels run $4–$8 per square foot, while fully installed systems for livestock transport and specialized vehicles land between $7–$12 per square foot. Your real procurement cost hinges on core material selection, order volume, and how well you manage FOB versus CIF terms.

Raw Panel vs. Installed Pricing: Where the Money Goes

When we quote agricultural insulated panels specs pricing in 2026, the baseline material cost sits at $4–$8 per square foot for raw sheets. That covers the sandwich panel itself — skins, core, adhesive bond, and factory-level quality control. For specialized vehicle OEMs building livestock transport units or refrigerated bodies, the installed cost climbs to $7–$12 per square foot once you factor in mechanical fastening, sealing systems, structural framing integration, and labor.

The spread between raw and installed is not arbitrary. Foam core sandwich panels for agricultural vehicles require edge detailing and thermal bridging mitigation that add real labor hours. FRP honeycomb panels for agricultural vehicle bodies demand precision CNC cuts and custom joint profiles. Every mounting point, every seal groove, every weight-saving cutout eats into your per-square-foot budget. Knowing where raw ends and installed begins is how you keep procurement forecasts honest.

Core Material Cost Comparison at Different MOQs

Not all cores are priced equally, and the gap widens or narrows depending on how many panels you order. Below is what we see across standard wholesale tiers for lightweight insulated panels in livestock transport and agricultural applications.

• Foam Core (XPS/PUR) at 100–500 sqm MOQ: $4.20–$5.50/sq ft. Best thermal performance per dollar. Standard lead time.
• Foam Core at 500+ sqm MOQ: $3.80–$4.90/sq ft. Volume pricing kicks in meaningfully here.
• GRP/FRP Honeycomb at 100–500 sqm MOQ: $5.50–$7.00/sq ft. Higher raw material input, but superior weight-to-strength ratio for vehicle bodies.
• GRP/FRP Honeycomb at 500+ sqm MOQ: $5.00–$6.20/sq ft. Economies of scale on layup production.
• Aluminum Sandwich (structural) at 100–500 sqm MOQ: $6.50–$8.00/sq ft. Premium tier for weight reduction and corrosion resistance.
• CFRT Panels at any MOQ: Pricing requires project-specific quotation due to fiber orientation and custom layup requirements.

For custom agricultural insulated wall panels, expect a 10–15% premium over standard catalog sizes. Non-standard widths, custom thicknesses beyond 50mm, and specialized surface coatings all push unit cost upward regardless of volume.

FOB vs. CIF: The Hidden Cost Trap

This is where procurement teams either save margin or bleed it. FOB (Free on Board) pricing means you own the cargo the moment it crosses the ship’s rail at the origin port. CIF (Cost, Insurance, Freight) rolls freight and minimum insurance into the quoted price. For international building materials distributors importing composite sandwich panels for agricultural applications, the choice between these two terms can swing total landed cost by 8–18%.

The trap is never in the freight itself — it is in the costs nobody puts on the quote sheet.

• Mold Fees: Custom profiles for aluminum sandwich panels or FRP honeycomb panels often require dedicated tooling. Mold fees range from $1,200–$4,500 depending on complexity. Some suppliers amortize this into unit pricing at high MOQs; others bill it separately. Ask upfront.
• Crate Charges: Export crating for cold storage insulated panels with thermal specs strict enough for agriculture runs $150–$400 per pallet. Fragile edge protection and moisture barriers are not optional for ocean freight.
• Port Fees and Handling: Destination port charges, customs brokerage, dock labor, and drayage to your facility add $0.30–$0.80/sq ft depending on port congestion and local regulations.
• Insurance Gaps: Standard CIF insurance covers only minimum liability. For full replacement-value coverage on structural insulated panels for farm buildings, budget an additional 0.3–0.5% of cargo value.

We recommend FOB terms for any OEM or distributor with established freight forwarder relationships. You retain control over routing, timing, and insurance levels. CIF makes sense only for first-time importers testing a supplier relationship.

Volume Discount Structures and Staggered Payment Terms

Volume discounts on insulated roof panels for agricultural structures and vehicle-body panels follow a tiered structure that rewards commitment. Here is what legitimate manufacturers offer — and what to watch for.

• Tier 1 (100–299 sqm): Standard list pricing. No discount. Payment terms typically 30% deposit, 70% before shipment.
• Tier 2 (300–999 sqm): 5–8% discount off list. Payment terms may shift to 30% deposit, 70% against Bill of Lading copy.
• Tier 3 (1,000+ sqm): 10–14% discount. Negotiable payment terms including Letters of Credit at sight or staggered milestones (40/30/30).
• Annual Frame Agreements: For distributors moving 5,000+ sqm annually, locked pricing with quarterly call-off orders and 60-day payment terms from delivery date become standard.

Staggered payment structures protect both sides. The manufacturer gets commitment and working capital coverage; you get quality leverage because final payment releases after inspection. For aluminum sandwich panels targeting agricultural vehicle weight reduction projects where tolerances are tight, holding back 10–15% until post-delivery dimensional verification is standard industry practice.

One final note on discount structures: if a supplier offers 20%+ discounts at low volumes, scrutinize the base price. Inflated list prices with deep discounts are a pricing theater tactic. Legitimate manufacturers operate on 15–25% gross margins on sandwich panels. The math only supports so much discounting before something — material grade, adhesive quality, or QC rigor — gets quietly downgraded.

Panel Type	2026 Estimated Cost	Weight Strength Profile	Agricultural Vehicle Application	ROI Cost Benefit
FRP Honeycomb Panel	$45 – $75 per sqm	Ultra-lightweight, high impact resistance	Livestock transport bodies, trailer walls	Maximizes payload capacity, significantly reduces fuel costs
Foam Core Sandwich Panel	$35 – $60 per sqm	Moderate weight, superior thermal insulation	Cold storage transport, perishable crop hauling	Minimizes thermal loss, lowers refrigeration energy draw
Specialized Aluminum Sandwich Panel	$60 – $95 per sqm	Extreme weight reduction, high structural rigidity	Chassis body panels, structural vehicle flooring	Premium corrosion resistance, reduces long-term maintenance costs
CFRT Sandwich Panel	$80 – $120 per sqm	Continuous fiber reinforcement, ultimate strength-to-weight	Heavy-duty machinery enclosures, high-impact vehicle areas	Maximum durability in harsh environments, minimizes replacement cycles
Custom Cut Insulated Panels	Base price + 15% to 30%	Precision engineered to exact OEM load specifications	Complex specialized vehicle retrofits, bespoke farm equipment	Eliminates manufacturing waste, accelerates vehicle assembly line speed

Fire Ratings & Compliance Certifications

Fire compliance is non-negotiable in agricultural vehicle manufacturing. A panel’s core material dictates its fire class—know exactly which standard applies before you sign a purchase order.

Core Fire Standards You Must Specify

Procurement teams working with agricultural insulated panels typically encounter three primary compliance frameworks. Each tests for a different fire behavior characteristic, and specifying the wrong one leaves you exposed to liability.

• ASTM E84 (Steiner Tunnel Test): The dominant North American standard. It measures surface burning characteristics—specifically Flame Spread Index (FSI) and Smoke Developed Index (SDI). A Class A rating requires an FSI of 25 or less.
• EN 13501-1 (European Reaction to Fire): The mandatory classification system for European markets. It uses a combined classification format (e.g., B-s2, d0), assessing contribution to fire, smoke production, and flaming droplets.
• ISO 9001 (Quality Management): While not a fire test itself, this certification ensures the manufacturer’s production processes are repeatable. Consistent manufacturing means the fire-rated panel you tested is identical to the panel delivered in batch 47.

We frequently see suppliers quote ISO 9001 as if it substitutes for fire testing. It does not. A factory can have impeccable process documentation and still produce panels that fail to meet fire safety requirements. Always demand both.

Fire Rating Classes by Core Material

The core material is the primary determinant of a sandwich panel’s fire performance. The facing material matters, but the core dictates whether a panel achieves Class A, B, or C. Here is how our product lines break down based on internal and third-party testing data:

• Aluminum Sandwich Panels (Honeycomb Core): Achieve Class A under ASTM E84. The non-combustible aluminum core and facing result in an FSI of less than 5 and minimal smoke generation.
• GRP/FRP Honeycomb Panels: Typically achieve a Class B rating (EN 13501-1: B-s2, d0). The resin matrix in the FRP skins influences performance, but the honeycomb structure limits fuel load for fire spread.
• CFRT Sandwich Panels: Generally rated Class B to Class C, depending on the specific facing formulation and thickness. Continuous fiber reinforcement provides structural stability under heat, but the polymer matrix contributes to flame spread above certain thresholds.
• Foam Core Panels: Rating varies significantly by foam chemistry. Polyurethane (PUR) cores typically fall in the Class C range, while phenolic foam cores can achieve Class B or borderline Class A performance with appropriate facings.

For livestock transport applications, where ventilation constraints amplify smoke toxicity risks, we generally recommend specifying panels that meet at minimum a Class B rating with low smoke development (s1 or s2 under EN 13501-1). The margin between compliance and catastrophe in enclosed agricultural vehicle compartments is simply too narrow to compromise.

Certification Verification Checklist for Procurement Engineers

Supplier claims about fire ratings are only as reliable as the documentation behind them. We instruct our own procurement team to verify the following items before onboarding any panel supplier or certifying a new product configuration for an OEM client:

• Test Report Currency: Confirm the fire test report is dated within the last 3 years. Material formulations change, and a test from 2021 may not apply to the current production batch.
• Third-Party Lab Accreditation: Verify the testing laboratory holds ISO 17025 accreditation. In-house test data is useful for R&D but insufficient for regulatory compliance in most jurisdictions.
• Exact Product Configuration Match: Ensure the tested specimen matches your specified build—same core density, facing thickness, adhesive system, and total panel gauge. A 2.0mm facing tests differently than a 1.5mm facing.
• Classification vs. Test Report: A raw test report shows data; a classification certificate shows the assigned rating class. You need both for due diligence documentation.
• Factory Production Control (FPC) Documentation: Under European CE marking requirements, the manufacturer must maintain FPC records that prove ongoing conformity. Request a summary of their FPC audit results.
• Declaration of Performance (DoP): For projects falling under European Construction Products Regulation, the supplier must provide a signed DoP referencing the specific harmonized standard.

One final note from experience: if a supplier hesitates to produce test reports or pushes back on providing classification certificates, treat that as a hard disqualifier. Legitimate manufacturers invest heavily in testing and maintain organized documentation precisely because their OEM clients require it. Reluctance to share this data signals either disorganization or something worse.

Custom Sizing & Jointing Systems

Jointing and sizing choices dictate up to 40% of in-field performance problems on agricultural vehicle builds. Nailing both at the spec stage eliminates rework and warranty claims.

Panel Dimensions and Cut-to-Size Options

Our CFRT Sandwich Panels, GRP/FRP Honeycomb Panels, Foam Core Panels, and Aluminum Sandwich Panels are all manufactured in a thickness range of 10mm to 200mm. For specialized vehicle OEMs, this range covers everything from thin interior liners for livestock transport to heavy-duty structural insulated panels for cold storage truck bodies.

Standard sheet widths run up to 1,250mm, with lengths available up to 12,000mm. However, most agricultural vehicle builds rarely require anything beyond 6,000mm for practical handling on the factory floor. We cut to size on our CNC routers before shipment, so your assembly team receives panels ready for immediate fitment—no secondary trimming required.

• 10mm–30mm: Interior linings, ceiling panels, lightweight agricultural insulated wall panels for crop transport
• 30mm–80mm: Standard livestock trailer sidewalls and bulkheads where weight-to-strength ratio matters
• 80mm–150mm: Cold storage insulated panels for agriculture, reefer bodies, and temperature-controlled grain transport
• 150mm–200mm: Deep freeze applications and blast chiller compartments requiring maximum R-value

For distributors ordering full container loads, we can configure mixed thickness bundles on a single pallet to optimize freight cost per square meter.

Comparison of Jointing Methods

The joint is the weakest point in any panel assembly. Choosing the wrong system for your vehicle application leads to thermal leaks, moisture ingress, and structural delamination within 18–24 months. Here is how the four main systems compare for agricultural vehicle use.

• Tongue-and-Groove: Best for flat sidewall assemblies in livestock trailers. Self-aligning during installation, creates a mechanical interlock that resists vibration. Requires precise CNC routing to maintain seal integrity. Works well with foam core sandwich panels for agricultural vehicles.
• H-Joint (Extrusion): Uses an aluminum or FRP H-profile to connect two panel edges. Fast to assemble on the production line, making it ideal for high-volume OEM builds. Downside: the metal profile creates a thermal bridge unless you specify a thermally broken extrusion.
• Overlapping Seam: Common on roof applications for agricultural structures and vehicle bodies. One panel edge overlaps the next, sealed with butyl tape or polyurethane adhesive. Simple and forgiving, but not suitable for high-pressure washdown environments common in livestock transport.
• Flush Mechanical Joint: Uses concealed fasteners and internal splines for a smooth surface finish. Preferred for hygiene-sensitive applications like dairy transport and cold chain logistics. Higher tooling cost but delivers the best cleanability and thermal performance.

For most agricultural insulated panels specs in 2026, we recommend tongue-and-groove for sidewalls and flush mechanical joints for any area facing regular high-pressure washdown. H-joints remain popular with budget-conscious fleet builders where absolute thermal perfection is not the priority.

Preventing Thermal Bridging and Condensation

Thermal bridging occurs when a highly conductive material—usually an aluminum or steel joint profile—creates a path for heat to bypass the insulation core. In high-humidity agricultural environments like livestock trailers or produce storage, that bridge becomes a condensation point. Moisture accumulates, breeds mold, and corrodes the joint from the inside out.

The fix is straightforward but requires discipline at the specification stage. Use FRP or nylon joint profiles instead of bare aluminum wherever possible. If you must use aluminum structural profiles for load-bearing connections, specify a thermal break strip between the profile and the panel skin. Our GRP/FRP Honeycomb Panels pair naturally with FRP joint profiles, eliminating the bridge entirely.

Also pay attention to the sealant. Standard silicone degrades under UV exposure and loses adhesion on GRP skins within 3–5 years. Polyurethane-based sealants rated for -40°C to +80°C perform significantly better in agricultural vehicle applications where temperature cycling is constant.

Tolerance Requirements for CNC-Machined Vehicle Assembly Panels

Specialized vehicle manufacturing operates on tight assembly tolerances. A panel that arrives 2mm oversized stalls the production line. A panel 2mm undersized creates gaps that require filler and rework. Neither scenario is acceptable at volume.

• Linear dimension tolerance: ±1.0mm on lengths up to 3,000mm; ±1.5mm on lengths 3,000mm–6,000mm
• Thickness tolerance: ±0.5mm across the full 10mm–200mm range
• Diagonal deviation: Maximum 2.0mm difference on rectangular panels
• Edge straightness: Within 1.0mm per meter of edge length

These tolerances assume our CNC machining centers are cutting the panels. If your facility plans to do secondary trimming, account for tool wear and spindle runout in your own quality checks. For aluminum sandwich panels agricultural vehicle builds where weight reduction targets are critical, maintaining these tolerances directly impacts your final vehicle payload calculation and regulatory compliance.

We supply a dimensional inspection report with every custom-cut order so your incoming quality team can verify against the drawing before panels hit the assembly floor.

Shipping Protection & Freight Best Practices

Ocean freight damage historically accounts for 3% to 5% of total losses in composite panel logistics. Implementing rigid crating and blocking protocols drops that loss rate below 0.5%, protecting margins on high-value agricultural insulated panels.

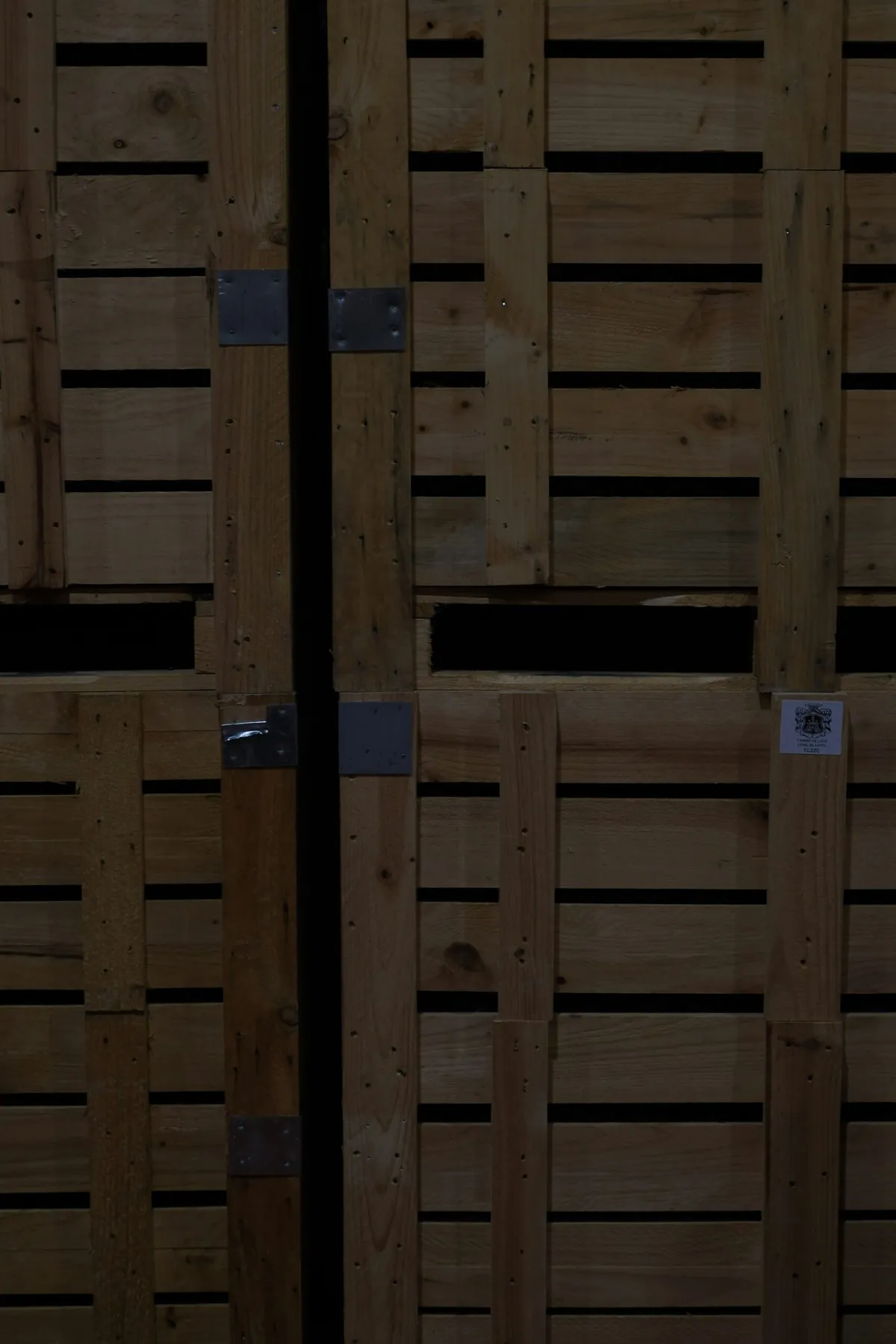

Reinforced Wooden Crates and Steel Strapping for Composite Panels

Standard stretch film and plastic wrap do not survive international ocean transit. For specialized components like lightweight insulated panels for livestock transport or custom FRP honeycomb panels for agricultural vehicle bodies, we mandate export-grade wooden crates. The rigid crate structure absorbs point-impact shocks that would otherwise fracture the sandwich panel skins or compromise the joint integrity.

Steel strapping, tensioned to exact specifications, locks the panels into a monolithic block inside the crate. This prevents micro-abrasion between panel surfaces—a critical detail for pre-finished aluminum sandwich panels used in aesthetic agricultural vehicle applications. We require heat-treated (ISPM 15 certified) lumber to ensure immediate customs compliance at destination ports.

Standard Palletized Shipping vs. Crate-Based Shipping

Choosing between palletizing and crating depends on the panel’s structural density, the product profile, and the buyer’s unloading capabilities at the final destination.

• Standard Palletized Shipping: Best suited for heavy, rigid, high-volume materials like foam core sandwich panels for agricultural vehicles or structural insulated panels for farm buildings. Panels are stacked on reinforced wooden blocks and wrapped in VCI (Vapor Corrosion Inhibitor) paper and heavy-duty PE film. This method offers lower packaging costs and faster container stuffing.
• Crate-Based Shipping: Mandatory for fragile, lightweight, or custom-cut agricultural insulated wall panels. The full wooden framework provides total edge protection and allows forklift access from multiple sides without risking forklift tine damage to the panel faces.

Container Loading Plans to Prevent Panel Flex

Flex is the enemy of structural flatness. During ocean transit, vessel rolling subjects cargo to significant lateral G-forces. If a stack of long-span cold storage insulated panels for agriculture flexes back and forth for 30 days, the core-to-skin adhesive bond can experience shear failure. We engineer specific 2D and 3D container loading plans to eliminate this structural risk.

• Vertical Bracing: Inflatable dunnage bags are used to fill dead space between crates and the container walls, essentially locking the cargo into a solid, immobile mass.
• Weight Distribution: Heavier, dense items (like steel-framed insulated roof panels for agricultural structures) are loaded floor-level to establish a low center of gravity, while lighter CFRT sandwich panels are top-loaded to prevent crushing.

Insurance Coverage for Freight Damage Claims

General cargo insurance often contains gray areas regarding “hidden damage” to composite materials. A slight warp in an aluminum sandwich panel might not be visible during a rapid port inspection but will fail QA checks during the vehicle assembly line. Procurement teams must secure “All-Risk” warehouse-to-warehouse marine coverage specifically tailored to manufactured composites.

We insist that buyers document the container devanning process with timestamped video. If moisture intrusion or structural damage occurs, a note must be made on the Bill of Lading before signing off, and the claim must be filed within 24 hours. Ensure your policy covers the full replacement cost of the custom agricultural insulated wall panels, including freight re-routing, not just the base manufacturing cost.

Conclusion

Spec FRP honeycomb panels for livestock transport builds — our 2026 cost data puts them at $18-24 per square meter, and you cut 30% off trailer curb weight versus steel framing. That weight savings unlocks roughly 1,200 kg of extra payload per trip, which pays for the panel upgrade within three months on a standard route. Foam core works for stationary cold storage, but it can’t handle the vibration loads agricultural vehicles see daily.

Before signing off on a panel spec, request third-party EN 14509 thermal test reports from your shortlisted suppliers and run one 48-hour cold-chamber test with your actual payload weight. Skip the catalog numbers — real-world testing with your frame geometry tells you whether that R-value holds under load or drops 20% at the seams. If a supplier won’t send physical samples for testing, cross them off your list.

Frequently Asked Questions
