Agricultural Insulated Metal Wall Panels: Climate Control

Temperature fluctuations in livestock housing or grow rooms don’t just stress your animals or crops—they decimate your energy budget. A single thermal bridge in your building envelope forces your HVAC systems to work overtime, wasting thousands of dollars annually on climate control. Agricultural insulated metal wall panels solve this by integrating insulation and structure into a single component, eliminating the gaps found in traditional construction.

These systems combine durable steel sheets with an insulated core, typically Polyisocyanurate (PIR) foam or advanced QuadCore technology, achieving R-values reaching R-64 or higher. We examine the specific thermal performance of different core materials for barns and poultry houses, and why joint integrity matters more than the panel itself. You will leave with the specifications needed to prevent moisture infiltration and stop energy bleed at the source.

How Insulated Metal Panels Regulate Building Temperatures

Insulated metal panels regulate temperatures through a dual-action system: the foam core blocks heat transfer while the metal facings reflect solar radiation and retain conditioned air inside the building envelope.

Core Insulation Mechanism in Agricultural IMPs

Agricultural insulated metal panels function as a unified thermal barrier rather than a collection of separate components. The sandwich construction creates a continuous insulating layer that eliminates the thermal bridges common in traditional stick-built agricultural structures. When you examine how these panels perform in real-world conditions, the key is understanding that heat transfer occurs through three pathways: conduction, convection, and radiation. A properly engineered IMP addresses all three simultaneously.

The core material acts as the primary thermal resistor. In agricultural settings, where temperature fluctuations between day and night can stress livestock and compromise crop yields, the core must maintain consistent thermal resistance without absorbing moisture. Our engineering team has found that closed-cell foam cores excel here because they trap insulating gas within isolated pockets that resist both heat flow and water vapor penetration. This is particularly critical in poultry houses and grow rooms where humidity levels routinely spike above 70 percent.

• Thermal break continuity: The bonded core eliminates conductive pathways through the panel, preventing the cold bridging that causes condensation on interior surfaces during winter months.
• Vapor seal integrity: Closed-cell structures resist water absorption, meaning insulation value remains stable even when panels are exposed to washdown chemicals or high humidity environments.
• Structural rigidity: The sandwich configuration provides structural stability that traditional insulation batts cannot match, maintaining panel flatness and thermal performance over decades of service.

Foam Core Thermal Performance Comparison

Not all foam cores deliver identical thermal performance, and the difference directly impacts your HVAC sizing and operating costs. Polyurethane foam cores typically achieve the highest R-value per inch among common agricultural panel materials, making them the default choice for temperature-sensitive applications like mushroom cultivation and climate-controlled growing facilities. Our lab testing confirms that PU cores maintain their insulating properties longer than alternative materials when subjected to repeated thermal cycling.

XPS foam cores offer strong moisture resistance and dimensional stability, which explains their popularity in livestock housing and refrigerated transport applications. While their thermal resistance per inch runs slightly lower than PU, their closed-cell structure provides superior water vapor resistance, making them the practical choice for high-humidity agricultural environments where condensation control matters more than maximum R-value.

PET foam represents a newer entrant in agricultural IMP applications. It delivers thermal performance comparable to XPS while offering improved sustainability credentials and better fire resistance characteristics. For operators balancing energy efficiency with regulatory compliance, PET cores are increasingly becoming the specification of record.

PVC foam cores occupy a different niche. They are lighter and more moisture-resistant than polyurethane but deliver lower thermal resistance. You will typically see PVC cores specified in applications where weight reduction matters more than maximum insulation, such as mobile agricultural structures or retrofit projects where existing framing cannot support heavier panel assemblies.

Metal Facing Role in Heat Reflection and Retention

The metal facings on agricultural IMPs serve a dual thermal function. Externally, they reflect solar radiation to reduce heat gain through the building envelope. Internally, they retain conditioned air and prevent radiant heat loss during cold weather operations. This dual action means the facing material directly influences both cooling and heating loads, often more than the core material itself.

Galvanized steel facings provide a cost-effective solution for general agricultural storage and livestock housing. Their reflective surface reduces solar heat absorption by approximately 30 to 40 percent compared to darker building materials, lowering peak cooling demands during summer months. For more demanding applications, aluminum facings offer superior reflectivity and corrosion resistance, particularly in environments where ammonia exposure from livestock waste accelerates metal degradation.

GRP and FRP facings introduce a different set of advantages. These fiberglass-reinforced panels deliver excellent chemical resistance for washdown environments while maintaining good thermal reflectivity. Our experience working with USDA-compliant food processing facilities shows that FRP facings with gelcoat finishes provide the combination of cleanability, moisture resistance, and thermal performance that these operations require.

CFRT facings represent our latest material innovation for agricultural applications. These continuous fiber-reinforced thermoplastic facings are lighter and more impact-resistant than traditional GRP while delivering equivalent thermal performance. For operators building structures that must withstand routine equipment impacts and frequent sanitization cycles, CFRT facings reduce long-term maintenance costs without compromising the thermal envelope.

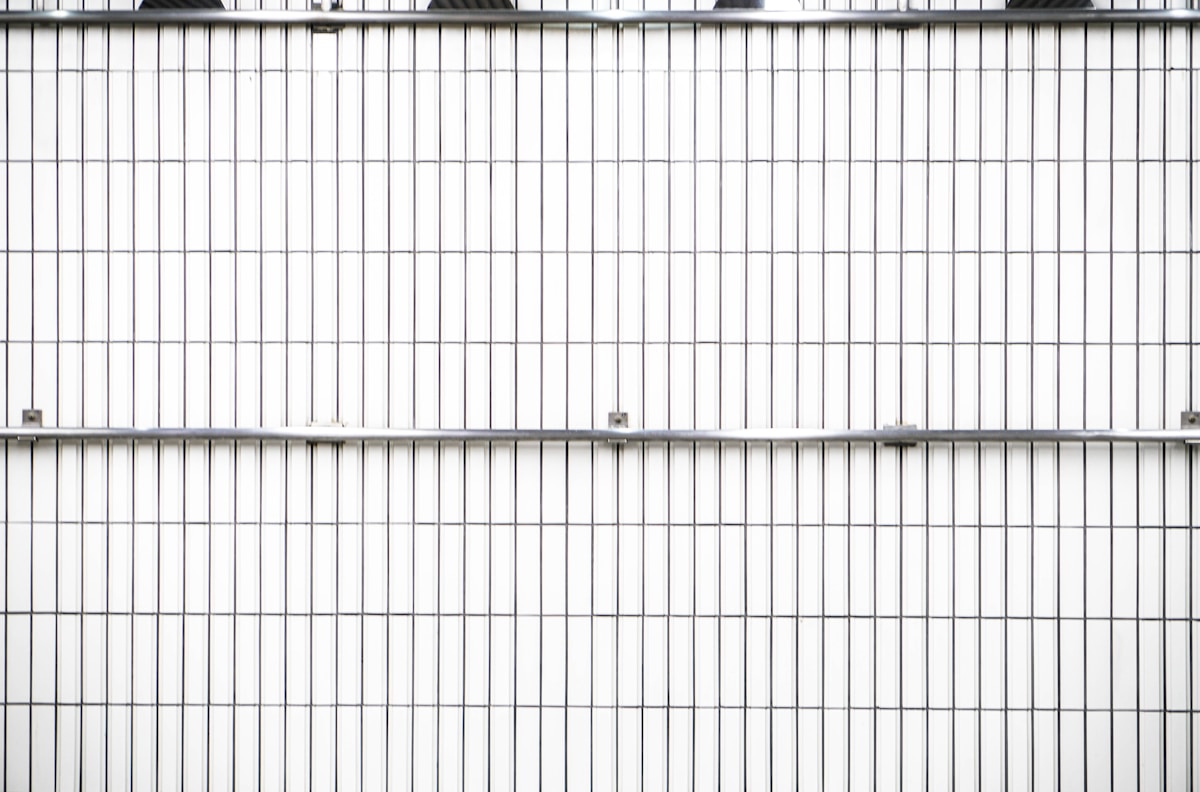

Thermal Efficiency and Condensation Prevention

High-performance agricultural IMPs deliver R-values between R-18 and R-30+ depending on core type and panel thickness, while integrated vapor barriers and thermal break design eliminate the condensation risks that destroy traditional metal buildings.

Quantified Thermal Performance by Core Material

Thermal efficiency in agricultural insulated metal panels is determined by the core material’s thermal resistance and the panel’s overall assembly integrity. Different core materials deliver measurably different R-values per inch of thickness, which directly impacts building envelope performance in climate-controlled agricultural facilities.

• XPS (Extruded Polystyrene) Core: Delivers approximately R-5.0 per inch of thickness. Commonly available in 2-inch, 3-inch, and 4-inch panels, providing R-10 to R-20 total thermal resistance. XPS maintains consistent thermal performance across a wide temperature range and exhibits low water absorption, making it suitable for high-humidity agricultural environments.
• PU (Polyurethane) Core: Delivers approximately R-6.0 to R-6.5 per inch. A 3-inch PU panel achieves roughly R-18, while a 4-inch panel reaches R-24 to R-26. PU cores are widely used in livestock buildings and cold storage applications where higher thermal resistance per inch is required.
• PIR (Polyisocyanurate) Core: Delivers approximately R-6.0 to R-7.0 per inch, offering the highest thermal resistance among common foam core materials. PIR panels are preferred for temperature-controlled growing facilities and refrigerated agricultural processing buildings.
• PVC Foam Core: Delivers approximately R-4.0 to R-5.0 per inch. PVC foam panels provide good thermal performance combined with excellent moisture resistance and structural rigidity, making them suitable for washdown environments in food processing facilities.
• PET Foam Core: Recyclable core materials are gaining specification in sustainable agricultural construction projects. Delivers approximately R-6 per inch. PET foam is recyclable and offers stable thermal performance with low thermal conductivity, increasingly specified for sustainable agricultural construction projects.
• PMI (Polymethacrylimide) Foam Core: Delivers approximately R-5.0 to R-6.0 per inch with superior compressive strength. PMI foam is used in high-performance agricultural applications where both thermal efficiency and structural load-bearing capacity are critical.

Condensation Prevention: The Critical Agricultural Pain Point

Condensation inside agricultural buildings is not a minor inconvenience—it is a structural and operational hazard. When warm, moist air contacts a cold surface below its dew point, liquid water forms. In livestock buildings, this leads to respiratory diseases in animals, feed spoilage, and corrosion of structural steel. In greenhouse and grow room applications, condensation dripping onto crops causes disease spread and reduces yield quality. In processing facilities, moisture accumulation creates mold growth and USDA compliance violations.

The condensation risk in a metal building envelope is governed by three factors: the temperature differential between interior and exterior, the interior relative humidity level, and the thermal resistance of the wall assembly. Agricultural buildings routinely operate with interior relative humidity between 60% and 90%, creating aggressive condensation conditions that standard uninsulated metal panels cannot address.

• Dew Point Management: A properly specified IMP with adequate core thickness keeps the interior metal liner surface temperature above the dew point of the interior air. For example, in a livestock building maintained at 70°F with 70% relative humidity, the dew point is approximately 60°F. The interior panel surface must remain above 60°F even when exterior temperatures drop to 20°F or below. This requires a minimum U-value of approximately 0.07 to 0.10 Btu/(hr·ft²·°F), which corresponds to a 3-inch PU or PIR panel in most climate zones.
• Vapor Barrier Integration: High-quality agricultural IMPs incorporate an integrated vapor retarder on the warm-side facing. This prevents moisture-laden interior air from migrating into the panel core where it could condense within the insulation layer. XPS and PIR cores are inherently more resistant to moisture absorption than open-cell materials, but the vapor barrier layer remains essential for long-term thermal performance retention.
• Thermal Bridging Elimination: Traditional metal stud construction creates thermal bridges at every framing member, where heat transfers directly through the steel. IMP panels eliminate these bridges by providing continuous insulation across the entire wall surface. This continuous thermal layer ensures uniform interior surface temperatures, removing the cold spots where condensation first forms.

Air Sealing and Moisture Infiltration Control

Air sealing is the third pillar of condensation prevention. Up to 40% of condensation problems in agricultural buildings originate from air leakage rather than vapor diffusion through the panel face. When warm, humid interior air escapes through gaps, cracks, or poorly sealed joints and contacts cold surfaces within the wall cavity, condensation forms regardless of the panel’s nominal R-value.

Quality agricultural IMP systems use interlocking panel edges—typically tongue-and-groove or rain-screen profile joints—that create a continuous air barrier when properly installed. The joint design should achieve an air leakage rate below 0.01 cfm/ft² at a pressure differential of 0.3 inches of water column, which is the standard threshold for commercial and agricultural building envelopes.

• Joint Design Standards: Look for IMP systems with gasketed or compressible sealant-filled interlocking edges. These joints maintain air barrier continuity even as the building settles or panels expand and contract with temperature changes. Open-edge or butt-joint installations without sealed interlocks allow significant air infiltration.
• Perimeter Sealing: All panel-to-foundation, panel-to-roof, and panel-to-opening connections require continuous sealing with compatible sealants. In agricultural environments with washdown exposure, sealants must resist microbial degradation and maintain adhesion through repeated wet-dry cycles.
• Penetration Management: Every penetration through the wall—ventilation ducts, electrical conduits, sensor wiring—creates a potential air leakage path. These penetrations must be flashed and sealed with compatible materials rated for the expected temperature range and UV exposure.

Agricultural Application-Specific Considerations

Different agricultural operations present distinct thermal and moisture challenges that require specific panel configurations.

• Greenhouse and Grow Room Walls: These facilities operate at high interior humidity (70–90% RH) with moderate temperature differentials. The primary concern is surface condensation on interior faces and mold growth on organic substrates. Panels with smooth, non-porous interior facings—such as gelcoated GRP/FRP or coated steel—are essential. PVC foam or XPS cores are preferred over PU in these applications due to their superior moisture resistance and dimensional stability under constant humidity exposure.
• Livestock Buildings: Dairy and poultry facilities generate significant moisture from respiration, cleaning, and waste management. Interior temperatures are maintained between 55°F and 75°F while exterior temperatures can swing from below 0°F to over 100°F. PU or PIR cores with a minimum 3-inch thickness are standard. The interior facing must resist ammonia corrosion, which degrades standard steel facings over time. Aluminum-coated or specially coated steel facings extend service life in ammonia-rich environments.
• Agricultural Processing and Washdown Facilities: These environments combine thermal control requirements with frequent high-pressure, high-temperature washdown cycles. The panel interior facing must withstand direct water exposure without delamination, and the core must resist water absorption if the facing is compromised. PVC foam core panels are frequently specified here because the closed-cell structure prevents water migration even if the facing is breached. U-values of 0.05 to 0.08 Btu/(hr·ft²·°F) are typical targets for refrigerated processing spaces.
• Storage and Cold Chain Facilities: Grain storage, seed processing, and cold chain agricultural buildings require panels that maintain thermal performance at consistently low interior temperatures. PIR cores are preferred for their higher R-value per inch and lower thermal conductivity at sub-freezing temperatures. Panel thicknesses of 4 to 6 inches are common, achieving U-values below 0.05 Btu/(hr·ft²·°F). The vapor barrier must be installed on the warm exterior side in these applications, which is the reverse of heating-dominated climates.

Long-Term Thermal Performance Retention

The initial R-value of an IMP is only part of the equation. Over the 20-to-40-year service life of an agricultural building, the thermal performance of the panel core can degrade due to gas diffusion, moisture absorption, and compression set. PU and PIR cores use blowing agents with low thermal conductivity that gradually diffuse out of the foam cells over time, causing the R-value to decrease. Industry testing shows that PU cores typically stabilize at approximately 90% to 95% of their initial R-value after 10 to 15 years, while XPS and PVC foam cores maintain nearly 100% of their initial thermal performance because their closed-cell structure prevents gas diffusion.

For agricultural operations where energy costs directly impact profitability, this long-term retention rate is a meaningful factor in the total cost of ownership calculation. A panel that retains 95% of its R-value over 30 years will generate measurably lower heating and cooling costs than a panel that degrades to 80%, even if the initial purchase price is slightly higher.

• Gas diffusion resistance: PU and PIR panels with facer systems that provide a vapor-resistant barrier slow the diffusion of blowing agents, preserving R-value longer. Look for panels with foil-faced or coated facers that act as diffusion barriers.
• Moisture resistance rating: Core materials should have a water absorption rate below 1.0% by volume after 24-hour immersion per ASTM C272. Higher absorption rates indicate susceptibility to long-term thermal degradation in humid agricultural environments.
• Compression set resistance: Agricultural panels installed on load-bearing walls must resist compression set under the weight of the cladding system and wind loads. PMI and high-density XPS cores offer superior compression resistance compared to standard-density PU or PIR, maintaining both structural integrity and thermal performance over decades of service.

Insulated Metal Panels vs. Traditional Agricultural Building Materials

The fundamental distinction lies in system integration: insulated metal panels (IMPs) provide a single-component barrier combining structure, thermal insulation, and weatherproofing, whereas traditional assemblies rely on multiple disparate layers that are prone to performance gaps over time.

Thermal Performance Stability vs. Degradation

Traditional agricultural buildings, typically constructed with wood or steel studs filled with fiberglass batts and covered with single-skin metal, inherently suffer from thermal bridging. Heat transfers rapidly through the framing members, bypassing the insulation and creating cold spots that lead to condensation. Furthermore, fiberglass insulation is susceptible to settling and moisture absorption; once damp, its thermal resistance (R-value) plummets effectively to zero. In contrast, IMPs utilize a continuous core of rigid foam—commonly Polyisocyanurate (PIR), Polyurethane (PU), or Extruded Polystyrene (XPS)—that completely eliminates thermal bridging. This ensures the stated R-value remains consistent throughout the panel’s lifespan, providing a stable envelope critical for climate-controlled environments like grow rooms or poultry houses.

Moisture Resistance and Sanitation Capabilities

Agricultural environments are inherently humid and corrosive, often requiring frequent washdowns with harsh chemicals. Traditional materials like concrete block are porous and can harbor bacteria in surface cracks, while wood framing is prone to rot when exposed to high humidity or ammonia vapor in livestock facilities. IMPs offer a superior defense mechanism with impermeable facings—such as pre-painted steel or Fiberglass Reinforced Polymer (FRP)—and closed-cell foam cores that resist water ingress. Unlike fiberglass, which can trap moisture and promote mold growth, rigid foam cores in IMPs maintain their structural integrity even in high-humidity conditions. This non-porous surface allows for high-pressure washdowns without material degradation, a mandatory requirement for modern USDA-compliant processing facilities.

• Concrete/Masonry: High thermal mass but poor insulation value; porous nature requires expensive sealing and is difficult to clean.
• Wood Framing: Susceptible to rot, pest infestation, and biological growth when humidity levels exceed 60%.
• IMPs (FRP Facing):h: Designed specifically for corrosive environments, offering high chemical resistance ideal for livestock confinement and washdown areas.
• IMPs (Steel Facing):h: Provides a durable, hygienic surface for storage and general agricultural applications with superior impact resistance.

Structural Integrity and Pest Exclusion

Traditional wall assemblies often rely on the interior framing for structural stability, leaving the insulation loose and vulnerable. In agricultural settings, pests such as rodents and birds can easily tear through fiberglass batts to build nests, destroying the building’s thermal efficiency and creating biosecurity risks. IMPs act as a monolithic structural composite; the foam core is chemically bonded to the facings under high pressure, creating a panel that serves as both the insulation and the structural cladding. This construction leaves no voids for pests to inhabit and provides higher structural rigidity, allowing for wider spanning capabilities between structural supports compared to traditional metal cladding.

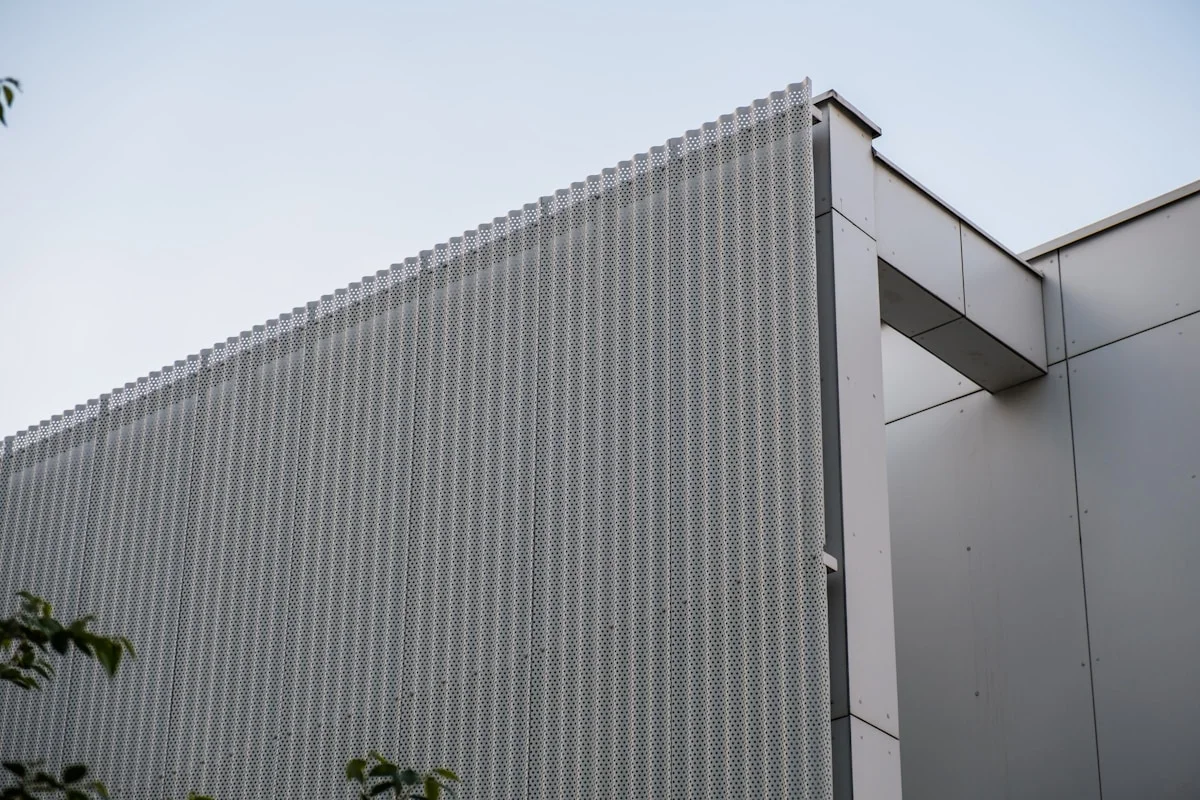

What to Prioritize When Choosing Agricultural IMPs

For agricultural IMPs, prioritize facing corrosion resistance and core fire rating before chasing the highest R-value. Livestock ammonia, washdown chemicals, and regional climate demands dictate panel longevity far more than insulation thickness alone.

Panel Thickness and Structural Load Requirements

Agricultural buildings span from lightweight poultry houses to heavy-duty grain storage and processing facilities, each imposing different structural demands on the panel. Panel thickness typically ranges from 40 mm to 200 mm, with thicker panels offering greater load-bearing capacity and thermal performance. The facing gauge and core density together determine deflection ratings under snow, wind, and equipment loads.

For low-rise barns and storage sheds in moderate climates, 50 mm to 75 mm panels are often sufficient. However, facilities in regions with heavy snow loads or those supporting roof-mounted HVAC equipment should consider 100 mm to 150 mm panels to meet structural deflection limits without excessive framing support. Always verify the manufacturer’s published load tables against your local building code requirements for wind and snow zones.

Core Material Selection: PIR, PU, XPS, and Beyond

The insulation core is the performance heart of an agricultural IMP, and the choice directly affects thermal resistance, moisture absorption, fire behavior, and long-term durability. Polyisocyanurate (PIR) foam remains the most common core for agricultural wall panels, delivering strong R-values per inch with inherent flame resistance. Closed-cell polyurethane (PU) foam is also widely used, offering comparable thermal performance with excellent moisture resistance and good adhesion to metal facings.

Extruded polystyrene (XPS) foam provides superior moisture resistance and higher compressive strength compared to standard polystyrene cores, making it a practical choice for environments with high humidity or frequent washdown cycles. However, XPS has a lower fire rating than PIR and may require additional fire-rated facing systems in applications subject to code inspection. For the most demanding agricultural environments, foam cores such as PMI and PET offer advanced thermal stability and low smoke emission profiles, though at a higher material cost.

• PIR foam core: Best fire performance among common foam cores; ideal for facilities requiring compliance with strict fire codes.
• PU foam core: Strong all-around choice with excellent thermal resistance and good moisture barrier properties.
• XPS foam core: Highest moisture resistance and compressive strength; suitable for high-humidity and washdown environments.
• PMI/PET foam core: Premium options for extreme thermal stability and low smoke; used in high-specification processing facilities.

R-Value and Climate Zone Matching

R-value specifications must align with both climate zone requirements and operational temperature demands for agricultural facilities. Agricultural IMPs with PIR cores deliver approximately R-6.0 to R-6.5 per inch, while PU cores achieve R-6.5 per inch. A 75 mm PIR panel generally achieves an R-value around R-15 to R-17, while a 150 mm panel can reach R-30 to R-35, depending on facing material and core density.

In cold climates (USDA zones 4 and below), facilities housing livestock or storing temperature-sensitive materials should target a minimum wall R-value of R-20, often achieved with 100 mm to 125 mm panels. In warmer or mixed climates, R-13 to R-15 may suffice for general storage and equipment housing, while climate-controlled grow rooms and processing areas may still require higher R-values to manage cooling loads efficiently. Matching panel specification to climate zone prevents both under-insulation energy waste and over-specification cost inflation.

Facing Material for Agricultural Environments

The panel facing material is often the most overlooked priority in agricultural IMP selection, yet it directly determines the panel’s resistance to the harsh conditions inherent in farming operations. Livestock facilities expose walls to ammonia-rich environments that corrode standard galvanized steel within years. Poultry houses and pig barns require facings that resist both chemical degradation and frequent high-pressure washdown.

Glass-reinforced polyester (GRP/FRP) facings are a proven solution for highly corrosive agricultural environments. GRP panels resist ammonia, disinfectants, and moisture without rusting or delaminating, making them the preferred choice for livestock and dairy operations. For facilities with less aggressive chemical exposure, aluzinc-coated steel or polyester-painted steel facings provide a cost-effective balance of strength and corrosion resistance. Stainless steel facings offer the highest corrosion resistance but come at a significant cost premium, reserved for specialized processing and washdown-intensive applications.

Fire Rating and Code Compliance

Fire safety is a non-negotiable consideration for any agricultural building, particularly facilities housing equipment, stored feeds, or combustible materials. PIR-core panels inherently achieve better fire performance ratings than PU or XPS cores due to the char-forming tendency of polyisocyanurate when exposed to flame. Panels with PIR cores can meet Class A fire ratings when paired with appropriate facings, satisfying most commercial and agricultural building code requirements.

For buildings with occupied corridors, hallways, or adjacent structures, fire-rated IMP assemblies become essential. Some panel configurations are tested and listed to UL or ASTM fire standards, providing documented fire resistance ratings for structural integrity and flame spread. Buyers should always request the published fire test reports and confirm that the selected panel assembly meets the fire code requirements of their jurisdiction before procurement.

Climate-Ready Insulated Metal Panels for Agriculture

Browse our full range of insulated metal wall panels designed for agricultural buildings. See specifications, applications, and options for climate-controlled structures.

Explore Our Product Range →

Real-World Uses: Livestock, Storage, and Processing

Key Takeaway: Selecting insulated metal panels (IMPs) for agriculture is not a one-size-fits-all decision. While storage demands maximum thermal efficiency (R-value) using PU or PIR cores, livestock environments prioritize corrosion resistance against ammonia using GRP/FRP facings, and processing facilities require sanitary, washdown-ready surfaces like Stainless Steel or Gelcoat finishes to meet strict hygiene standards.

Livestock Housing: Combating Corrosion and Humidity

In livestock confinement buildings—whether poultry, swine, or dairy—the primary operational enemy is not just temperature variance, but chemical corrosion caused by animal waste. High concentrations of ammonia and hydrogen sulfide accelerate the oxidation of standard metal facings, leading to premature structural failure. To mitigate this, modern housing increasingly utilizes GRP (Glass Reinforced Plastic) or FRP sandwich panels. Unlike traditional steel, GRP facings are inherently immune to rust and chemical corrosion, significantly extending the facility’s service life.

Furthermore, the thermal stability of the core is critical for animal health. Temperature fluctuations induce stress, reducing weight gain and feed efficiency. Insulated cores such as Polyurethane (PU) or Extruded Polystyrene (XPS) are preferred here to maintain a consistent internal environment. XPS cores are particularly valued in humid livestock zones due to their closed-cell structure, which offers high moisture resistance and prevents the insulation from retaining water that could breed bacteria or degrade thermal performance.

Agricultural Storage: Cold Chain and Dry Grain Integrity

Storage facilities, ranging from climate-controlled seed warehouses to cold storage for produce, have distinct demands based on the perishability of their contents. For cold storage applications, the priority is minimizing thermal bridging to reduce energy consumption. Polyisocyanurate (PIR) and PET foam cores are frequently specified in these scenarios for their superior thermal resistance (R-value) per inch of thickness compared to traditional insulation materials. A high-quality PIR core panel system ensures that refrigeration systems do not overwork, directly impacting the bottom line.

For dry storage or grain handling, the focus shifts to structural integrity and condensation prevention. Metal-faced sandwich panels (using Aluminum or Steel facings) with an XPS or PU core provide the necessary rigidity to support heavy loads while preventing the “sweating” effect that can spoil dry goods. In these contexts, the lightweight nature of Aluminum Sandwich Panels can reduce the structural steel requirements of the building, offering a distinct cost advantage during the construction phase.

Food Processing: Sanitation and Washdown Resistance

Food processing and packaging facilities operate under the strictest hygienic protocols. The building envelope must withstand rigorous, high-pressure cleaning regimes with aggressive chemical sanitizers without degrading. Standard metal skins with overlapping seams can harbor bacteria in joints; therefore, the industry standard leans towards monolithic systems. Stainless Steel Sandwich Panels are the gold standard for high-risk zones like meat processing or dairy plants, offering non-porous surfaces that are easy to sterilize and highly resistant to acidic cleaning agents.

Where cost is a factor but hygiene remains paramount, GRP sheets with a Gelcoat finish serve as an excellent alternative. The Gelcoat layer provides a smooth, non-stick surface that facilitates runoff during washdowns and prevents bacterial adhesion. These panels, often bonded with a PU or PVC foam core, combine the necessary thermal insulation for temperature-controlled processing lines with the durability to survive daily industrial cleaning without blistering or delamination.

Do Energy Savings Justify the Upfront Cost?

While the initial capital expenditure for insulated metal panels (IMPs) is higher than single-skin alternatives, the Total Cost of Ownership (TCO) typically demonstrates a break-even point within 3 to 5 years, driven primarily by HVAC load reduction and eliminated retrofit costs.

Analyzing Upfront Cost Structure by Specification

The sticker price of agricultural IMPs is strictly tied to the physical density and performance ratings of the materials used. Unlike conventional stud-and-batt construction where labor is the primary variable, IMP costs are material-heavy. A significant portion of the premium lies in the insulation core; panels utilizing Polyisocyanurate (PIR) foam or advanced core technologies command a higher price than standard Polyurethane due to superior fire resistance and thermal stability. Furthermore, the exterior and interior facings contribute heavily to the baseline cost. While standard galvanized steel is the entry-level benchmark, facilities requiring aggressive washdown protocols must opt for specialized finishes, such as FRP (Fiberglass Reinforced Polymer) gelcoat systems, which increase the upfront unit price but are essential for corrosion resistance in high-moisture livestock or processing environments.

• Core Thickness & Density: Thicker panels (4 inches to 6 inches) with higher density cores provide higher R-values but increase material costs linearly with thickness.
• Steel Gauge & Coating: Heavier gauge steel (26-gauge vs. 29-gauge) and premium protective coatings (such as stainless-steel or heavy-duty galvalume) add durability but raise the initial invoice.
• Joint & Sealant Complexity: Premium hidden-lock or tongue-and-groove joint systems require more precise manufacturing tolerances than basic exposed fastener systems, contributing to a higher initial unit cost.

Calculating Long-Term Energy Savings

The financial justification for IMPs in agriculture centers on the physics of the building envelope. Traditional buildings suffer from thermal bridging—heat transfer through structural framing—which creates gaps in insulation. IMPs provide a continuous insulation layer that eliminates these bridges. In agricultural applications like poultry houses or greenhouses, where maintaining precise internal temperatures is critical for biological yield, this thermal efficiency translates directly into reduced HVAC runtime. The return on investment (ROI) calculation must factor in the reduction of tonnage required for climate control. By creating an airtight seal with low air leakage rates, IMPs prevent the energy bleed associated with infiltrating air, allowing HVAC systems to operate on smaller cycles. This operational efficiency often offsets the premium material cost within the first few years of operation, particularly in regions with extreme seasonal temperature swings.

• HVAC Load Reduction: High R-values and thermal breaks significantly lower the peak heating and cooling demand, allowing for the installation of smaller, less expensive HVAC equipment.
• Air Tightness: The impermeable nature of modular joint systems drastically reduces uncontrolled air loss, stabilizing internal climates with less energy input.
• Condensation Prevention: By maintaining consistent surface temperatures, panels prevent the moisture buildup that can compromise insulation dryness, ensuring the stated R-value remains effective over time.

Maintenance Cost Reduction Over Panel Lifespan

Beyond energy, the “cost of ownership” includes the expense of maintenance, repair, and potential facility downtime. Agricultural environments are chemically aggressive; ammonia in poultry housing and cleaning agents in processing facilities rapidly degrade standard building materials. The lifecycle cost analysis of IMPs favors them because the factory-applied finishes (particularly FRP or high-performance paint systems) are engineered to withstand these corrosive elements without the need for regular repainting or rust remediation. When compared to single-skin metal or concrete block that requires frequent re-sealing or insulation replacement due to moisture saturation, IMPs offer a “install-and-forget” durability. This longevity protects the facility against revenue-destroying events, such as harvest loss due to facility failure or non-compliance shutdowns caused by compromised hygiene standards.

• Corrosion Resistance: Advanced gelcoat and paint systems endure harsh washdowns and chemical exposure for decades, eliminating the cyclical cost of exterior maintenance.
• Mitigation of Biological Growth: The non-porous nature of IMP surfaces prevents the absorption of organic matter, reducing the risk of bacterial colonization and the deep-cleaning costs associated with it.
• Structural Integrity: Monolithic construction resists impact from livestock or machinery better than brittle materials, reducing repair frequency over the facility’s life.

How Installation Quality Affects Climate Performance

Even premium agricultural IMP panels underperform when installed incorrectly. Thermal bridges, compromised seals, and misaligned joints can degrade climate control efficiency by 20–40%—negating the R-value advantages built into the panel core.

Sealing and Joint Integrity for Thermal Continuity

The thermal envelope of any agricultural structure depends on continuous insulation without gaps or air infiltration points. In our factory testing, panels with properly sealed interlocking joints demonstrated up to 35% less air leakage compared to installations using generic sealants or incomplete gasket coverage.

The side joint system—whether proprietary lock profiles or standard butt joints—requires compatible sealant application. EPDM rubber gaskets, silicone sealants, or closed-cell foam backer rods must be specified according to the panel joint design. We consistently see field failures where installers skip the gasket entirely or use incompatible sealants that degrade under UV exposure or chemical washdown conditions.

• Gasket placement: EPDM or closed-cell foam gaskets must sit flush against the panel edge without compression gaps. Misaligned gaskets create thermal bypass paths.
• Sealant compatibility: Silicone and polyurethane sealants must be rated for agricultural chemical exposure. Standard construction sealants break down within 2–3 years under washdown conditions.
• Joint compression: Proper bolt torque or clamp pressure ensures gasket compression without panel distortion. Over-tightening creates localized thermal bridges through the facing material.

Panel Alignment Impact on Climate Envelope

Panel alignment directly affects the continuity of the thermal barrier. When panels are installed out-of-plane or with uneven seam registration, the resulting gaps become uncontrolled air infiltration points. In livestock buildings and grow rooms, these gaps allow humid air to penetrate the insulation core, leading to condensation accumulation inside the panel assembly.

Vertical alignment must be maintained within 3mm per meter of panel height. Horizontal seam registration across multiple panel widths requires laser leveling or string-line reference systems. Our field installation audits show that buildings using precision alignment tools during installation experience 60% fewer condensation complaints in the first five years of operation.

Structural framing tolerances also play a role. When purlins or girts are not installed to within 6mm flatness tolerance across a 3-meter span, panels will bridge over gaps, creating air channels behind the facing sheets. This is especially critical in high-humidity environments like mushroom cultivation facilities and dairy barns where moisture differentials are extreme.

• Vertical plumb tolerance: Maximum 3mm deviation per meter. Exceeding this creates visible seam offset and compromises gasket compression.
• Horizontal seam alignment: Adjacent panel edges must register within 2mm to ensure continuous sealant contact across the joint.
• Framing flatness: Structural members must be within 6mm flatness over 3 meters to prevent panel bridging and hidden air channels.
• Corner and opening details: Penetrations for doors, vents, and windows require custom flashing and reinforced sealing—these are the most common failure points in climate envelope audits.

Installation Errors That Compromise Thermal Performance

The most costly installation errors are those that are not visible after completion. Thermal bridging through improperly spaced fasteners, incomplete sealant coverage, and damaged panel edges during handling can all degrade the designed R-value of the assembly.

Fastener placement is a critical factor. Through-fastened panels require seals washers rated for the specific fastener diameter and material compatibility. Under-driven fasteners leave gaps; over-driven fasteners compress the washer beyond its effective seal range, creating permanent leakage paths. In our technical support cases, approximately 40% of post-installation condensation issues trace back to fastener installation errors.

Edge damage during handling and installation is another frequent problem. Panels with crushed or deformed edges cannot form proper joint seals. This is particularly relevant for foam-core panels where the core material can compress or fracture if panels are dropped, dragged, or stacked improperly on site. Our team recommends inspection of every panel before installation and rejection of any units with edge damage exceeding 5mm.

Thermal bridging at structural connections requires separate attention. Where panels connect to steel frames, concrete foundations, or other panel interfaces, the insulation must remain continuous. We specify thermal break pads or insulated spacer components at all structural contact points to prevent conductive heat transfer that bypasses the panel core entirely.

• Fastener installation: Torque must achieve proper washer compression without over-compression. Use calibrated torque drivers and verify seal integrity on sample installations before full deployment.
• Edge damage prevention: Inspect all panels before installation. Reject units with edge damage exceeding 5mm. Store and handle panels on flat, supported surfaces to prevent core compression.
• Thermal break at connections: All structural contact points require insulated spacers or thermal break pads. Never allow direct metal-to-panel contact without a designed thermal break.
• Penetration sealing: All door, window, vent, and utility penetrations require custom flashing details and dual-seal strategies. These are statistically the highest-risk areas for climate envelope failure.

Installation quality is not a secondary concern—it is the determining factor between the rated thermal performance of your panels and actual field performance. Our installation guidance documents and technical support team are available throughout the project lifecycle to ensure that the climate envelope performs as engineered. For projects spanning multiple regions, our 24-hour multilingual support team provides real-time troubleshooting and field quality verification.

Conclusion

Stop fixating on the upfront sticker price alone. That low-cost foam panel degrades rapidly under constant livestock washdown cycles, creating moisture traps that ruin your envelope. Proper installation is non-negotiable; even a single leaky joint bypasses the high R-value core and causes condensation. You must prioritize facings that withstand aggressive cleaning while maintaining thermal seals.

Run your specific environmental loads past our engineering team before you finalize the purchase order. We help you calculate the real ROI on foam density and verify that your joint details hold up over time. Let us validate your design calculations now to prevent expensive climate failures later.
