Guide to refrigerated truck body panels

Most procurement specifications for refrigerated truck body panels look identical on paper, yet failure rates in the field vary wildly. That discrepancy usually comes down to what you can’t see—specifically, the adhesive bond line and foam density consistency. Advanced manufacturing processes can achieve thermal conductivity as low as 0.022 W/m·K, but that efficiency collapses the moment the core separates from the skin during transit.

We are going to look past the marketing fluff and examine the structural physics that actually dictate service life. This guide covers the specific engineering tolerances required to prevent delamination during vibration, compares the long-term moisture resistance of XPS versus PU cores, and outlines how facing materials impact total payload capacity. You will leave with a checklist for specifying panels that pass health inspections five years from now, not just on day one.

Defining Thermal Performance Baselines

Static R-value is a laboratory snapshot, while the dynamic K-factor dictates real-world fuel efficiency. Over a 10-year service life, thermal cycling can degrade foam performance by up to 15% if core density is compromised.

In the refrigerated transport sector, thermal performance is often reduced to a single R-value number, but this metric is insufficient for rigorous engineering. R-value (Thermal Resistance) is a static measurement of a material’s ability to resist heat flow at a specific temperature, typically measured in a lab setting at 24°C mean temperature. However, a refrigerated truck body operates in dynamic environments, facing external extremes from -30°C to +50°C. The K-factor (Thermal Conductivity), represented by the Greek letter lambda, is the intrinsic property of the material that determines how much heat passes through it per unit of thickness. Unlike R-value, K-factor changes with temperature, humidity, and the age of the insulation.

Distinguishing Static R-Value vs. Dynamic K-Factor

The primary distinction lies in application. Static R-value is useful for calculating total thickness requirements, but it assumes the insulation properties remain constant. In reality, the K-factor of polyurethane (PU) foam is not linear; as the temperature drops, the gas within the foam cells condenses, altering conductivity. Relying solely on a high R-value without considering the material’s K-factor curve can lead to undersizing the refrigeration unit (TRU), resulting in higher fuel consumption or cargo loss.

Impact of Adiabatic Cycling on Long-Term Retention

Thermal retention is not a one-time event; it is a battle against entropy over the vehicle’s lifespan. Adiabatic cycling refers to the repeated expansion and contraction of foam cells caused by the drastic temperature fluctuations during loading, unloading, and transit. This physical stress, combined with vibration, causes micro-fractures in the cell walls. Over time, these fractures allow the blowing agent (the gas that provides the insulation value) to diffuse out of the panel and be replaced by air, which has a significantly higher thermal conductivity. This process, known as ‘thermal aging,’ can reduce the insulation performance of a standard panel by 10% to 15% within the first five years of service.

To mitigate this, core selection is critical. While Polyurethane (PU) is common, PET foam generally exhibits better resistance to thermal aging due to its thermoplastic nature and superior gas retention properties. At our facility, we utilize continuous lamination processes with strict density controls—ensuring our PU and XPS cores maintain cellular integrity under stress. By engineering for dynamic conditions rather than just static tests, we ensure that the thermal baselines established at delivery remain consistent throughout the truck’s operational life.

Critical Structural Failure Points

Structural failure in composite panels typically begins at the molecular bond line between the facing and core, often triggered by cumulative vibration fatigue before any visible damage appears.

Causes of Panel Delamination in Transit

In the harsh environment of logistics, delamination is rarely caused by a single impact event. Instead, it is usually the result of bond-line degradation caused by high-frequency vibration fatigue. When a truck travels over uneven roads, the constant flexing creates shear stress between the rigid outer skin and the core. If the adhesive used lacks sufficient elasticity or tensile strength, this repetitive stress will cause the skin to separate from the core, compromising the structural integrity of the entire box body.

Thermal cycling exacerbates this issue significantly. As the internal and external temperatures fluctuate during operation, the GRP or FRP facings and the foam core expand and contract at different rates. This differential movement places immense pressure on the adhesive layer. Inferior manufacturing processes often fail to account for these thermal stresses, leading to micro-cracks in the bond line that eventually propagate into full-scale peeling, particularly in panels utilizing XPS or PU cores where surface preparation is critical.

Preventing Moisture Intrusion and Structural Rot

Moisture intrusion is the silent killer of composite panel longevity, leading to core saturation and subsequent rot in any organic components. While the core materials like XPS, PET, and PU are inherently resistant to water absorption, the weak points are always the joints, fastener holes, and panel edges. If these interfaces are not perfectly sealed during assembly, capillary action can draw water into the laminate. Once inside, trapped moisture can freeze and expand, physically bursting the bond line and delaminating the panel from the inside out.

To combat this, the integrity of the outer facing is paramount. FRP sheets with a high-quality gel coat serve as the primary waterproof barrier. However, if the gel coat is too thin or improperly cured during production, it becomes brittle and prone to micro-cracking. These micro-fractures allow water to permeate the fiberglass laminate, leading to blistering and eventually weakening the panel’s structural stiffness.

Our manufacturing protocols address this by utilizing FRP sheets with a consistent, industry-standard gel coat thickness that acts as a robust monolithic shield. We subject our panels to rigorous humidity and water spray tests to simulate years of service in wet environments. This ensures that the bond between our specialized facings and the insulation core remains impervious to water ingress, preventing the structural rot that plagues lower-quality assemblies.

Comparing PU and PET Core Insulation

Selecting the correct core material is the single most critical determinant of long-term cold chain efficiency, balancing thermal performance against regulatory compliance and total lifecycle costs.

When specifying insulation for refrigerated transport or specialized construction, the choice between Polyurethane (PU) and Polyethylene Terephthalate (PET) foam cores goes beyond simple R-value comparison. While both materials serve as effective thermal barriers, their chemical structures dictate distinct performance behaviors under operational stress. PU, a thermoset plastic, has historically dominated the market due to its closed-cell structure which provides exceptional resistance to moisture absorption and gas permeation. Conversely, PET, a thermoplastic, has gained traction not merely as an alternative, but as a strategic solution for operators prioritizing structural rigidity and end-of-life recyclability over pure thermal minimization.

Operational Temperature Profiles

For deep-freeze logistics where maintaining a consistent -20°C internal environment is non-negotiable, PU cores are generally the superior choice. Their lower thermal conductivity significantly reduces the energy load on refrigeration units during transient phases, such as door openings. However, PET cores exhibit remarkable stability in multi-temperature applications. In our experience with diverse cold chain fleets, PET offers a distinct advantage in environments where thermal cycling—shifting frequently between chilled and ambient temperatures—occurs regularly. The material’s higher rigidity helps maintain panel flatness, preventing the minor warping that can sometimes occur in PU panels under extreme thermal expansion.

Sustainability and Regulatory Compliance

The industry is witnessing a decisive shift toward circular economy models, particularly in the European and North American markets. PU panels, while cost-effective, present a significant end-of-life challenge because the cross-linked structure cannot be remelted or easily reprocessed. PET addresses this ‘green’ compliance gap directly. As a 100% recyclable thermoplastic, PET cores allow for full recovery of materials at the end of the vehicle’s service life, aligning with stringent corporate sustainability goals and reducing landfill liabilities. We have observed that manufacturers targeting ‘green building’ certifications or government contracts involving eco-mandates are increasingly migrating to PET solutions to future-proof their assets against upcoming environmental legislation.

Rax Panel mitigates this risk through dedicated engineering trials for every composite configuration. With over 15 years of production experience, our team understands that the ‘sweet spot’ for panel longevity lies in the precise marriage of core chemistry and facing material. Whether our clients prioritize the payload-maximizing lightweight nature of PU or the structural stiffness of PET, our facility utilizes advanced continuous production lines to ensure consistent lamination quality, eliminating the weak points often found in batch-processed panels.

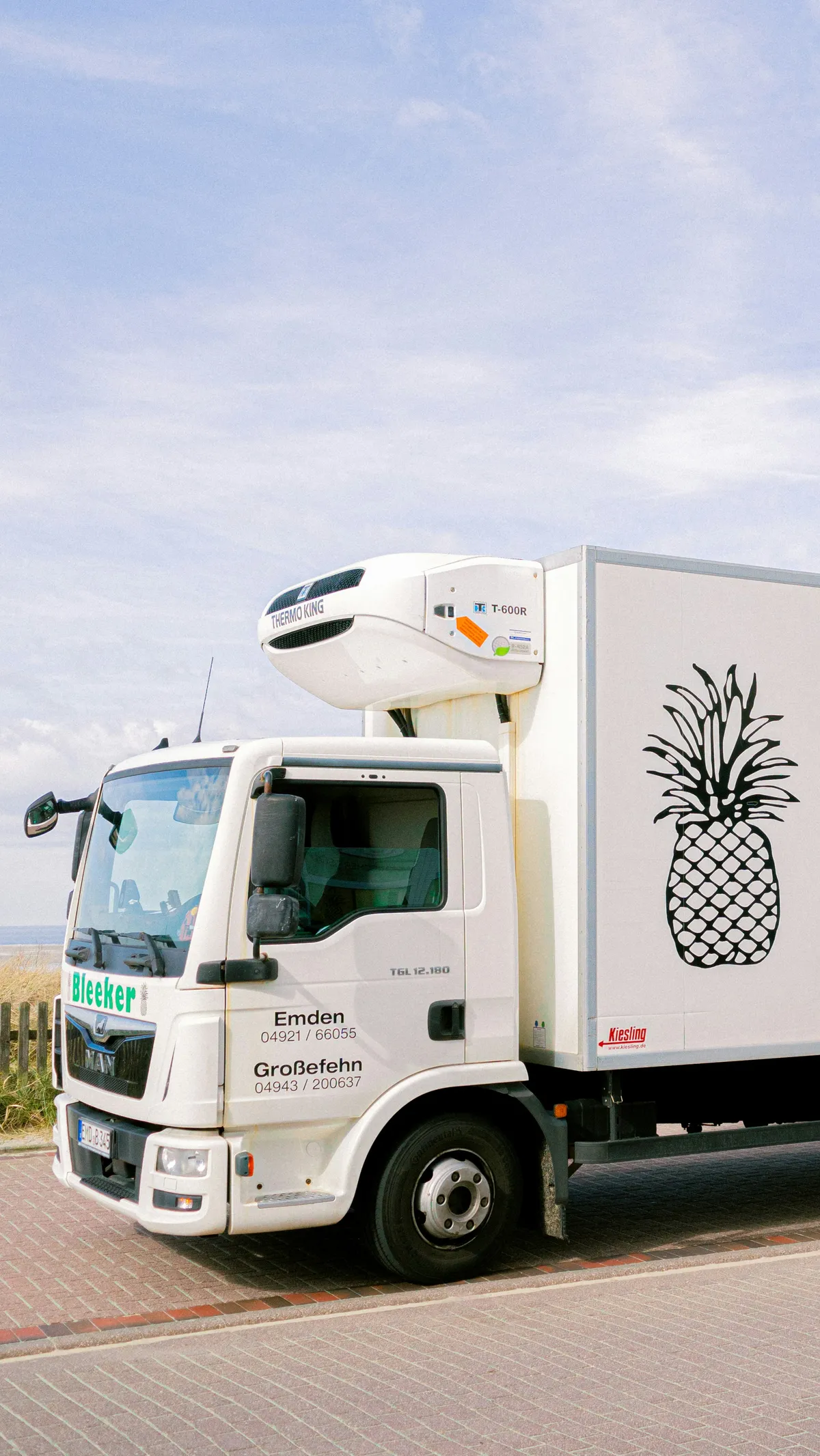

Balancing Insulation Thickness with Payload Capacity

The critical metric for fleet profitability is not simply thermal resistance, but the strength-to-weight ratio. Unnecessary insulation thickness is essentially unpaid cargo space that reduces long-term ROI.

In the refrigerated transport sector, there is a persistent misconception that thicker panels invariably deliver better performance. While thickness contributes to thermal resistance, it simultaneously increases the vehicle’s tare weight. For logistics operators, every kilogram added to the truck body structure directly subtracts from the revenue-generating payload capacity. The engineering challenge lies not in maximizing thickness, but in achieving the required thermal envelope using the least amount of mass possible.

The Economic Penalty of Over-Insulation

Adding insulation mass creates a compound cost effect. Heavier bodies require more fuel to accelerate and maintain speed, and they reduce the total weight of goods that can be hauled per trip. For long-haul fleets operating on thin margins, an over-specified body that is 10% heavier than necessary can translate into significant annual revenue loss. The goal is to hit the precise thermal compliance required by the cargo—whether frozen or chilled—without the structural bloat that eats into payload efficiency.

Advanced Materials for Weight Optimization

This is where the selection of core and facing materials becomes decisive. Traditional solutions often rely on thicker layers of standard foam to meet insulation standards. However, we utilize advanced composites such as CFRT (Continuous Fiber Reinforced Thermoplastic) and PP Honeycomb structures to provide exceptional stiffness and impact resistance at a fraction of the weight. By integrating these high-strength facings with efficient foam cores like PET or XPS, we can often reduce the total panel thickness while maintaining structural integrity and thermal stability. This approach allows our clients to maximize legal payload limits without risking cargo spoilage or panel failure.

Explore our lightweight foam core sandwich panels for refrigerated trucks.

Find detailed specs on various core materials and structural benefits for your vehicle bodies.

Browse Our Showroom →

Evaluating Adhesion Integrity and Vibration Resistance

The Physics of Vibration Fatigue

Static tensile strength means nothing on a potholed highway. When a refrigerated truck hits uneven pavement, the sandwich panel undergoes dynamic flexing. This movement creates shear stress at the interface between the facing material and the insulation core. If the adhesive lacks sufficient elongation or shear modulus, micro-cracks form. Over time, these cracks propagate, leading to delamination. This failure compromises the structural stiffness of the box body and creates thermal bridges that devastate insulation efficiency.

Critical Evaluation Metrics

With over 15 years of manufacturing experience, we treat adhesion as a structural science, not just a glue application. Our engineering team conducts rigorous experimental testing to match specific adhesive formulations with our diverse range of cores, including XPS, PU, and PET. We ensure that whether we are producing GRP sandwich panels for RV walls or lightweight foam core panels for truck bodies, the bond line maintains elasticity and strength under the rigorous vibration profiles of international transport.

Regulatory Compliance and Hygiene Standards

In global cold chain logistics, regulatory compliance is the gateway to market entry. A single failed hygiene inspection or fire safety violation can shut down a fleet, making verified certifications the most critical component of any specification sheet.

For B2B buyers in the refrigerated transport and RV sectors, regulatory adherence is not merely a paperwork exercise; it is a fundamental risk management strategy. The core challenge lies in the variability of international standards. A foam panel that meets building codes in one region may be strictly illegal for vehicle interiors in another due to toxicity and flammability concerns. With over 15 years of manufacturing experience and a supply chain spanning 50+ countries, we have engineered our composite solutions to satisfy these divergent demands, ensuring your fleet remains operational across borders.

Fire Safety and Flammability Ratings

The most frequent regulatory bottleneck involves fire safety. Many low-cost manufacturers optimize foam cores for R-value while neglecting flame spread indices. We strictly avoid this shortcut. Our engineering team formulates PU, PET, and XPS cores to meet rigorous transportation standards, ensuring they do not emit toxic smoke or propagate flames rapidly. We design our panels to pass critical tests such as FMVSS 302 (USA) and DIN 4102 (Europe), which are non-negotiable for vehicle registration. Relying on generic “fire-retardant” labels is a liability; our lab tests provide the specific data required for customs clearance and insurance underwriting.

Hygiene Protocols and Food Contact Safety

In applications involving perishable goods, the internal surface of the panel acts as a sanitary barrier. Standard metal skins can corrode, and untreated wood faces can harbor bacteria, leading to failed health inspections. We address this by utilizing GRP/FRP facings finished with a high-performance gelcoat. This layer is non-porous and chemically inert, creating a seamless surface that is easy to clean and sanitize. Our production process ensures these surfaces comply with FDA and EU food contact regulations, preventing chemical leaching and supporting HACCP compliance systems for food transporters.

• Material Traceability: We maintain full traceability of raw materials, ensuring all resins and foams used in our daily 1,700+ square meter output meet REACH and RoHS environmental standards.
• Surface Integrity: Our gelcoat finishes are tested for resistance to deep-cleaning chemicals, ensuring the hygienic barrier does not degrade over the vehicle’s lifespan.
• Global Homologation: Our technical team assists in securing the rigorous certification dossiers required for specific markets, bridging the gap between manufacturing data and local legal compliance.

Advanced Customization Options

Optimizing composite panels for specific transport requirements is not merely an aesthetic choice but a critical calculation balancing thermal efficiency against payload capacity.

Tailoring Panel Thickness for Specific Truck Models

Determining the correct panel thickness requires a precise analysis of the cargo type and operational environment. For refrigerated transport maintaining deep-freeze temperatures, engineers often specify thicker cores, such as PU or PET, to maximize the R-value and minimize thermal bridge risks. Conversely, dry freight bodies prioritize maximum internal volume and lower tare weight, often utilizing thinner, high-strength honeycomb or XPS configurations to maximize cubic capacity.

Selecting Specialized Facings for Impact Resistance

The external facing serves as the primary shield against physical damage and environmental corrosion. While aluminum facings offer a lightweight solution, they are susceptible to denting from frequent loading impacts. GRP (Glass Reinforced Plastic) facings provide superior resilience against impact and vibration, maintaining structural integrity under rough handling conditions. Additionally, stainless steel options are available for high-wear areas or environments requiring extreme chemical resistance.
