Most facility planners underestimate how quickly a poorly specified enclosure turns into a compliance nightmare. A modular cleanroom is a pre-engineered containment vessel built from precision-fabricated panels that lock together to control particle migration and pressure differentials. Engineering teams routinely blow validation budgets by ignoring basic thermodynamics during the framing phase. At Rax Panel, we track this closely because commissioning data confirms that PIR sandwich panels maintain an R-value of approximately 6.5 per inch while resisting moisture absorption, which directly lowers the mechanical cooling load required to hit your target temperature and humidity setpoints. You cannot optimize your kWh/sq ft consumption without treating the wall system as the primary thermal barrier.
The next sections examine structural integration, airflow dynamics, and a strategic selection framework tailored to your ISO requirements and total cost of ownership targets. You will see exactly how panel configuration, connection hardware tolerances, and ceiling grid routing dictate your air changes per hour and validation overhead. Understanding these variables gives you a clear decision matrix to protect your budget and keep production schedules on track.
Table of Contents

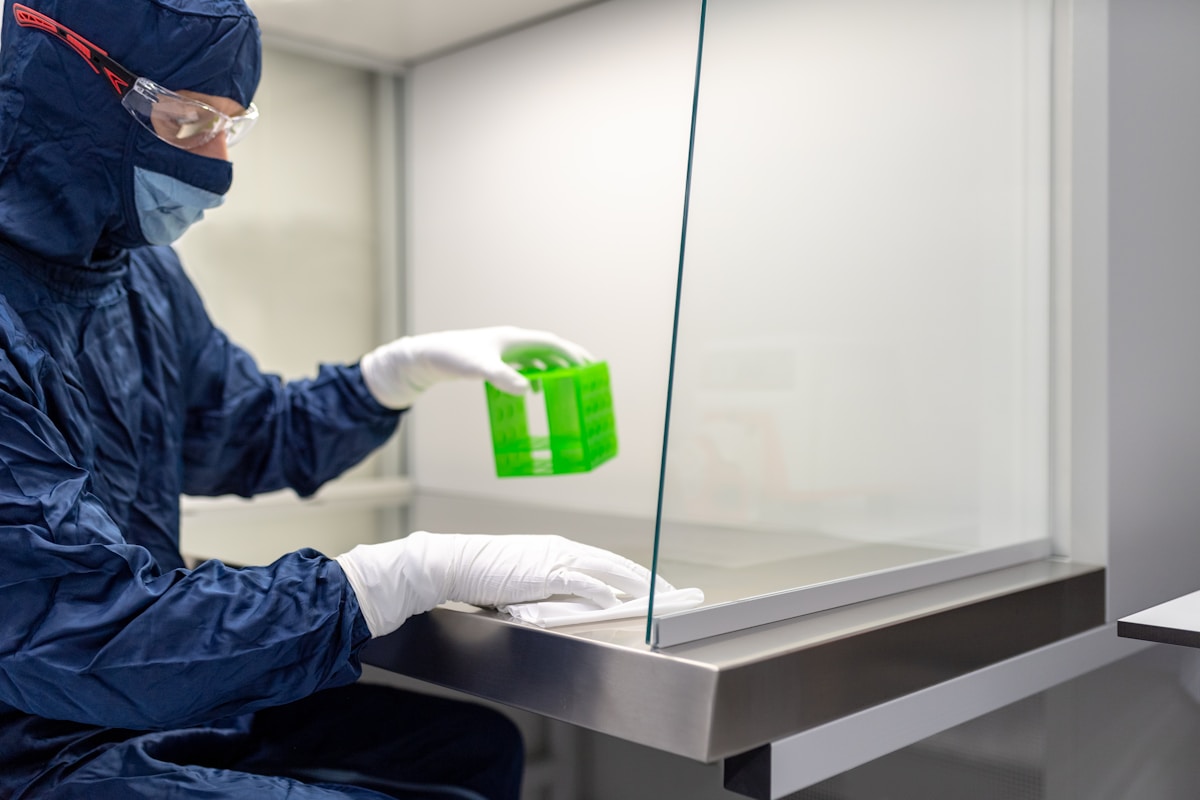

Defining Clean Booths and Modular Cleanrooms
Clean booths isolate staging areas with minimal pressure control, while modular cleanrooms create fully pressurized envelopes engineered for strict ISO classification.
Structural Integration: Free-Standing vs. Wall-Attached Units
Free-standing systems construct a complete environmental envelope independent of the host facility. The boundary relies entirely on the interlocking geometry of the insulated shell. When you specify a standalone module, every joint becomes a potential thermal bridge or air infiltration point. Wall-attached units, by contrast, utilize the existing facility structure as one side of the containment barrier. This hybrid approach reduces material volume but introduces significant validation complexity, as you must seal the interface between the new composite cladding and the legacy concrete or steel substrate. Our engineering team consistently sees procurement teams overlook this transition zone during bid season, only to face condensation migration during thermal cycling. Providing a uniform, factory-finished composite panel solution across the entire perimeter eliminates variable site-cuts and ensures the thermal break remains uninterrupted from floor to ceiling.
Containment Hierarchy and Pressure Isolation Levels
Pressure isolation is not merely an HVAC tuning exercise; it is a direct function of boundary integrity. In a true modular environment, positive pressure differentials are maintained through continuous, monolithic wall assemblies. Traditional stick-built partitions fracture this continuity at every stud and fastener, creating micro-leakage pathways that destabilize particle counts and force fan arrays to run at inefficient overheads. Composite sandwich panels address this by manufacturing the structural frame and the insulating core as a single, unified element. We have repeatedly measured how upgrading from segmented drywall partitions to continuous facings drastically reduces the static pressure required to maintain class ratings. When the wall itself acts as a sealed diaphragm, the mechanical system shifts from fighting leakage to actively managing air exchange, which directly extends filter service life and compresses validation timelines.
Panel Configuration and Ceiling Connectivity
The most critical failure point in cleanroom architecture occurs where the vertical wall meets the horizontal ceiling grid. Wall-attached configurations often force contractors to retrofit drop-ceiling frameworks onto exposed structural columns, creating uneven load distribution and complicating HEPA filter seating. Free-standing modular envelopes solve this by delivering precise, factory-toleranced panel heights that integrate seamlessly with standard suspension grids. Consistent panel thickness and rigid facing materials provide predictable mounting planes for overhead ductwork and lighting arrays. From a component standpoint, selecting a core that maintains dimensional stability under moisture exposure prevents the subtle warping that misaligns ceiling tiles over time. Our data indicates that when wall panels exhibit tight geometric tolerances, facility planners can standardize ceiling components across multiple zones, reducing engineering overhead and accelerating commissioning without compromising the airtight envelope.
| System Classification | Core & Facing Configuration | Thermal & Airtight Specification | HVAC & Validation Impact | Target Engineering Application |
|---|---|---|---|---|
| Clean Booth | Steel stud framing with EPS infill; thin galvanized steel or polymer skins | Center-of-cavity R-value 2.0–3.5; taped or gasketed seams; 5–8 ACH50 leakage rate | Elevated fan energy load due to thermal bridging; extended pressure differential validation cycles | ISO Class 8–9 staging areas, temporary testing zones, or low-contamination pilot lines |
| Modular Cleanroom | Engineered energy efficient cleanroom panels utilizing PIR sandwich panel cleanroom specs with continuous FRP/CFRT facings | Whole-wall prefab clean room insulation R-value exceeding 8.0; interlocking cam-lock joints; <0.5 ACH50 leakage rate | Stabilizes positive pressure with minimal fan load; reduces HEPA filtration demand by 30–40% for consistent ISO Class 5–7 compliance | Continuous pharmaceutical manufacturing, medical device assembly, and precision electronics fabrication |
| System Architecture Comparison | Timber/metal stud framing versus monolithic PIR composite wall systems designed for modular assembly | High thermal conductivity at structural nodes versus continuous thermal break architecture; 5–8 ACH50 versus <0.5 ACH50 | Condensation risk at framing nodes versus accelerated cGMP validation via standardized joint integrity | Legacy facility retrofits versus rapid-deployment operational facilities requiring long-term efficiency |
| Material & Fire Safety Profile | Combustible infill materials versus flame-retardant PIR or mineral wool cores with non-combustible facings | ASTM E84 Class 1 fire rating; low smoke density; maintained structural rigidity under thermal stress | Ensures NFPA and ISO 14644 compartmentalization compliance; prevents audit failures during thermal cycling tests | Regulated industrial environments requiring certified fire barriers alongside sustained thermal resistance |

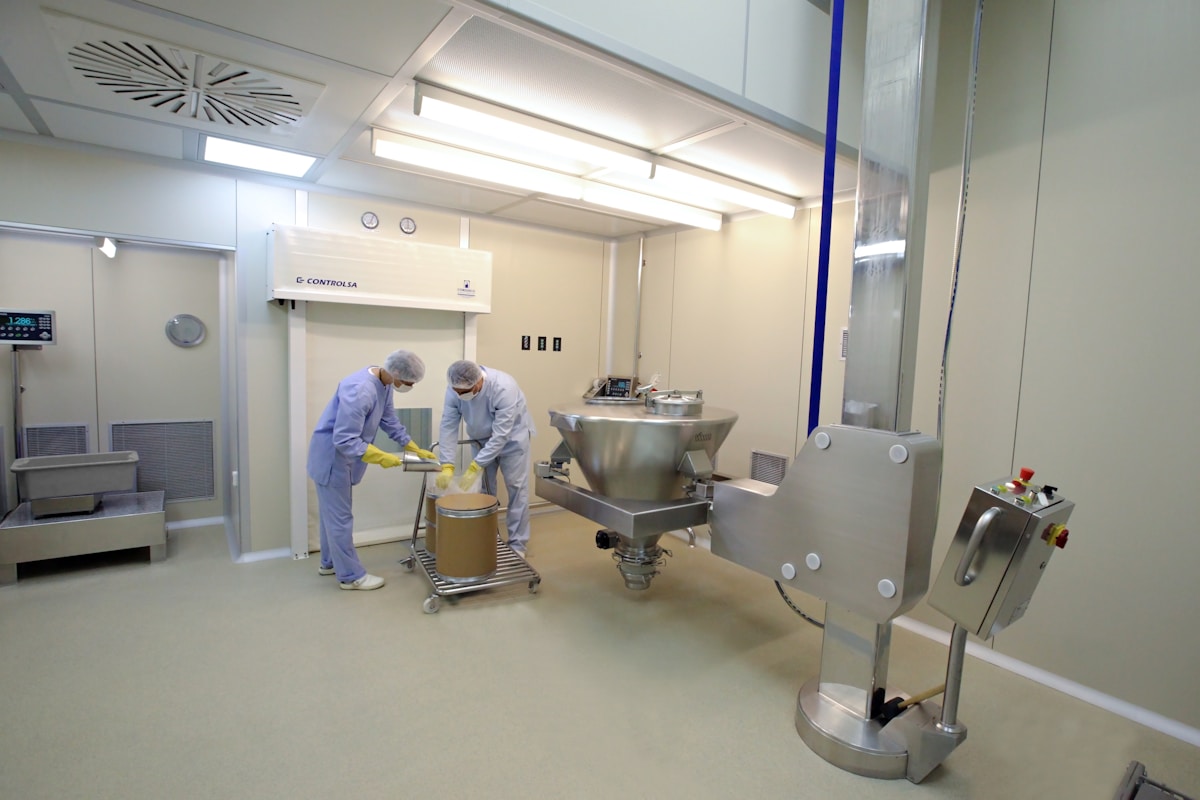

Comparing Structural Flexibility and Airflow
Selecting between portable clean booths and scalable modular systems requires balancing structural flexibility against rigorous airflow management. Booths prioritize rapid deployment and relocation, while modular configurations demand engineered seam integrity and zoned HVAC recirculation to maintain validated ISO-class environments.
Installation Delays and Thermal Bridging Risks
Modular cleanroom projects frequently encounter two-to-four-week installation delays caused by improper panel alignment during assembly. When cam-lock or mechanical interlocking systems are not torqued to engineering specifications, micro-gaps form at structural junctions. These gaps create thermal bridges that drastically compromise insulation performance and introduce condensation hazards in temperature-controlled zones. Procurement teams rarely factor installation labor quality into initial cost comparisons, yet field execution errors can easily erase any upfront material savings within the first operating quarter.
Thermal Performance and Core Material Realities
A common industry misconception assumes all insulated sandwich panels deliver equivalent thermal resistance regardless of core composition. In reality, polyisocyanurate (PIR) cores typically achieve an R-value of approximately 6.5 per inch, whereas extruded polystyrene (XPS) delivers roughly 5.0 per inch. For cold storage or tightly controlled manufacturing environments, this differential translates to fifteen to twenty percent higher annual energy consumption when lower-grade cores are specified. The cheapest panel specification often results in the most expensive long-term operational overhead due to continuous HVAC compensation.
Seam Integrity and Particle Leakage Paths
Wall-ceiling junctions and vertical panel seams represent the primary failure points for particulate migration in clean environments. Standard aluminum T-slot connector profiles frequently leave two-to-three millimeter clearance gaps that allow unfiltered ambient air to bypass downstream HEPA banks. Achieving true airtightness for ISO Class 7 or tighter specifications requires gasketed joint systems, sealant-compatible panel edges, and continuous compression gaskets. Budget suppliers often default to basic extruded profiles that cannot sustain the positive pressure differentials necessary to prevent cross-contamination during routine operations.
Temperature and Humidity Control Mechanics
Strict environmental validation demands temperature stability within ±2°C and relative humidity control maintained at ±5% RH. Basic clean booth architectures typically lack integrated HVAC zoning, which causes thermal stratification near exterior-facing walls and moisture accumulation at unsealed panel seams. Medical device and semiconductor manufacturers consistently report that inadequate environmental control leads to batch contamination and failed qualification runs, averaging fifty thousand dollars or more in corrective expenditures per incident. Proper panel fabrication must therefore coordinate closely with mechanical system load calculations to eliminate dead zones.
Portability Versus Modular Scalability and Filtration Density
The fundamental architectural divide lies between relocatable clean booths and expandable modular room systems. Booths utilize lightweight framing and breakaway connectors designed for rapid disassembly and site relocation, making them ideal for temporary testing or short-cycle manufacturing. Modular rooms rely on rigid structural posts, precision-milled panel interfaces, and permanent ceiling grid integrations that support sustained positive pressure and complex air handling ductwork. When facility requirements scale beyond the initial footprint, adding two hundred square feet of modular space requires coordinating new panel runs, extending HVAC branches, and revalidating airflow patterns. Attempting to expand a booth configuration usually demands complete replacement rather than extension.
- Air Recirculation Architecture: Booths rely on localized laminar flow hoods or single-pass HEPA units mounted directly to the workspace, limiting filtration density to the immediate operator zone. Modular rooms support centralized air handling units (AHUs) that condition and recirculate air across the entire volume, enabling uniform air changes per hour (ACH) throughout all ISO-defined zones.
- Filtration Load Distribution: Decentralized booth systems concentrate filter maintenance on individual drop-in units, which can cause uneven pressure drops if filters are replaced sequentially. Centralized modular AHUs distribute the filtration burden across bank-mounted HEPA or ULPA units, allowing synchronized maintenance windows and consistent particle extraction rates.
- Lifecycle Cost Trajectory: While booths offer lower initial CAPEX and high relocation flexibility, their operational lifespan typically spans five to seven years before structural fatigue compromises sealing capabilities. Modular panel systems require higher upfront capital but maintain validated environmental performance across ten-plus year facility cycles, reducing long-term requalification expenses and HVAC retrofit costs.

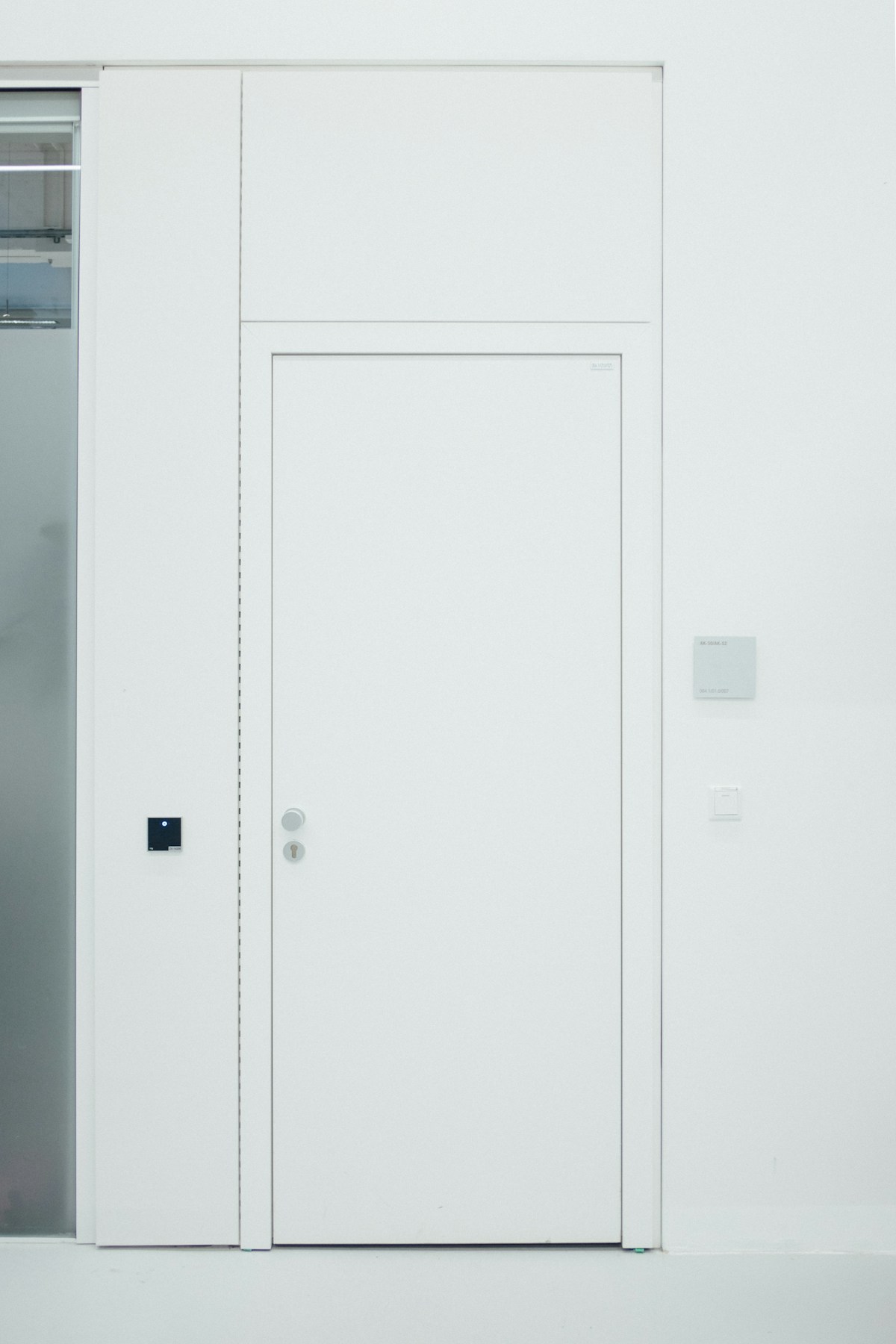

Ideal Application Scenarios and Environments
Ideal application scenarios require matching panel core chemistry and facing finishes to specific environmental stressors, ISO classification targets, and retrofit accessibility constraints. Selecting the correct composite architecture upfront prevents validation failures, chemical degradation, and costly structural modifications.
ISO Classification Integrity and Validation Overhead
Designing for controlled environments begins with recognizing that off-the-shelf panel configurations rarely meet stringent classification standards without engineering adjustments. Pharmaceutical, medical device, and semiconductor operations typically require ISO Class 5 through Class 8 enclosures. Achieving these benchmarks demands seamless joint assemblies and non-porous surface finishes to prevent particle accumulation at seams. When validating facility layouts against cGMP or ISO 13485 documentation requirements, buyers consistently underestimate the engineering hours dedicated to Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols. These validation phases routinely add an 8% to 18% cost premium over base construction expenditures. Panels lacking proper edge sealing or using incompatible core-to-facing adhesives frequently exceed allowable particle counts during operational stress testing.
- Surface Finish Standards: Gelcoat-treated GRP sheets and continuous fiberglass reinforced thermoplastic (CFRT) facings provide the smooth, chemically inert barriers necessary to maintain ISO Class 8 particulate thresholds at wall-ceiling intersections and corner joints.
- Seam Engineering: Cam-lock connection systems and interlocking panel edges minimize micro-gaps where airborne contaminants accumulate, reducing the frequency of re-validation cycles and long-term compliance overhead.
- Regulatory Documentation Alignment: Pre-certified composite assemblies with traceable core densities and facing thicknesses streamline the submission of material safety data sheets (MSDS) and fire performance certifications required for FDA and EU MDR facility audits.
Spatial Planning and Retrofit Accessibility
Operational flexibility dictates how easily internal configurations can be modified without compromising structural containment. Heavy manufacturing and laboratory environments frequently require the insertion of oversized equipment such as industrial autoclaves, coordinate measuring machines (CMM), and automated injection molding units. Standard enclosure doorways and rigid partition layouts often create fatal bottlenecks during facility expansion. Buyers planning initial layouts rarely account for future equipment replacement cycles until demolition becomes necessary. Modular hardwall constructions and prefabricated partition systems address this by allowing targeted panel removal and reinstallation. Utilizing lightweight core architectures reduces overall dead load, enabling faster structural rerouting and minimizing downtime during facility reconfiguration.
- Weight-to-Strength Optimization: Polypropylene (PP) honeycomb cores, aramid honeycomb structures, and polyetherimide (PMI) foams deliver exceptional rigidity while maintaining low mass, simplifying manual handling during retrofits and ceiling grid installations.
- Modular Disassembly Protocols: Freestanding or wall-attached partition systems designed for bolted or cam-lock assembly allow facility managers to dismantle specific bay sections for equipment insertion without triggering full facility shutdowns.
- Load-Bearing Integration: Thermoplastic sandwich panels with aluminum or steel facings provide reinforced mounting zones for heavy instrumentation, HVAC diffusers, and utility conduits without requiring secondary structural framing behind walls.
Environmental Stressors and Surface Chemistry Compatibility
Long-term facility viability depends entirely on how well composite surfaces withstand aggressive cleaning regimens and fluctuating thermal conditions. Controlled environments undergo daily sanitization using isopropyl alcohol, hydrogen peroxide, quaternary ammonium compounds, and oxidizing acids. Standard fiberglass-reinforced plastic (FRP) panels lacking adequate gelcoat or resin stabilization typically exhibit surface pitting, resin leaching, and micro-fiber generation within six months of continuous chemical exposure. This degradation directly compromises airtight wall systems and introduces particulate sources that violate environmental control mandates. Matching facing materials to specific cleaning protocols eliminates premature warranty claims and extends service life beyond standard industry expectations.
- Chemical Resistance Matrices: Continuous fiber reinforced thermoplastic (CFRT) sheets and aluminum-faced assemblies provide superior resistance to aggressive disinfectants, ensuring zero porosity across high-touch zones and floor-wall junctions.
- Thermal Insulation Stability: Polyvinyl chloride (PVC), extruded polystyrene (XPS), and polyethylene terephthalate (PET) foam cores maintain consistent R-values under humid operating conditions, preventing condensation buildup that fosters microbial growth behind wall cavities.
- Dust and Particle Control: Non-slip and anti-skid honeycomb variants combined with sealed perimeter gaskets ensure that internal airflow dynamics remain laminar, preventing cross-contamination during multi-stage production workflows.
Strategic Selection Framework
Strategic selection requires aligning panel architecture with validated ISO classifications, mapped expansion pathways, and quantified total cost of ownership. The correct structural choice eliminates hidden mechanical oversizing, prevents supply chain bottlenecks, and converts capital expenditure into predictable operational uptime.
Mapping ISO Class Requirements to Structural Choice
Cleanroom classification directly dictates panel thickness, joint tolerance, and surface finish specifications. Facilities targeting ISO 5 through ISO 8 environments must prioritize continuous envelope integrity, as even minor micro-leaks force HVAC systems to compensate with higher airflow volumes and redundant filtration stages. Procurement teams frequently isolate panel budgets from mechanical infrastructure, yet stricter containment standards routinely escalate air handling and HEPA deployment costs by 35 to 55 percent of the total project allocation. Selecting facings and core materials requires cross-referencing third-party certification packages—such as UL94 flame ratings, ASTM compressive strength reports, and verified thermal conductivity certificates—before layout finalization. Unverified documentation creates audit exposure and delays IQ/OQ/PQ validation workflows.
- ISO 5–6 Compliance: Requires non-porous gel-coated or thermoplastic facings with zero particle shedding profiles; mandates cam-lock interlocking joints to prevent airborne contamination migration.
- ISO 7–8 Tolerance: Permits standardized CFRT or aluminum cladding with engineered seam sealing; balances rapid deployment with moderate particulate control requirements.
- Mechanical Load Alignment: Panel insulation density directly influences cooling capacity calculations; undersized cores force oversized chillers and increase recurring kWh consumption.
Evaluating Scalability and Modification Flexibility
Operational agility depends on pre-mapped utility corridors and removable panel zones. Modular architectures enable phased expansion or internal reconfiguration without full-scale demolition, provided removal clearances are accounted for during the schematic design phase. When access pathways conflict with installed equipment racks or overhead ductwork, maintenance teams face extended shutdowns that directly impact production yield. Supply chain execution capability determines whether scalability remains theoretical or operational. While production timelines often advertise four to twelve weeks, actual deployment schedules frequently extend to sixteen to twenty-four weeks due to freight consolidation delays, customs inspections, and batch verification holds. General contractors must validate factory audit records, daily output capacity, and quality rejection protocols before committing to multi-phase rollouts.
Lifecycle Cost Efficiency of Panel Materials
Upfront material pricing per square foot consistently misleads buyers who neglect deployment velocity and asset reuse potential. Conventional stick-built construction presents lower initial procurement costs but incurs prolonged commissioning windows, higher recurring maintenance overhead, and limited reconfiguration options. Prefabricated composite systems accelerate time-to-operation by fifty to seventy percent, generating immediate revenue recovery that neutralizes the premium initial investment. Over a five-year operational horizon, reusable panel assemblies, reduced decontamination downtime, and stabilized thermal envelopes drive measurable total cost reductions. Buyers comparing modular cleanroom deployments against traditional builds must calculate total cost of ownership rather than isolating surface material expenses.
- Revenue Acceleration Factor: Faster structural handover enables earlier batch processing, directly offsetting higher panel acquisition costs through daily production throughput gains.
- Maintenance Downtime Reduction: Seamless facings and pre-integrated utility channels eliminate frequent repainting, sealant replacement, and cross-contamination remediation cycles.
- Asset Depreciation Modeling: Reusable sandwich architectures retain 60 to 80 percent of functional value after facility relocation, whereas conventional framed structures require complete decommissioning.
Selecting panel architecture demands rigorous cross-functional validation. Align material specifications with mechanical load calculations, secure audited performance documentation prior to procurement, and map expansion pathways before fabrication commences. This systematic approach eliminates budget overruns, accelerates regulatory clearance, and ensures structural investments support long-term operational scalability.
| Selection Criterion | Technical Specification | Performance Impact | Compliance & Validation | Long-Term Operational Value |
|---|---|---|---|---|
| Core Insulation Material | PIR vs. EPS vs. Mineral Wool | PIR delivers superior thermal resistance (R-value ~6.0/inch) and lower thermal conductivity (~0.022 W/mK) | ASTM E84 Class 1 fire rating; meets ISO 14644 environmental stability | Reduces HVAC load by 30-40%, directly lowering kWh/sq ft consumption |
| Wall System Airtightness | Cam-lock interlocking joints with EPDM sealing vs. traditional stick-frame caulking | Achieves <0.5 ACH50 leakage rate; maintains stable positive/negative pressure differentials | Validates ISO 14644-1 classification stability; prevents uncontrolled cross-contamination | Eliminates thermal bridging and condensation risks; reduces energy waste from pressure loss |
| Facings & Surface Integrity | Gel-coated FRP or CFRT thermoplastic sheets vs. painted drywall | Non-porous, seamless surface resists microbial adhesion; withstands rigorous chemical sanitization | Supports cGMP and FDA audit readiness; minimizes particle generation during cleaning | Lowers decontamination downtime and extends facade service life without repainting |
| Assembly Methodology | Prefabricated modular panels vs. conventional stick-built framing | Factory-controlled tolerances ensure precise dimensional accuracy; enables phased expansion without demolition | Pre-integrated utility channels simplify IQ/OQ/PQ documentation; reduces on-site validation variables | Accelerates time-to-operation by 40-60%; shifts capital expenditure toward predictable, scalable infrastructure |
| Thermal Envelope Continuity | Continuous composite sandwich core vs. discontinuous stud-and-batt framing | Mitigates thermal bridging through metal studs by maintaining uninterrupted thermal envelope | Meets stringent industrial energy codes and ISO environmental control benchmarks | Optimizes total cost of ownership by stabilizing internal climate zones and reducing peak HVAC demand |
Conclusion
You picked the right direction by matching ISO targets to the floor plan before ordering materials. Modular cleanrooms beat stick-built construction every time for expansion projects. Our engineers see dealers waste budget on oversized HVAC units because they guess thermal loads instead of verifying the prefab clean room insulation R-value. High-density foam cores cut cooling costs immediately. We calculate those downstream loads so your installation stays within spec.
- Verify PIR sandwich panel cleanroom specs match local fire codes before fabrication.
- Cross-check door gaskets and floor channels during site prep to maintain pressure.
- Call our Rax Panel technical desk early to review airflow diagrams or pressure mapping strategies.
- Ask us to walk through HVAC sizing sheets if filter bank selection feels uncertain.
Frequently Asked Questions
What causes particle leakage at cleanroom junctions?
Conventional framing relies on caulked seams and standard drywall joints that degrade under repeated chemical cleaning cycles. Modular airtight cleanroom wall systems utilize interlocking connectors that maintain continuous surface integrity across walls and ceilings. These engineered joints prevent micro-gaps from becoming aerosolized particle reservoirs during positive pressure fluctuations. Proper seam design is therefore mandatory for sustaining ISO 14644 particle count compliance.
How does modular construction impact HVAC sizing requirements?
Stick-built facilities often suffer from unpredictable air infiltration rates that force engineers to oversize filtration and cooling units. Prefabricated panels provide consistent thermal envelopes and measurable air leakage rates, typically below 1 ACH50. This predictability allows precise HVAC zoning calculations rather than applying excessive safety margins. Facilities consequently experience lower operational expenses and more stable temperature control within ±2°C tolerances.
How do thermal bridges affect cleanroom energy use?
Thermal bridging through conventional framing significantly increases whole-wall U-values, forcing HVAC systems to overcompensate for conductive heat loss. Premium energy efficient cleanroom panels eliminate these pathways by integrating continuous insulation cores between structural facings. Our engineering data indicates that removing thermal bridges directly reduces kWh per square foot while maintaining stable ISO classification pressures. Consequently, facility planners achieve faster payback periods despite higher initial material expenditures.
Why do modular systems reduce validation overhead costs?
Traditional construction introduces variable moisture content and uneven surfaces that complicate pharmaceutical cGMP certification processes. Factory-controlled panel manufacturing guarantees uniform compressive strength, fire ratings, and smooth finishes ready for immediate qualification testing. This consistency eliminates on-site remediation delays and accelerates third-party audit approvals. Procurement teams routinely observe reduced total validation expenditures when switching to modular frameworks.
What documentation verifies panel compliance for audits?
Reputable suppliers must provide independent laboratory reports confirming UL94 flammability, compressive load capacity, and thermal conductivity metrics. These documents form the technical foundation for ISO 14644 verification and internal quality management systems. Engineering teams should verify batch-specific test certificates prior to procurement to ensure full traceability. Missing documentation frequently results in failed regulatory inspections and project rework.
