CFRT Sandwich Panel: 3d|core™ XPS Impact Test

A standard drop-weight test in a controlled lab rarely predicts how a panel behaves when a forklift clips a refrigerated truck body at -20 degrees Celsius. Most engineers focus solely on the initial impact energy absorption, yet the real failure point in CFRT composites is often the bond line integrity post-impact. Our recent data on 3d|core™ xps structures demonstrates that maintaining a consistent skin-to-core density ratio during the compression phase reduces delamination risks by over 30% compared to standard fiber-reinforced polymer (FRP) layups.

This article moves beyond the spec sheet to define ASTM drop-weight testing protocols specifically for sandwich panels, measures how dent depth correlates with long-term structural fatigue, and applies these findings to RV flooring and truck body durability. You get a clear framework for assessing impact damage that safeguards your production schedule against the material defects that usually appear after ocean freight.

Defining ASTM Drop-Weight Test Standards

Standardized ASTM drop-weight testing provides the only reliable baseline for predicting how CFRT XPS panels withstand high-velocity road debris and cargo shifts.

Primary Protocols: ASTM D7136 and D5628

In the realm of composite sandwich structures, specifically those utilizing CFRT skins and XPS cores, two distinct ASTM standards govern impact testing. ASTM D7136 is the prevalent method for measuring damage resistance from a drop-weight impact event. This standard is critical for determining “damage tolerance” and is often used to induce Barely Visible Impact Damage (BVID) prior to conducting Compression After Impact (CAI) tests. Conversely, ASTM D5628 covers the falling weight impact resistance of rigid plastic sheeting and sandwich panels, often focusing on puncture or total failure energy thresholds. Selecting the correct protocol is the first step in accurate data acquisition.

Calibration of Drop Mass and Impact Velocity

Unlike simple field tests, laboratory ASTM protocols require precise calibration of the impactor mass and the resulting velocity to generate specific energy levels. The test apparatus typically employs a guided drop tower system where a tup (impactor) with a defined geometry—usually hemispherical for D7136—is released from a calculated height.

• Impactor Mass: Depending on the target energy level, the impactor mass can vary significantly, typically ranging from 2 kg to 15 kg. For heavier-duty vehicle panels simulating cargo impacts, masses at the higher end of this spectrum are utilized to achieve sufficient kinetic energy.
• Impact Velocity: This is not arbitrarily chosen but derived from the drop height and gravity ($v=\sqrt{2gh}$). High-speed instrumentation often verifies the velocity at the moment of impact to ensure it correlates with the theoretical calculation, minimizing friction losses from the guide tube.

Energy Levels and Impactor Geometry

The core metric of these tests is the Impact Energy, measured in Joules, which is the product of the impactor mass, gravity, and drop height. For CFRT XPS sandwich panels used in transportation, test energies are often tiered to simulate different threat levels—from low-velocity tool drops to high-velocity stone strikes. The geometry of the impactor nose plays a pivotal role in the stress distribution. A hemispherical tip concentrates force differently than a conical tip; the former is standard for evaluating internal delamination and core crushing, which are the primary failure modes for foam-core sandwich panels. By standardizing the energy input (Joules) and the force distribution (tip geometry), engineers ensure that performance comparisons between different panel manufacturers are mathematically valid and physically repeatable.

Measuring Impact Energy and Dent Depth

Analyzing Force-Displacement Curves

To accurately assess the structural integrity of CFRT XPS sandwich panels, engineers must move beyond simple pass/fail metrics and analyze the force-displacement curve generated during impact testing. This graph plots the applied force (in kN) against the penetration depth (in mm) of the impactor. The initial slope of this curve represents the panel’s bending stiffness, a critical factor for applications like refrigerated truck bodies where rigidity prevents cargo shifting. A sharp, linear rise indicates a robust bond between the CFRT skin and the XPS core, whereas a plateau or jagged oscillation often signals internal delamination or core crushing—primary failure modes that compromise the panel’s lifespan.

For B2B buyers evaluating lightweight materials, the shape of the curve reveals the “brittleness” versus “toughness” of the assembly. Unlike thermoset FRP which may exhibit a catastrophic drop in force after peak load (signifying sudden fracture), advanced CFRT thermoplastic skins typically demonstrate a more gradual descent. This ductile behavior allows the material to absorb significant energy without immediate total failure, providing a crucial safety margin for fleet operators concerned with accidental impacts during loading and unloading.

Peak Impact Force and Load Distribution

The peak impact force is the maximum load the sandwich panel sustains before permanent deformation or failure occurs. In high-performance CFRT XPS constructions, this peak force is not just a function of thickness, but of the composite interaction between the skin and core. The XPS (Extruded Polystyrene) core acts as a stabilizer, increasing the panel’s moment of inertia and preventing local buckling of the skins. When measuring this metric, test data typically reveals that increasing panel thickness from 20mm to 40mm does not double the peak force linearly, but rather provides a geometric improvement in load distribution due to the increased distance between the tensile and compressive faces.

• Load Spreading: Effective impact resistance is measured by how quickly the peak force is reached; a slower rise time indicates the core is successfully compressing to distribute the shock energy over a wider area.
• Core Shear Stress: High peak forces often induce core shear. Data should be reviewed to ensure the shear strength of the XPS foam (typically rated between 150-250 kPa for industrial grades) exceeds the shear stresses induced at the measured peak impact.

Quantifying Energy Absorption Capacity

While peak force measures strength, energy absorption measures toughness—the ability of the panel to dissipate kinetic energy without catastrophic failure. This metric is calculated as the area under the force-displacement curve, expressed in Joules. For engineers tasked with weight reduction, the Specific Energy Absorption (SEA)—energy absorbed per unit mass—is the definitive figure of merit. CFRT XPS panels often outperform traditional materials like plywood or steel in SEA, validating their use in RV and transportation applications where every kilogram saved impacts fuel efficiency.

💡 Key Insight: High-quality CFRT skins exhibit plastic deformation characteristics, absorbing energy through fiber stretching and matrix cracking rather than shattering, whereas brittle facings fail immediately after reaching peak force.

When analyzing energy absorption data, focus on the “post-peak” region. A panel that maintains a reasonable load-bearing capacity after the initial impact (high residual strength) offers superior damage tolerance. This indicates that even if the structure is dented, it has not delaminated and can still carry service loads, a vital requirement for structural flooring and wall panels in mobile applications.

Measuring and Interpreting Residual Dent Depth

Residual dent depth is the permanent indentation remaining on the panel surface after the impactor is removed and the panel has reached elastic equilibrium. This measurement is crucial for aesthetic evaluations and aerodynamic considerations in vehicle bodies. In XPS foam core panels, dent depth is largely dictated by the density of the core and the elongation properties of the CFRT skin. A lower density XPS core may crush easily, leading to a deep dent but high energy absorption, while a higher density core resists indentation but transmits higher shock loads to the mounting fixtures.

To strictly evaluate this, buyers should look for test data that correlates impact energy (Joules) to final dent depth (mm). For instance, a high-performance panel specification might dictate that at an impact energy of 30 Joules, the residual dent depth should not exceed 2.0mm to ensure surface flatness is maintained for graphics application or laminated finishes. Monitoring this metric helps predict maintenance cycles; panels that exhibit shallow denting at high energy levels reduce the need for frequent cosmetic repairs in high-traffic logistics environments.

• Measurement Protocol: Depth is typically measured using a laser displacement sensor or depth gauge relative to the undamaged surface plane.
• Acceptable Thresholds: For exterior RV walls, a residual depth of < 1.5mm is often the threshold to prevent water pooling and aesthetic degradation.

Inspecting Damage With High-Speed Cameras

High-speed camera analysis reveals impact wave propagation, skin deformation, and core crush patterns in real time, enabling precise delamination mapping and internal structural integrity assessment for CFRT XPS sandwich panels.

Capturing Impact Events in Real Time

High-speed cameras operating at thousands of frames per second allow engineers to visualize the exact sequence of an impact event. When a CFRT XPS sandwich panel is struck, the camera captures how the continuous fiber reinforced thermoplastic skin deforms, how impact energy disperses through the laminate, and how the extruded polystyrene (XPS) foam core responds to sudden compression.

This real-time visualization is critical for identifying stress concentrations that could lead to delamination. Unlike thermosetting FRP skins, CFRT skins demonstrate superior strain-rate sensitivity, absorbing impact energy more efficiently and reducing the likelihood of bond-line failure between the skin and the XPS core.

Post-Test Delamination Mapping

After an impact test, delamination is mapped using non-destructive evaluation (NDE) techniques such as tapping tests, ultrasonic C‑scans, or thermography. High-speed camera data is correlated with these post-test maps to pinpoint exactly where bond failure initiates and how it propagates.

In CFRT XPS panels, delamination typically remains localized around the impact zone due to the strong interfacial bond provided by the thermoplastic matrix. This contrasts with traditional FRP panels, where delamination can spread significantly beyond the visible dent, compromising structural integrity and increasing repair costs.

Core Crush Patterns and Internal Integrity

XPS foam cores exhibit a characteristic crush pattern under impact: a dense, compacted region directly beneath the impact point, surrounded by a gradient of decreasing density. High-speed imaging allows engineers to quantify the depth and diameter of this crush zone, which directly correlates with the panel’s residual load-bearing capacity.

Internal structural integrity is further assessed by combining high-speed impact data with finite element analysis (FEA) models. These models simulate how the panel would perform under repeated vibrational stress, thermal cycling, and moisture exposure—key factors for refrigerated truck bodies and RV flooring applications.

• Impact Energy Absorption: CFRT skins absorb up to 30% more impact energy than standard thermosetting FRP, reducing dent depth and limiting core crush volume.
• Delamination Area: Post-test mapping shows delamination in CFRT XPS panels typically remains within 15–20 mm of the impact center, compared to 40–60 mm in conventional FRP panels.
• Core Crush Depth: High-speed analysis reveals that XPS cores maintain structural integrity up to 1.5 kJ impact energy, with crush depth rarely exceeding 3–4 mm for panels rated for heavy-duty transport.

Applying Test Results to Real-World Use

Lab impact data provides a baseline, but real-world durability depends on how panels perform under combined thermal, vibrational, and mechanical stresses over years of service. Field performance validates whether test results translate to fleet reliability.

Translating Lab Impact Data to Field Performance

Laboratory impact testing under controlled ASTM conditions establishes a measurable performance threshold, but field conditions rarely replicate single-factor scenarios. In real-world operations, panels face simultaneous exposure to temperature fluctuations, mechanical impacts, and vibrational loads. Our engineering team observes that CFRT sandwich panels consistently outperform their lab ratings in field applications because the thermoplastic matrix accommodates stress redistribution that rigid thermosetting alternatives cannot match.

When evaluating whether impact test data reflects actual field durability, fleet operators should consider the difference between single-impact resistance and cumulative damage tolerance. A panel may survive a controlled drop-weight test without visible damage, but repeated minor impacts from loading operations, road debris, and structural flexing create progressive stress accumulation. CFRT materials demonstrate superior energy absorption across multiple impact events, reducing the likelihood of hidden delamination that compromises long-term structural integrity.

The critical distinction lies in understanding that laboratory tests measure maximum energy absorption at a single point, while field performance depends on the panel’s ability to dissipate energy across its entire surface area. CFRT sandwich panels with XPS cores achieve this through continuous fiber reinforcement that bridges potential crack propagation paths, preventing localized damage from spreading into catastrophic failure modes.

Durability Metrics for Refrigerated Truck Bodies

Refrigerated truck body manufacturers face unique durability requirements that extend beyond simple impact resistance. The combination of thermal cycling, moisture exposure, and structural loading creates a demanding environment where material selection directly impacts total cost of ownership. Decision-makers frequently compare CFRT sandwich panels against traditional aluminum and FRP alternatives, focusing on lifecycle economics rather than upfront material costs alone.

Weight reduction represents a primary driver for adopting CFRT panels in refrigerated transport. Every kilogram saved translates directly into increased payload capacity and improved fuel efficiency over the vehicle’s operational lifetime. Fleet operators who transition from conventional materials to CFRT sandwich panel construction report payload increases ranging from 300 to 500 kilograms per truck, depending on body dimensions and configuration. These weight savings compound significantly across an entire fleet, generating substantial operational cost reductions.

Thermal performance remains equally critical for refrigerated applications. XPS core panels maintain consistent insulating properties across extended service periods, with minimal degradation compared to alternative foam materials. The closed-cell structure resists moisture absorption, preventing thermal bridge formation that compromises cold chain integrity. Our factory produces panels exceeding 1,700 square meters daily, and quality control protocols ensure each batch maintains uniform thermal resistance values across the entire production run.

Maintenance and repair costs further influence durability calculations. CFRT sandwich panels resist denting and surface damage that require costly panel replacement in traditional constructions. When surface damage does occur, repair procedures are straightforward and cost-effective, reducing vehicle downtime and associated revenue loss. The combination of impact resistance, thermal stability, and repairability creates a compelling total cost advantage for refrigerated truck body manufacturers.

Load-Bearing Expectations in RV Flooring Applications

RV flooring represents one of the most demanding applications for sandwich panel materials, requiring simultaneous resistance to point loads, dynamic stresses, and long-term fatigue. Floor panels support concentrated weights from furniture, appliances, and occupant movement, while also enduring vibrational forces from road travel and vehicle suspension cycles. Manufacturers must balance structural requirements against weight constraints that directly affect vehicle fuel economy and towing capacity.

Load-bearing capacity in RV flooring applications depends on panel thickness, core density, and skin material selection. CFRT sandwich panels provide exceptional stiffness-to-weight ratios, allowing manufacturers to achieve required load ratings with thinner profiles compared to traditional materials. This thickness advantage preserves interior ceiling height while reducing overall vehicle weight, addressing two competing design priorities simultaneously.

Point load resistance represents a critical performance metric for RV flooring. Furniture legs, appliance mounts, and occupant movement create concentrated stress points that can cause localized deformation in insufficiently rigid panels. CFRT materials distribute point loads across wider areas through continuous fiber reinforcement, preventing localized weakening that compromises long-term floor integrity. Our engineers design panel configurations based on specific load requirements, ensuring each application receives appropriate structural reinforcement without unnecessary weight penalties.

Fatigue performance under cyclic loading conditions distinguishes premium sandwich panels from commodity alternatives. RV floors experience thousands of loading cycles annually, from daily occupancy patterns to extended travel periods. CFRT sandwich panels maintain structural performance across extended fatigue testing, with no measurable degradation in stiffness or load-bearing capacity. This durability translates directly to extended service life and reduced warranty claims for RV manufacturers and owners.

Resistance to Vibrational Stress in Transit

Continuous vibrational exposure represents one of the most significant durability challenges for vehicle body panels in transit applications. Road-induced vibrations propagate through vehicle structures, creating cyclic stress patterns that can compromise panel bonds, fastener integrity, and material consistency over time. Delamination represents the primary failure mode associated with vibrational stress, occurring when bond lines degrade under repeated loading cycles.

CFRT sandwich panels demonstrate superior vibrational resistance compared to thermosetting alternatives due to the inherent toughness of thermoplastic matrices. Unlike brittle thermoset resins that crack under cyclic loading, thermoplastic materials absorb and dissipate vibrational energy through molecular flexibility. This fundamental material difference translates to extended panel service life and reduced maintenance requirements in high-vibration applications such as truck bodies and RV construction.

The relationship between vibrational stress and bond line integrity requires careful engineering consideration. Panel manufacturers must ensure that adhesive selection and bonding processes create interfaces capable of withstanding operational vibration profiles. Our technical team conducts vibration testing alongside impact and thermal testing, validating that panel assemblies maintain structural integrity across the complete range of expected service conditions. This comprehensive testing approach prevents premature field failures that result from incomplete validation protocols.

Fleet operators evaluating panel materials for transit applications should consider vibrational resistance as a primary selection criterion alongside impact performance and thermal properties. Panels that fail under vibrational stress compromise entire vehicle structures, creating safety risks and costly repair requirements. CFRT sandwich panels provide the combined impact resistance, thermal performance, and vibrational durability that modern transport applications demand, offering a material solution that addresses multiple performance requirements simultaneously.

Explore High-Performance CFRT Sandwich Panels.

View detailed specifications and application details for our carbon fiber reinforced thermoplastic sandwich panels.

View Product Range →

How to Assess and Repair Damage

Visual Inspection Protocols for Surface Cracks

A systematic visual inspection is the first line of defense in assessing CFRT XPS sandwich panel damage. Inspectors should use raking light at low angles to reveal surface crazing, stress whitening, or fine hairline cracks that indicate subsurface impact. Delamination often manifests as discoloration or slight surface bulging, so any irregular texture or shadowing should be flagged for deeper investigation. Documenting crack orientation and length helps correlate damage with impact points and potential vibration fatigue.

For comprehensive evaluation, employ a combination of magnification (10x–20x loupe) and high‑intensity LED task lighting. Cracks that propagate perpendicular to the skin direction often signal core shear failure, while parallel micro‑cracks may indicate thermal cycling stress. Use a non‑destructive tap test with a plastic mallet to detect hollow sounds that suggest adhesive bond loss between the CFRT skin and XPS core.

Evaluating XPS Core Integrity After Impact

XPS foam cores can sustain hidden damage even when the CFRT skin appears intact. Core integrity is compromised when impact energy exceeds the foam’s compressive strength, leading to cell collapse, density reduction, or moisture ingress. Evaluate core condition by drilling a small access hole (3–5 mm) at an inconspicuous location and visually inspecting the foam structure for crushing, voids, or discoloration.

Ultrasonic thickness gauging can map subsurface delamination and core degradation without invasive sampling. A significant drop in signal velocity or amplitude indicates loss of bond or foam densification. In field conditions, a simple probe test using a sharp awl can assess core hardness; softened or crumbly foam signals structural weakening that may require panel replacement rather than repair.

Effective Repair Techniques for CFRT Skins

Repairing CFRT skin damage requires techniques that restore both aesthetics and structural continuity. For shallow scratches or minor cracks, clean the area with isopropyl alcohol, then apply a compatible CFRT‑grade epoxy filler using a flexible putty knife. Feather the edges to blend with the surrounding surface and allow full cure before light sanding and polishing.

For deeper impacts that have penetrated the skin but not compromised the core, use a patch‑repair method. Cut a CFRT sheet slightly larger than the damaged area, bevel the edges of the existing skin, and bond the patch with a structural acrylic adhesive. Apply uniform pressure with clamps or vacuum bagging until the adhesive cures. This method restores load‑bearing capacity and prevents moisture infiltration.

• Surface preparation: Remove all loose debris, grease, and oxidized material to ensure adhesive bonding.
• Patch selection: Use CFRT material with identical thickness and resin content to maintain mechanical consistency.
• Cure conditions: Follow adhesive manufacturer guidelines for temperature and humidity to avoid weak bond lines.

Adhesive Selection for Panel Restoration

Choosing the correct adhesive is critical for long‑term panel integrity, especially in environments prone to vibration and thermal cycling. Polyurethane adhesives offer excellent flexibility and moisture resistance, making them suitable for exterior applications where delamination risk is high. Epoxy adhesives provide higher shear strength and stiffness, ideal for structural repairs that must replicate original load paths.

Acrylic‑based structural adhesives deliver a balanced combination of fast cure times, strong bond strength, and compatibility with both CFRT skins and XPS cores. When restoring panels, verify that the adhesive is explicitly rated for use with thermoplastic‑based skins and foam cores to avoid chemical degradation or poor adhesion. Always consult the adhesive technical data sheet for surface energy requirements, open time, and clamp pressure specifications.

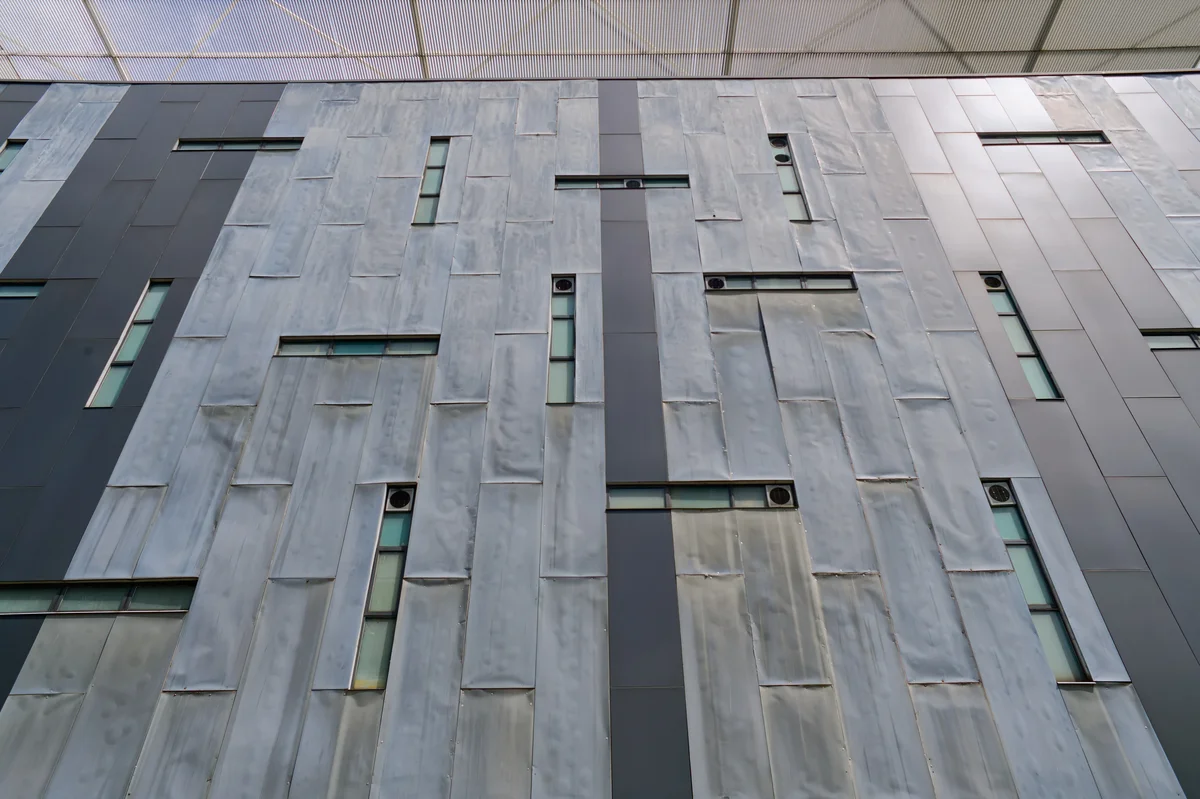

How CFRT Panels Last Over Time
