PMI Foam Sandwich Panel: Superior Core for B2B Projects

Specifying a structural core for high-temperature prepreg curing usually forces a tough compromise between adding heavy insulation or risking core deformation during the cycle. A PMI foam sandwich panel solves this by offering temperature resistance up to 200°C, which allows you to run standard autoclave and vacuum press processes without crushing the cell structure. This thermal stability is essential for preventing the core-skin debonding that leads to catastrophic failures in aerospace and RV applications.

At RaxPanel, we evaluate the specific shear strength and compression benchmarks that justify the material cost compared to PVC or PU alternatives. This article covers how to calculate the true lifecycle savings of switching to a closed-cell foam and how consistent cellular morphology contributes to superior fatigue performance for floor panels. You gain the framework to eliminate batch inconsistency and reduce machining scrap in your production schedule.

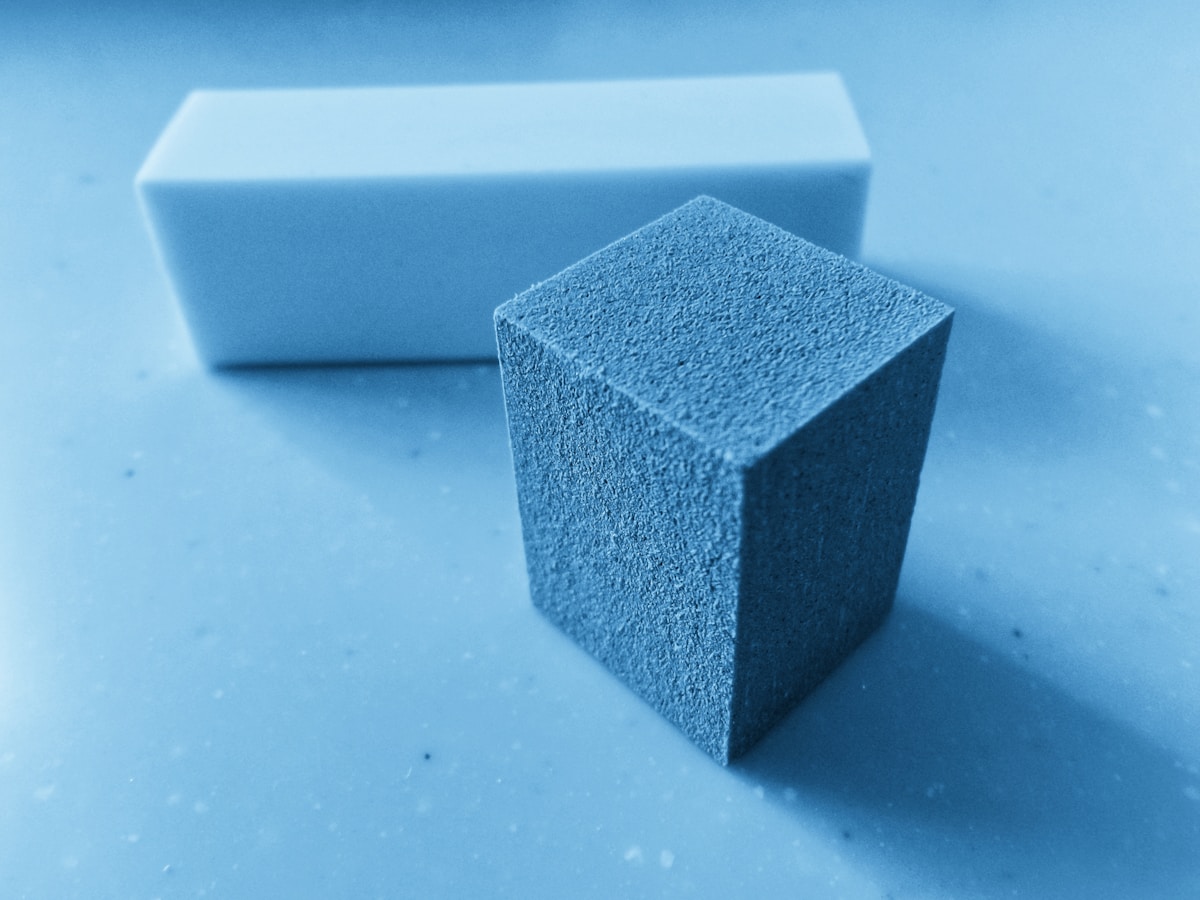

How to Evaluate Core Materials

Evaluating core materials requires balancing mechanical strength, thermal stability, and manufacturing compatibility. PMI foam excels in high-temperature applications and creep resistance, justifying its premium over conventional foams.

Key Mechanical Properties and Density Ratings

When specifying a structural core, engineers must first map density against compressive and shear strength. A material that appears cost‑effective on a per‑square‑meter basis may reveal critical weaknesses under load when plotted on a density‑strength graph. Our engineering team frequently identifies mismatches between a buyer’s stated weight‑reduction goals and the actual stiffness required for long‑span applications.

Density is not merely a number—it directly dictates the panel’s buckling resistance and fatigue life. In our experience, cores below 50 kg/m³ often lack the modulus needed for heavy‑duty flooring or roofing, while densities above 100 kg/m³ can introduce unnecessary dead weight. The optimal point lies where the strength‑to‑weight ratio meets the specific load profile of the end‑use.

• Compressive Strength: Determines resistance to perpendicular loads; critical for flooring and deck applications.
• Shear Modulus: Governs the panel’s ability to transfer shear forces between skins; essential for monocoque structures.
• Flexural Strength: Indicates bending resistance; a key metric for long‑span wall and roof panels.

Thermal Stability and Service Temperature Limits

Thermal stability defines the upper temperature limit a core can withstand during both processing and in‑service exposure. Many conventional foams begin to soften or degrade well below the curing temperatures required for high‑performance resin systems like bismaleimide (BMI) or epoxy‑phenolic. This limitation often forces designers to select lower‑performance matrix materials, compromising the final laminate’s mechanical properties.

Our lab tests consistently show that closed‑cell PMI foam retains its structural integrity through repeated autoclave cycles exceeding 180°C. This capability allows manufacturers to pair the core with advanced thermoset resins without risking core collapse or excessive resin uptake. For applications involving external heat exposure—such as refrigerated truck bodies or solar‑exposed RV walls—this thermal resilience translates directly into longer service life and reduced warranty claims.

PMI Foam Performance Comparison Framework

Selecting between PMI, PVC, PET, or honeycomb cores requires a structured comparison across multiple axes. While a simple cost‑per‑unit analysis might favor PVC, a total‑performance evaluation often reveals that PMI’s superior creep resistance and thermal stability yield a lower lifecycle cost in demanding environments.

The framework below outlines the key differentiators our engineers use when advising clients on core selection.

• Temperature Resistance: PMI cores can endure continuous service temperatures above 150°C, whereas standard PVC cores typically degrade below 100°C.
• Creep Resistance: PMI exhibits minimal viscoelastic deformation under sustained load, making it ideal for structural components that must maintain flatness over decades.
• Resin Compatibility: The closed‑cell structure of PMI minimizes resin absorption during vacuum infusion, reducing weight gain and preventing dry spots in the laminate.
• Cost‑per‑Performance: While PMI commands a higher upfront price, its ability to enable thinner, lighter panels with equivalent stiffness often results in net savings in transportation and fuel costs.

Selection Criteria for Demanding Industrial Applications

The decision to specify PMI foam should be driven by a clear understanding of the application’s most severe operating conditions. We evaluate three primary factors: maximum service temperature, long‑term static load requirements, and the manufacturing process (e.g., prepreg autoclave vs. vacuum infusion).

For instance, in marine decking where constant foot traffic and UV exposure are combined with occasional high‑temperature cleaning cycles, a PVC core may suffice. However, for structural wind‑turbine blades that must endure cyclic thermal loads and centrifugal forces for 20+ years, PMI is the only core that consistently meets the fatigue and creep‑resistance thresholds. In our practice, we recommend specifying PMI for any application where failure would result in catastrophic downtime or safety risks.

Comparing Mechanical Properties

Density-to-Strength Ratio Benchmarks

In high-performance engineering sectors such as aerospace and wind energy, designers face a critical paradox: reducing mass without sacrificing stiffness or load-bearing capacity. The failure of traditional core materials often lies in their inability to maintain structural integrity at lower densities. To compensate, engineers are frequently forced to specify heavier cores, which undermines the efficiency gains of the overall structure. PMI foam addresses this by providing a superior density-to-strength ratio, ensuring that weight reduction does not result in a proportional loss of mechanical performance.

Unlike other foam cores that require a significant density increase to achieve specific load-bearing requirements, PMI foam maintains its mechanical properties across a wide spectrum of densities. This allows for the specification of lighter, non-structural panels or heavy-load-bearing floors without changing the core material family, simplifying supply chains while optimizing performance.

Comparative Analysis: PMI vs. PVC and PET Foams

When selecting materials for demanding applications such as refrigerated truck bodies or marine decking, it is essential to evaluate core materials based on equivalent densities. Data indicates that PMI foam consistently outperforms standard alternatives in key mechanical metrics. At equivalent densities, PMI foam delivers higher compressive strength and shear strength than PVC or PET foams. This distinct advantage makes it the default choice for applications where weight savings cannot compromise structural integrity or safety margins.

• Compressive Strength: PMI foam exhibits superior resistance to crushing forces compared to PVC and PET foams at the same density rating, ensuring sandwich panels withstand heavy static loads without denting or core collapse.
• Shear Modulus: With higher shear strength, PMI cores provide better panel stiffness and resistance to racking forces, which is critical for large surface areas like RV sidewalls or trailer roofs.
• Tensile Properties: The closed-cell structure of PMI foam offers better peel strength between the core and the skin materials, reducing the risk of delamination under flexural stress.

Impact Resistance and Energy Absorption

Beyond static load-bearing capabilities, the mechanical behavior of a sandwich panel under dynamic impact is a vital consideration for durability and safety. Experimental testing demonstrates the strong energy absorption capacity of PMI foam cores. For instance, in controlled impact scenarios where a 10 kg hammer strikes a specimen surface at a velocity of 1.5 m/s, PMI foam sandwich panels have shown the ability to retain better integrity than ceramic or UHMWPE panels.

This high energy absorption is largely derived from the foam’s ability to undergo plastic deformation without cracking. For constant total thickness, increasing the density of the PMI core layer enhances energy absorption capacity and increases the peak stress the face sheets can endure. additionally, under constant strain conditions, the energy absorption value of these panels increases with impact speed, making them suitable for applications subject to vibration or sudden shock loads, such as transportation flooring or industrial equipment housings.

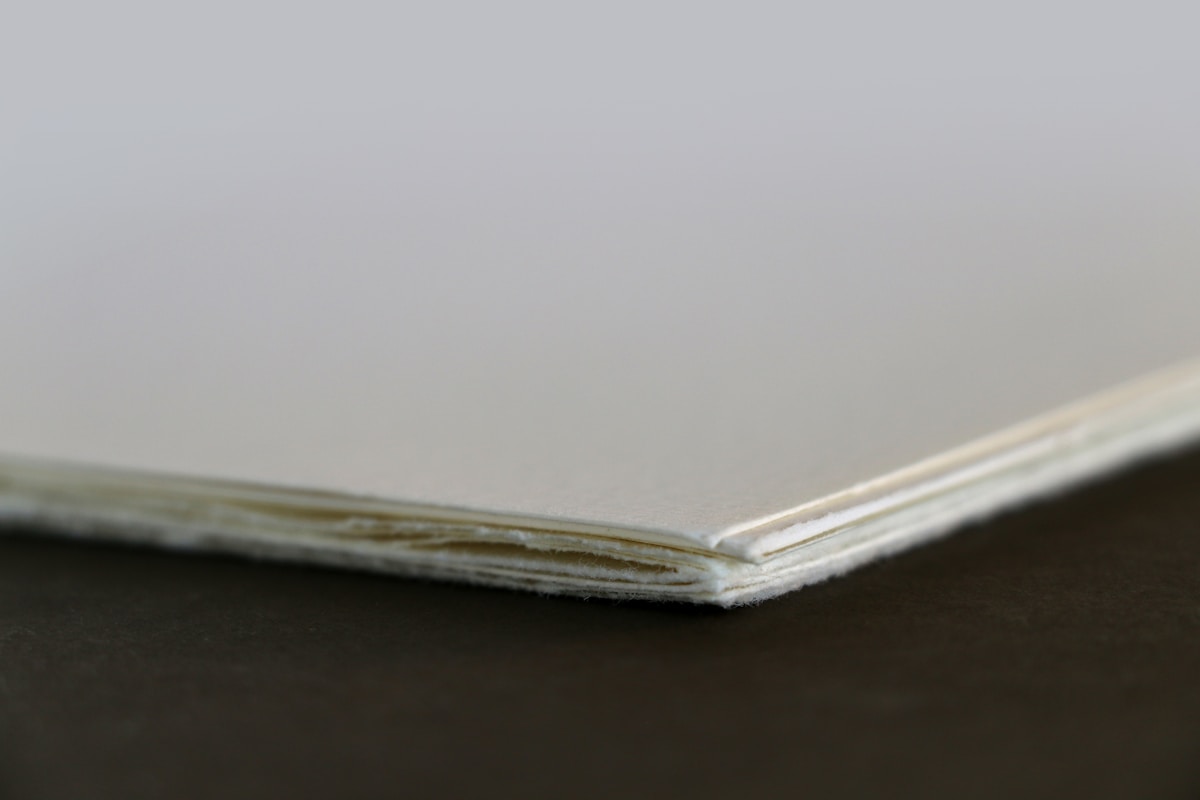

Heat Resistance and Processing Capabilities

High-Temperature Processing and Autoclave Compatibility

For B2B manufacturers utilizing advanced composite matrices, the primary processing constraint is often the core material’s inability to withstand elevated cure temperatures. PMI (polymethacrylimide) foam distinguishes itself in this sector by offering thermal resistance up to 200°C, depending on the specific grade selected. This capability is critical because it allows the use of high-performance resin systems, such as BMI (Bismaleimide), which cure at temperatures where traditional thermoplastic cores like PVC or PU would melt, deform, or release gases. By maintaining structural integrity during standard autoclave and vacuum press cycles, PMI foam eliminates the trade-off between adding heavy insulation layers to protect the core or risking core crush due to softening.

Minimizing Resin Uptake and Controlling Weight

Processing compatibility extends significantly to how the core interacts with resin systems during vacuum infusion or resin transfer molding. A critical failure point in sandwich panel fabrication is excessive resin absorption, which directly compromises the lightweight nature of the composite. PMI foam features a 100% closed-cell structure that resists resin penetration. Unlike open-cell or semi-closed alternatives, such as standard PVC foam cores which can absorb significant amounts of resin during the curing phase, PMI ensures the final laminate weight remains within strict design specifications. This reduction in resin uptake is not merely a weight-saving metric; it is essential for preventing the resin starvation of the laminate skin and ensuring consistent fiber-to-resin ratios.

Creep Resistance and Dimensional Stability

When subjected to the combined heat and pressure of an autoclave, inferior cores often exhibit creep—permanent deformation under load—which leads to thickness variations and structural weaknesses. PMI foam’s thermoset molecular structure provides superior creep resistance compared to thermoplastic foams. This rigidity ensures that the core maintains its precise thickness and flat profile throughout the processing cycle. For applications requiring tight tolerances, such as aerospace or high-end RV wall panels, this dimensional stability is non-negotiable. It prevents the core skin debonding that often occurs when a softened core shrinks or deforms unevenly during the cooling phase, thereby securing long-term durability against delamination.

Key Takeaway: PMI foam is the industry standard for high-temperature prepreg processing, enduring autoclave cycles up to 200°C without deformation while its closed-cell structure prevents resin-induced weight gain.

Why Weight-to-Strength Ratios Matter

Optimizing specific strength is the primary driver for fuel efficiency and payload capacity in transport and structural designs.

In the engineering of high-performance sandwich panels, weight-to-strength ratio—often quantified as specific strength or specific stiffness—is the critical determinant of structural efficiency. For B2B buyers and engineers, the core challenge lies in reducing overall mass to maximize payload or fuel economy without sacrificing the structural rigidity required for load-bearing components. A superior strength-to-weight ratio allows for the design of lighter structures that maintain or exceed the mechanical performance of heavier, traditional materials. This optimization is essential in sectors such as aerospace, marine, and specialized transportation where every kilogram of saved weight translates directly into operational cost savings and performance gains.

Defining Specific Stiffness and Structural Efficiency

Structural efficiency is not merely about using the lightest material available; it is about achieving the highest possible stiffness (modulus) and strength relative to density. When evaluating core materials, designers look for specific properties that allow for thinner core sections or lower overall densities while still resisting buckling and deformation. Advanced foam cores address the industry pain point of the “strength penalty,” where reducing density typically results in a disproportionate loss of mechanical integrity. By utilizing materials with high specific stiffness, engineers can design sandwich panels that withstand high flexural loads and dynamic impacts, ensuring longevity in demanding environments.

Performance Comparisons at Equivalent Densities

Benchmarking specific mechanical properties at equivalent densities highlights PMI foam’s distinct advantage over traditional materials. With a density range of 52–200 kg/m³, PMI foam supports a wide spectrum of applications, from lightweight non-structural panels to heavy-load-bearing floors. Notably, at the high end of this range (200 kg/m³), the material maintains a compressive strength of 12 MPa, ensuring superior load-bearing capacity without sacrificing performance.

This density-relative performance advantage directly translates into one of the most compelling benefits for aerospace and high-performance applications: weight reduction potential.

This density-equivalent performance advantage naturally extends to another critical consideration: the ability to achieve target mechanical properties at lower overall densities.

• Weight Reduction Potential: By achieving required strength metrics at lower densities, these cores facilitate significant mass reduction. This allows manufacturers to meet strict weight regulations while maintaining the safety margins required for industrial certification.

Critical Application Scenarios

The implications of high weight-to-strength ratios are most visible in high-end applications. In aerospace and wind energy, the reduction in mass directly improves aerodynamic efficiency and reduces fatigue on supporting structures. For marine and RV applications, a lighter core contributes to better fuel economy and increased vehicle range without making the vessel or vehicle fragile. additionally, in refrigerated truck bodies, a high strength-to-weight ratio ensures the insulation wall is rigid enough to withstand vacuum infusion pressures and operational loads, yet light enough to maximize cargo capacity. Selecting a core material based on these ratios ensures that the final sandwich panel solution is not just light, but structurally superior across its lifecycle.

Explore Our Foam Sandwich Panels.

View our range of lightweight composite panels designed for structural applications.

Browse Our Products →

Testing Performance in Critical Sectors

Dynamic Fatigue Testing in Transportation

In the transportation sector—specifically for refrigerated truck bodies and RV walls—static load-bearing capacity is only half the story. The real threat to structural integrity is fatigue. Unlike rigid building installations, mobile structures endure constant vibration from road roughness and engine rumble, coupled with impact shocks from cargo shifting. If a core material lacks sufficient fatigue resistance, it will develop micro-cracks within the cell walls, leading to progressive stiffness loss and eventual delamination from the skins.

Engineering-grade PMI foam is distinct in this regard due to its isotropic cell structure. During dynamic testing simulating 10^6 load cycles, PMI cores exhibit minimal creep and retain their shear modulus significantly better than cross-linked PVC or polyurethane alternatives. This resilience is critical for maintaining flatness and bond line integrity in truck body panels that must withstand years of torsional twisting without the “oil-canning” effect common in lesser cores.

Thermal and Mechanical Stability in Wind Energy

Wind turbine blades represent one of the most demanding environments for sandwich structures, subjecting the core to immense shear loads and fluctuating temperatures. A critical failure point in blade manufacturing is the mismatch between the core’s thermal expansion and the resin system during the high-temperature curing cycle. Many foam cores (such as standard XPS or PU) soften or deform under the exothermic heat of curing epoxy, leading to resin-rich areas or voids that compromise the laminate.

Polymethacrylimide (PMI) operates as a rigid thermoset material that maintains dimensional stability at processing temperatures up to 200°C. This capability allows it to survive standard prepreg curing cycles (typically 120°C-180°C) without crushing. In sector testing, this high-temperature tolerance ensures a 100% fiber-volume-fraction bond, meaning the structural skins transfer load directly to the core without stress concentrations. This stability allows for lighter, longer blades without the risk of core shear failure under high-speed flexing.

Hydrolytic Resistance for Marine and High-Humidity Applications

Marine decking and hull structures demand resistance to hydrolysis—the breakdown of material bonds due to prolonged moisture exposure. While balsa wood and some honeycomb cores can absorb water if the skin is breached, leading to rot and weight gain, PMI foam offers an impermeable barrier. As a 100% closed-cell material, it possesses a water absorption rate of less than 1% even when fully immersed, preventing internal freezing damage in cold climates.

Beyond simple water absorption, testing in critical marine sectors evaluates the material’s resistance to saltwater corrosion and the chemical environment of the resin system. PMI is chemically inert and compatible with polyester, vinylester, and epoxy resins. Unlike PET foams, which may suffer from hydrolytic degradation at elevated service temperatures, PMI retains its mechanical properties in wet, hot environments, making it the superior choice for hull bottoms and radar arches where failure is not an option.

Sector-Specific Performance Metrics

When selecting a core for critical applications, relying on basic density specs is insufficient. The following table contrasts how PMI foam performs against common alternatives (PVC and PU) under sector-specific stress tests.

Avoiding Outgassing in Vacuum Infusion

PMI foam’s 100% closed-cell structure eliminates outgassing and minimizes resin uptake during vacuum infusion, preventing voids, delamination, and skin-core debonding that plague open-cell cores.

Low Resin Uptake and Void Prevention Benefits

The closed-cell architecture of PMI foam fundamentally changes how vacuum infusion behaves compared to open-cell alternatives. During resin injection, cores with interconnected cell structures act like sponges, absorbing excess resin into their internal voids. This creates weight penalties and structural weak points that compromise the final laminate.

PMI foam prevents this absorption because each individual cell is completely sealed from its neighbors. The resin remains where it belongs—bonded to the skin materials rather than trapped inside the core. This maintains predictable weight targets and ensures consistent mechanical performance across the entire panel surface.

In our production facility, we regularly compare panels built with standard PVC cores against PMI cores under identical infusion conditions. The difference is immediately visible during post-cure weighing. PVC-core panels frequently arrive 15 to 25 percent heavier than specifications because the resin soaked into the open-cell structure during curing. PMI-core panels stay within tolerance.

• Void formation: Closed-cell PMI eliminates the air pockets that form when resin displaces trapped gas in open-cell cores during infusion.
• Delamination prevention: Without resin pooling inside the core, the skin-to-core bond remains uniform and structurally sound.
• Weight consistency: Panels hit target specifications without the over-weight penalties that require costly grinding and finishing.
• Yield improvement: Fewer rejected panels means lower scrap rates and better project economics for B2B buyers.

Outgassing Behavior During Vacuum Infusion Cycles

Outgassing represents one of the most destructive failure modes in vacuum infusion processing. When a core material releases trapped gases during the cure cycle, those gases create pressure pockets that push against the laminate skins. The result is blistering, delamination, and complete bond failure at the core-skin interface.

Open-cell foams like PVC and PET are particularly vulnerable because their cellular structure contains significant volumes of trapped air and manufacturing residues. Under vacuum conditions, these gases expand and migrate through the resin flow path, creating void networks that weaken the panel. The problem worsens at elevated cure temperatures where gas solubility decreases and trapped volumes expand further.

PMI foam eliminates this problem entirely. The manufacturing process creates a completely closed-cell structure where no internal gas can escape during infusion or cure. Our engineers have tested PMI panels through multiple autoclave cycles at temperatures exceeding 180 degrees Celsius with zero outgassing events. This thermal stability makes PMI the only foam core suitable for high-temperature prepreg and autoclave processes without risking core degradation or gas release.

Process Parameters for Defect-Free Laminate Curing

Achieving defect-free vacuum infusion requires precise control over multiple process variables. The combination of vacuum level, resin viscosity, infusion temperature, and cure cycle timing determines whether the final panel meets engineering specifications or requires costly rework.

• Vacuum level: Maintain -0.9 to -1.0 bar throughout infusion. PMI’s closed-cell structure tolerates full vacuum without gas evolution, unlike open-cell alternatives that may release trapped air at these pressures.
• Resin viscosity: Use low-viscosity vinyl ester or epoxy systems between 150 and 300 cP for optimal flow. Lower viscosity ensures complete wet-out without forcing resin into the core structure.
• Infusion temperature: Control resin temperature between 25 and 40 degrees Celsius during injection. Elevated temperatures reduce viscosity and improve flow front progression through the mold.
• Cure cycle: Follow manufacturer-specified ramp rates and hold times. PMI foam maintains dimensional stability through cure cycles up to 200 degrees Celsius depending on grade selection.
• Post-cure validation: Conduct ultrasonic C-scan testing to verify absence of voids and confirm complete skin-core bonding across the panel surface.

Our technical team works directly with manufacturers to optimize these parameters for specific project requirements. We conduct experimental testing on sample panels using the customer’s exact resin system, vacuum setup, and cure schedule. This approach identifies the optimal parameter window before full production begins, eliminating guesswork and reducing first-article rejection rates.

For refrigerated truck body construction, marine decking, and RV wall panels, the combination of PMI foam’s closed-cell structure and properly controlled infusion parameters produces laminates that meet the most demanding structural and durability requirements. The result is panels that maintain their design specifications throughout their service life without the quality issues that plague open-cell core alternatives.

Calculating Long-Term ROI

Transportation Economics and Weight Reduction

While the initial purchase price of structural core materials is often the primary focus during procurement, the operational savings derived from weight reduction frequently represent the most significant component of ROI. In sectors such as transportation, marine, and aerospace, a lighter core directly translates to lower fuel consumption or increased payload capacity. For refrigerated truck bodies and RV walls, utilizing a lower-density core without compromising stiffness allows fleet operators to maximize cargo weight limits. Over a typical service life of 10 to 15 years, the cumulative fuel savings achieved by reducing overall vehicle mass can exceed the initial material cost differential by a substantial margin.

Additionally, weight savings impact the logistics of the manufacturing supply chain itself. Lighter raw materials are easier to handle, require less energy to maneuver within the factory, and reduce freight costs when shipping finished panels to assembly sites. When calculating ROI, engineers must apply a “lifecycle weight multiplier” to every kilogram saved, factoring in fuel costs, regulatory carbon taxes, and potential revenue gains from increased payload.

Yield Improvement and Scrap Rate Reduction

High scrap rates in composite manufacturing are a silent profit killer. Unlike rigid honeycomb cores, which are prone to node failure and require extensive edge-sealing operations that introduce potential defects, solid foam materials offer a continuous, isotropic structure that forgives minor handling variances. The primary ROI driver here is not just the cost of the core material saved, but the preservation of high-value skins and resin systems.

Consider the cost structure of a typical sandwich panel: the core may represent only 15-20% of the total material cost, while carbon fiber or glass reinforcement and resin systems constitute the remainder. If a core crushes during machining or a bond line fails due to surface incompatibility, the entire panel is scrapped. By selecting a core with superior machinability and predictable resin uptake, manufacturers significantly lower the probability of catastrophic failure. A reduction in the scrap rate from 5% to 1% effectively doubles the margin on the production run, a financial impact that far outweighs a modest increase in core price.

Cycle Time Optimization and Processing Efficiency

Time on the mold or in the autoclave is one of the most expensive overheads in high-performance composite manufacturing. Processing efficiency gains are realized when the core material can withstand rapid thermal ramps without distortion, outgassing, or crushing. Certain advanced foam materials maintain dimensional stability at elevated temperatures, allowing manufacturers to utilize faster curing cycles for high-temperature prepregs.

Additionally, the ease of fabrication directly impacts labor hours. Cores that can be cut, routed, and thermoformed without specialized potting or filleting procedures reduce the touch-labor required per part. In a high-volume production environment, shaving 15 minutes of labor time off each panel cycle can yield thousands of dollars in monthly savings and increase overall factory throughput. The ROI calculation here should quantify the labor rate reduction and the increase in daily production capacity against the cost per cubic meter of the core material.

Total Cost of Ownership (TCO) Methodology

To accurately evaluate long-term value, procurement teams must shift from a “Price per Unit” mindset to a “Total Cost of Ownership” model that accounts for processing, performance, and lifecycle maintenance.

A Reliable TCO calculation for structural core materials aggregates several variable costs that are often treated in isolation. The methodology requires mapping the entire lifecycle of the panel, from raw material intake to final decommissioning. Key variables include the core’s contribution to thermal insulation (reducing HVAC energy costs in building applications), its resistance to moisture ingress (eliminating expensive repair schedules), and its fatigue life under dynamic loads.

• Acquisition Cost: Base price per volume, including shipping and handling.
• Fabrication Cost: Labor hours for machining, shaping, and potting; consumables used (adhesives, fillers).
• Process Yield Loss: Financial impact of scrapped parts multiplied by the probability of defect occurrence.
• Operational Efficiency: Fuel savings, payload increases, and energy insulation benefits over the service life.
• Maintenance & Replacement: Projected costs for repairs due to water ingress, impact damage, or core degradation.

By assigning concrete dollar values to these factors, B2B buyers can visualize the “break-even point” where a premium core material becomes cheaper than a budget alternative due to lower operational drag. This data-driven approach strips away the ambiguity of “quality” and replaces it with a clear financial forecast.

Conclusion

PMI foam stands apart when your sandwich panels face real thermal and structural demands. You now know how density, compression strength, and resin uptake interact — and why PVC foam falls short in high-temperature cure cycles. The weight savings translate directly into fuel costs and payload capacity, especially for refrigerated bodies and marine decks. Our engineering team has supported hundreds of projects where outgassing defects killed yield, and we see the same pattern repeat: low-density cores with poor resin compatibility create voids that no amount of process tweaking can fully eliminate.

• Request a technical data sheet and compare density-to-strength ratios across PMI grades before specifying.
• Confirm your resin system compatibility through a small-scale infusion trial with your chosen core thickness.
• Ask our engineering team about ISO 9001-certified manufacturing practices and early-stage design questions — no commitment required.
