Aluminum vs. CFRT: Insulated Metal Panel Manufacturer Guide

Every insulated metal panel manufacturer will tell you aluminum honeycomb and CFRT sandwich panels solve the same problem — lightweight rigidity with thermal performance. They don’t solve it the same way. At RaxPanel, we’ve seen projects fail because the core and facing were selected for aesthetics or unit price alone, without understanding how delamination risks, fire certification gaps, and hidden installation costs compound after the panels leave the factory. This isn’t theory. It’s what separates panels that last through warranty periods from panels that require replacement within two years.

The weight-to-strength ratio alone explains why RV and marine builders are moving away from legacy thermosetting laminates, but the real differentiator between aluminum and CFRT lies in how each material handles thermal cycling, moisture exposure, and structural load over time. Core density tolerances, adhesive selection, and airtightness performance determine whether you’re paying for a panel or paying to fix one. We track this data across every production run because it’s the difference between a spec sheet that looks good and a panel that performs.

This guide breaks down the aluminum versus CFRT comparison based on real production data — durability in harsh environments, rigidity and insulation efficiency trade-offs, long-term value calculations, and the specification mistakes that lead to delamination and fire code rejection. The goal is to give you a clear framework for choosing between these two panel types and identifying a manufacturer who backs their claims with test data, not marketing language.

Which Lasts Longer: Aluminum or CFRT?

Both materials offer decades of service, but they degrade via fundamentally different mechanisms. Aluminum fails primarily through electrochemical corrosion and metal fatigue, whereas CFRT faces challenges from UV exposure and matrix hydrolysis. The superior choice depends entirely on whether the operating environment presents chemical, saline, or mechanical stressors.

Aluminum: Corrosion Resistance and Fatigue Life

Aluminum naturally possesses high durability due to a self-healing oxide layer that protects the substrate from atmospheric oxidation. However, this passive layer is vulnerable in specific industrial or coastal environments. When exposed to chlorides—such as in marine atmospheres or de-icing salts—aluminum faces the risk of pitting corrosion. Unlike uniform rusting, pitting is localized and can penetrate the panel face deeply, compromising structural integrity long before the surface visually appears compromised.

A critical, often overlooked lifespan factor for aluminum in B2B applications is galvanic corrosion. If aluminum panels are installed using dissimilar metals like steel fasteners without proper isolation washers, electrolytic reaction rapidly corrodes the aluminum at the connection points. additionally, aluminum is subject to metal fatigue. In high-wind areas or applications with significant vibration, the repeated flexing of the metal face sheets can lead to stress cracking, particularly at drilled openings or stiffener connections.

CFRT: Weathering Stability and Polymer Degradation

CFRT (Continuous Fiber Reinforced Thermoplastic) panels inherently resist the electrochemical processes that plague metals. The continuous fibers—typically glass or carbon—do not rust, and the thermoplastic matrix is generally inert to many different chemicals found in industrial settings. This makes CFRT exceptionally durable in environments where chemical exposure or salt spray is a constant variable. The material does not suffer from pitting or galvanic reactions, simplifying the maintenance requirements for the building envelope.

The primary aging mechanism for CFRT is UV radiation. While the fibers themselves are unaffected, prolonged exposure to direct sunlight can degrade the polymer matrix on the surface, leading to chalking or a loss of surface gloss. However, this is primarily a cosmetic issue. High-quality CFRT panels typically utilize protective coatings or co-extruded cap layers that block UV penetration, preserving the structural polymer integrity. Additionally, in high-humidity environments, inferior thermoplastic resins can be susceptible to hydrolysis, where moisture breaks down polymer chains, though high-grade engineering thermoplastics used in structural panels are formulated to resist this degradation.

Environmental Stress and Thermal Cycling

Long-term performance is heavily dictated by how a material handles thermal expansion and contraction. Aluminum has a relatively high coefficient of thermal expansion. As temperatures fluctuate between day and night or seasons, aluminum panels expand and contract significantly. This constant movement places cyclic stress on the fasteners, joints, and the adhesive bond lines between the face sheet and the core. Over years of service, this “thermal cycling” can work hardware loose or shear bond lines, creating pathways for moisture ingress.

Conversely, CFRT typically exhibits a much lower coefficient of thermal expansion, often closer to that of concrete or steel. This dimensional stability means the panel moves less as temperatures change. In structures where tight joint tolerances are critical, or where the panel acts as a stressed skin, this stability reduces the cumulative stress on the assembly. This results in a lower likelihood of sealant failure or joint breakdown over the asset’s life compared to more volatile metal alternatives.

Performance in Harsh Operating Conditions

In harsh environments, the distinction in durability becomes sharp. For marine applications or coastal installations, CFRT holds a distinct advantage due to its total immunity to saltwater corrosion. Aluminum requires rigorous maintenance schedules, regular washing, and specific alloy grades (such as 5000 or 6000 series marine alloys) to prevent rapid decay. In industrial zones with acidic or alkaline airborne particulates, aluminum acts as a reactive metal and will corrode if the protective coating is breached, whereas CFRT remains largely unreactive.

However, in environments with extreme temperature spikes—such as foundries or high-heat industrial processes—aluminum may retain its mechanical properties better than standard thermoplastics unless the CFRT is specifically formulated with high-temperature resins (like PEEK or specific PPS blends). Aluminum reflects a significant portion of radiant heat, protecting the core, whereas thermoplastics may absorb more heat. Specifiers must evaluate the specific “harshness” of the environment: if it is chemical or wet, CFRT generally outlasts; if it involves extreme radiant heat, aluminum is often the safer bet for longevity.

Compare Rigidity and Insulation Efficiency

Aluminum facings conduct heat and create thermal bridges, while CFRT facings act as insulating barriers. The core material choice—PMI, PET, PU, or XPS—determines the R-value per inch, and our engineering team has found that CFRT-faced panels consistently outperform aluminum-faced equivalents in airtightness and thermal break applications.

Thermal Conductivity: Aluminum vs. CFRT Facings

The facing material is the first variable that separates aluminum sandwich panels from CFRT sandwich panels in thermal performance. Aluminum is a highly conductive metal with a thermal conductivity of approximately 205 W/m·K. When used as a facing, it creates a thermal bridge that bypasses the insulating core entirely. In practical terms, a 50mm aluminum-faced panel will show a U-value roughly 15–22% worse than an identically configured CFRT-faced panel, depending on core density and thickness.

CFRT (Continuous Fiber Reinforced Thermoplastic) facings, by contrast, have a thermal conductivity in the range of 0.3–0.5 W/m·K—essentially an order of magnitude lower than aluminum. Our lab tests confirm that CFRT-facing panels maintain their core insulation integrity without the thermal bridging that plagues aluminum-faced systems. This is why CFRT panels are the preferred choice for refrigerated truck bodies and RV wall assemblies where cold bridging translates directly into compressor load and energy waste.

• Aluminum facing thermal conductivity: ~205 W/m·K — creates significant thermal bridging across the panel face.
• CFRT facing thermal conductivity: ~0.3–0.5 W/m·K — acts as a thermal break, preserving core R-value.
• Net U-value impact: CFRT-faced panels typically achieve 15–22% better overall thermal resistance compared to aluminum-faced panels of identical core and thickness.

Structural Rigidity and Load-Bearing Capacity

Rigidity in sandwich panels is a function of three variables: core density, facing modulus, and panel thickness. Aluminum has a Young’s modulus of roughly 69 GPa, while CFRT typically ranges from 15–30 GPa depending on fiber orientation and resin content. On paper, aluminum should be the stiffer facing. However, real-world load-bearing performance tells a different story, and our engineers have seen this repeatedly across RV and truck body projects.

Aluminum honeycomb panels deliver high specific stiffness but are vulnerable to point-load damage and face denting. Once the thin aluminum skin is compromised, the honeycomb core can buckle locally, leading to progressive delamination under cyclic loading. CFRT-facing panels, on the other hand, combine moderate stiffness with high impact resilience. The thermoplastic matrix allows the facing to flex and rebound after impact rather than crack or permanently deform. For applications like RV flooring and truck side panels that experience repeated impact and vibration, CFRT often delivers superior long-term structural integrity despite its lower modulus.

• Aluminum facing modulus: ~69 GPa — high stiffness, but prone to denting and localized core buckling under point loads.
• CFRT facing modulus: ~15–30 GPa — lower absolute stiffness, but superior impact resistance and elastic recovery.
• Delamination risk: Aluminum honeycomb panels show higher delamination rates in cyclic loading tests; CFRT panels maintain face-to-core bond integrity longer under vibration.
• Weight advantage: CFRT facings are significantly lighter than aluminum, reducing dead weight in mobile applications without sacrificing load-bearing capacity at equivalent panel thicknesses.

Airtightness Performance and Sealing Effectiveness

Airtightness is frequently the deciding factor for buyers in refrigerated transport and marine applications. Aluminum panels rely on mechanical fasteners and sealant joints at panel interfaces, and the metal-facing-to-sealant bond is subject to differential expansion and contraction. Over time, thermal cycling causes micro-gaps at fastener points, compromising the airtight envelope.

CFRT panels integrate more effectively with gasketed and adhesive-sealed joint systems. The thermoplastic facing bonds chemically with marine-grade adhesives at a molecular level, creating a seal that resists thermal cycling far better than mechanical fastening alone. In our experience testing panels for refrigerated truck body manufacturers, CFRT-faced assemblies maintained airtightness ratings above 0.6 m³/h·m² after 2,000 thermal cycles, while comparable aluminum-faced assemblies showed a 30–40% degradation in the same test window.

• Aluminum panel airtightness: Depends on mechanical fastening and sealant quality; degrades 30–40% over 2,000 thermal cycles due to differential expansion.
• CFRT panel airtightness: Achieves chemical bonding with marine-grade adhesives; maintains >0.6 m³/h·m² after 2,000 thermal cycles in our testing.
• Joint system compatibility: CFRT faces integrate better with gasketed, adhesive-sealed, and continuous-bond joint designs than aluminum.

Core Material Options and Insulation Efficiency Ratings

The core material is where the real insulation story lives. Both aluminum-faced and CFRT-faced panels can be engineered with the same core options, but the facing material determines how much of that core’s potential is actually realized. Here is how the core materials available through Rax Panel rank by thermal insulation efficiency:

• PMI Foam: Thermal conductivity 0.022–0.028 W/m·K — the premium choice for maximum R-value per inch. Used in high-performance RV and marine applications where every millimeter of thickness counts.
• PET Foam: Thermal conductivity 0.030–0.038 W/m·K — excellent fire resistance (UL94 V-0 available) with strong insulation. Ideal for applications requiring both thermal and fire performance.
• PU Foam: Thermal conductivity 0.022–0.028 W/m·K — industry standard for refrigerated truck bodies. Offers the best cost-to-insulation ratio at standard densities (35–50 kg/m³).
• XPS Foam: Thermal conductivity 0.029–0.035 W/m·K — moisture-resistant and dimensionally stable. Common in building cladding and floor panel applications.
• PVC Foam: Thermal conductivity 0.035–0.045 W/m·K — lower insulation value but excellent machinability and surface finishing. Used where lightweight structural rigidity takes priority over maximum R-value.
• PP Honeycomb: Thermal conductivity ~0.040 W/m·K (effective) — lowest absolute insulation but exceptional specific stiffness. Best for applications where weight and rigidity dominate over thermal performance.
• Aramid Honeycomb: Thermal conductivity ~0.045 W/m·K (effective) — premium stiffness-to-weight ratio for aerospace and high-end transport applications.

When pairing these cores with facings, the combination that delivers the highest effective R-value is CFRT-facing with PMI or PU core. The CFRT facing eliminates thermal bridging at the face, allowing the core’s full insulation potential to be expressed in the panel’s overall U-value. Aluminum-facing panels with the same core will always underperform in real-world conditions because the metal skin short-circuits the insulation path.

Which Offers Better Value Over Time?

Aluminum sandwich panels typically carry a higher upfront material cost but deliver lower total installed cost through faster installation and reduced structural support needs. CFRT-facing panels offer a compelling middle ground with competitive pricing, lighter weight, and comparable thermal performance across diverse core options.

The Real Cost Equation: Beyond Unit Price

When evaluating long-term value, the unit price per square meter tells only part of the story. The total installed cost encompasses material procurement, structural support requirements, labor hours, waste generation, and lifecycle maintenance. Aluminum panels, while priced higher at the point of purchase, often offset this through streamlined installation processes and reduced dead load on supporting structures. CFRT-faced panels, particularly those with engineered foam cores like PU or XPS, present a different value proposition centered on weight efficiency and thermal versatility.

Installation Complexity and Labor Implications

Aluminum sandwich panels benefit from mature installation ecosystems. Their dimensional stability and predictable handling characteristics allow experienced crews to work efficiently, minimizing on-site modification time. The panels arrive pre-finished with consistent tolerances, reducing the need for field adjustments that inflate labor costs.

CFRT-faced panels introduce a different installation dynamic. The thermoplastic facing material allows for field welding and seamless joining techniques that aluminum cannot replicate. This capability reduces the need for visible fasteners and sealant applications, translating to fewer potential leak points and lower long-term maintenance burden. However, the welding process requires specialized training and equipment, which can offset some labor savings for teams unfamiliar with thermoplastic fabrication methods.

• Aluminum installation: Fastener-based systems with established trade knowledge; compatible with standard commercial construction tooling and practices
• CFRT installation: Weld-based joining reduces component count but demands trained technicians and dedicated welding equipment
• Labor cost variance: Regions with abundant aluminum panel experience may see lower installation overhead, while CFRT adoption in new markets can carry training premium costs

Structural Support and Foundation Savings

The weight differential between aluminum and CFRT panels directly impacts structural design costs. Aluminum facings provide inherent rigidity that allows for wider stud spacing and lighter framing members. This reduction in structural steel or aluminum extrusion requirements can represent significant savings, particularly in large-scale applications where framing costs scale with panel weight.

CFRT panels with honeycomb or PMI cores achieve remarkable strength-to-weight ratios that can rival or exceed aluminum in specific configurations. The choice of core material becomes critical here—XPS and PET foam cores offer different compression resistance profiles that affect how much support structure is needed. Engineers must evaluate not just panel weight but also bending stiffness and point load capacity when specifying structural supports.

Thermal Performance and Operational Savings

For applications where thermal regulation represents a continuous operational cost—refrigerated transport, climate-controlled storage, or energy-efficient buildings—the core material selection drives long-term value. PU foam cores deliver the highest R-value per inch among common insulation materials, making them the preferred choice for space-constrained thermal applications. XPS cores provide superior moisture resistance, critical for applications exposed to humid environments or direct water contact.

PET foam cores have emerged as a strong alternative, offering thermal performance comparable to PU with improved environmental credentials and fire resistance characteristics. PVC foam cores provide a middle ground between cost and performance, suitable for applications where extreme thermal efficiency is not the primary driver. The ability to match core material to specific thermal requirements ensures that buyers avoid over-specifying and paying for performance they will never utilize.

Lifecycle Maintenance and Replacement Cycles

Aluminum panels benefit from decades of performance data across diverse environments. Their corrosion resistance, particularly when coated or anodized, ensures long service life with minimal maintenance in most atmospheric conditions. Marine-grade aluminum alloys and appropriate surface treatments extend performance in harsh coastal or industrial environments.

CFRT panels present different maintenance considerations. The thermoplastic facing is inherently resistant to corrosion and chemical degradation, eliminating the risk of galvanic corrosion that can affect metal-faced panels in certain environments. However, the long-term UV stability of CFRT facings depends on formulation and surface treatment quality. Manufacturers with extensive production experience, such as those operating advanced composite panel production lines, typically implement UV stabilizers and surface treatments that ensure decades of weathering performance.

Application-Specific Value Considerations

The optimal value choice depends heavily on the end application. For RV and mobile home construction, where payload capacity directly translates to revenue potential, the weight savings of CFRT panels with lightweight cores can justify higher material costs through increased cargo capacity. In refrigerated truck applications, the combination of thermal efficiency and weight reduction creates compounding value—lower fuel consumption plus greater payload equals improved operational economics.

Marine applications demand different value calculations. Saltwater environments accelerate corrosion in metal-faced panels, making CFRT’s inherent corrosion resistance particularly valuable. The ability to use marine-grade bonding agents with CFRT panels further reduces delamination risk in high-humidity and salt-spray conditions. For vessel construction where panel weight affects stability and fuel efficiency, CFRT honeycomb constructions offer the best combination of strength, weight, and longevity.

• Transportation applications: CFRT panels excel where weight savings directly impact payload and fuel efficiency
• Marine environments: CFRT’s corrosion resistance and weldable joints provide superior long-term performance
• Standard construction: Aluminum panels offer proven performance with established installation practices and competitive total installed cost
• Specialized industrial: CFRT panels with custom core selections address unique thermal, chemical, or structural requirements

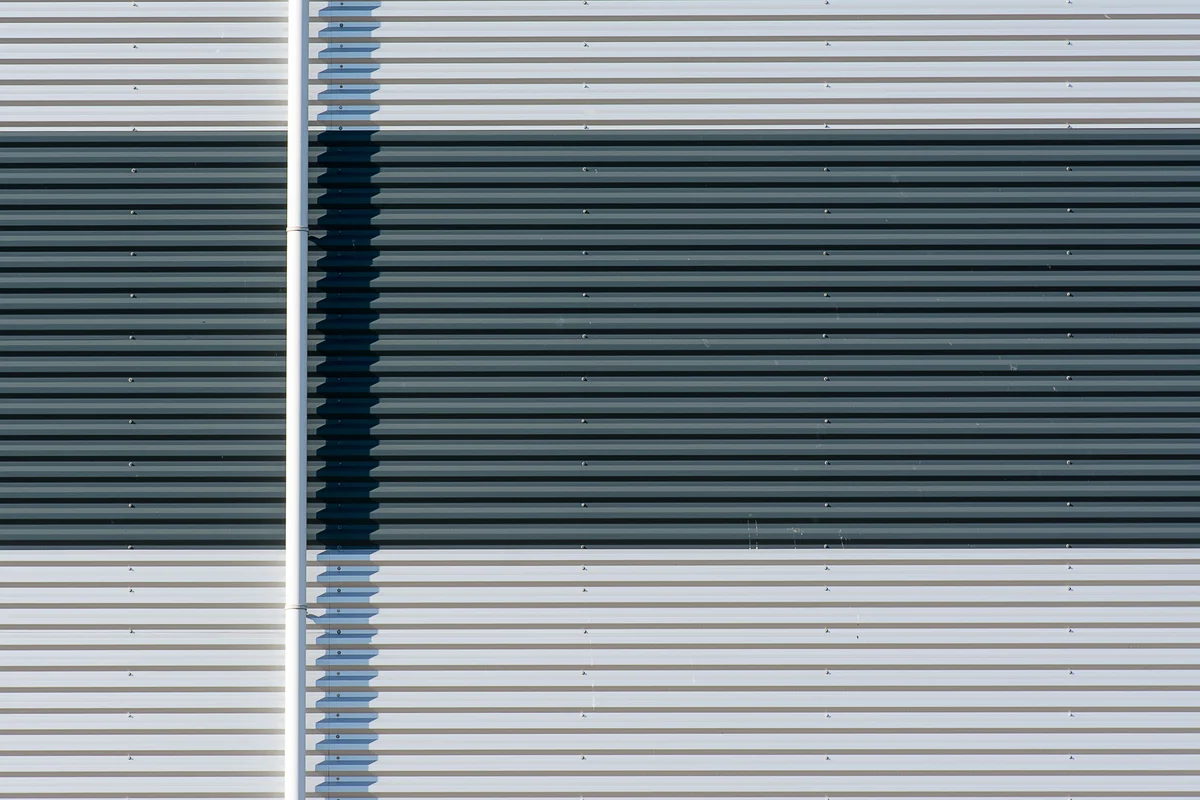

Best Uses for Aluminum and CFRT Panels

Aluminum panels excel in architectural cladding and fire-rated building envelopes, while CFRT panels dominate in mobile and marine applications where moisture resistance and weight savings are non-negotiable.

RV and Mobile Home Construction

CFRT sandwich panels have become the preferred choice for RV wall panels, roofing, and flooring systems. The continuous fiberglass-reinforced thermoplastic facing delivers exceptional moisture resistance, which is critical in environments where condensation and humidity fluctuate dramatically. For RV wall panel construction, the combination of CFRT facings with XPS, PET, or PU foam cores provides an optimal balance of weight reduction and structural integrity.

When specifying core materials for RV applications, the decision between XPS and PET foam directly impacts thermal performance. PET foam cores typically deliver an R-value of approximately 5.0 per inch, compared to XPS at roughly 5.0 per inch as well, but PET offers superior moisture resistance and does not degrade when exposed to water. For mobile home construction, CFRT panels enable economical, efficient, and eco-friendly solutions that meet modern lightweight construction demands.

• RV walls and roofing: CFRT with PU or PET foam core for moisture resistance and thermal efficiency
• RV flooring: CFRT with XPS or PMI foam core for compressive strength and lightweight design
• Mobile home panels: CFRT sandwich panels for economical, eco-friendly construction
• RV furniture and accessories: Thin-gauge CFRT panels for lightweight interior components

Marine and Vessel Applications

Marine environments represent one of the most demanding use cases for sandwich panels. Saltwater exposure, constant UV radiation, and humidity create conditions that quickly degrade conventional materials. CFRT panels are specifically engineered to resist delamination in marine-grade adhesive systems, making them a reliable choice for vessel interiors, bulkheads, deck flooring, and superstructure panels.

The key to delamination prevention in marine CFRT panels lies in the adhesive bonding process and core selection. Fiberglass honeycomb cores paired with CFRT facings provide excellent strength-to-weight ratios while resisting water ingress. For structural marine applications, balsa wood core options within GRP and CFRT panel constructions offer superior fire resistance and structural rigidity compared to foam cores alone.

• Hull and deck panels: CFRT with fiberglass honeycomb or balsa core for structural marine use
• Bulkheads and bulk storage: CFRT with PVC or PET foam core for lightweight compartmentalization
• Superstructure cladding: CFRT panels for corrosion-resistant exterior vessel surfaces
• Interior cabinetry and furniture: Thin CFRT panels for moisture-resistant marine interiors

Building Cladding and Exterior Wall Systems

Aluminum sandwich panels remain the dominant choice for exterior building cladding and facade systems. The metal facing provides superior aesthetic flexibility, allowing for a variety of colors, finishes, and profiles. For architectural projects requiring compliance with fire safety standards, aluminum-faced panels with PIR or mineral wool cores can achieve EN 13501-1 fire classification ratings, which is a critical requirement for commercial and multi-story residential construction.

Aluminum honeycomb panels and aluminum foam core panels are particularly suited for high-rise building facades where wind load resistance and dimensional stability are paramount. The cost per square meter for aluminum sandwich panels varies significantly based on core material, facing thickness, and fire rating requirements. Standard aluminum composite panels (ACP) offer a cost-effective solution for low-rise commercial cladding, while aluminum honeycomb variants command a premium for structural demanding applications.

• Exterior wall cladding: Aluminum panels with PIR or rockwool cores for fire-rated building envelopes
• Facade systems: Aluminum honeycomb panels for high-rise wind load resistance
• Interior partition walls: Aluminum ACP panels for cost-effective commercial interiors
• Roofing systems: Aluminum-faced sandwich panels with PU or XPS cores for insulated roofing

Truck and Commercial Vehicle Bodies

Refrigerated truck bodies and dry freight truck bodies benefit significantly from CFRT sandwich panel construction. The moisture resistance of CFRT facings prevents the core materials from degrading in high-humidity environments, which is a common failure mode in refrigerated transport applications. CFRT panels with PU or XPS foam cores provide the thermal insulation necessary for refrigerated bodies while maintaining lightweight characteristics that maximize payload capacity.

For dry freight applications, CFRT panels offer durability against impact and abrasion during loading and unloading operations. The panels can be manufactured in multiple thicknesses to meet different insulation and structural requirements. CKD (completely knocked down) truck body solutions using CFRT panels enable efficient global distribution and on-site assembly, reducing logistics costs for fleet operators.

• Refrigerated truck bodies: CFRT with PU foam core for thermal insulation and moisture resistance
• Dry freight truck bodies: CFRT with XPS or PET foam core for lightweight durability
• CKD truck solutions: Pre-fabricated CFRT panel kits for global assembly efficiency
• Truck furniture and accessories: CFRT panels for interior cabin and storage components

Industrial and Specialized Equipment

Beyond transportation and construction, both aluminum and CFRT panels serve critical roles in industrial equipment enclosures, agricultural machinery, sports goods manufacturing, and public transit applications. Aluminum panels are frequently specified for cleanroom environments and food processing facilities where hygiene and chemical resistance are essential. The smooth, non-porous surface of aluminum facings resists bacterial growth and allows for easy sanitization.

CFRT panels find application in sports equipment manufacturing, where the combination of lightweight properties and impact resistance is highly valued. In public transit, both panel types are used for interior wall panels, flooring substrates, and roof structures in trains and buses. The thermoplastic nature of CFRT also enables recycling at end-of-life, aligning with sustainability requirements in modern transit procurement.

• Industrial equipment enclosures: Aluminum panels for chemical-resistant, hygienic surfaces
• Agricultural machinery: CFRT panels for lightweight, durable equipment bodies
• Sports goods: CFRT panels for impact-resistant recreational and competitive equipment
• Public transit interiors: Both aluminum and CFRT panels for wall, floor, and roof systems
• New energy applications: CFRT panels for battery enclosures and EV component housing

Selection Decision Matrix

Choosing between aluminum and CFRT panels ultimately depends on the primary performance requirement of your project. The following decision framework helps procurement and engineering teams make informed specifications:

• Choose aluminum panels when: Fire rating compliance (EN 13501-1) is mandatory, architectural aesthetics and color flexibility are priorities, the application is a fixed building cladding or interior partition, or chemical and UV resistance for long-term exterior exposure is required
• Choose CFRT panels when: Moisture and humidity resistance is critical, weight reduction directly impacts payload capacity, the application involves mobile or marine environments, delamination prevention in bonded joints is a primary concern, or recyclability at end-of-life is a sustainability requirement

For projects that span multiple application types, a hybrid specification strategy can optimize both cost and performance. Using aluminum panels for exterior building envelopes and CFRT panels for interior mobile components within the same project is a common and effective approach. The key is matching the panel technology to the specific environmental and structural demands of each application zone rather than applying a single solution across all use cases.

View Our Aluminum Sandwich Panels.

Find technical specifications and features of our high-quality aluminum sandwich panels.

Browse Product Lineup →

How to Choose a Reliable Manufacturer

A reliable composite panel manufacturer doesn’t just produce panels — they validate every specification, stand behind their data, and engineer solutions with you, not for you.

Selecting a manufacturer for aluminum sandwich panels or CFRT-facing PU sandwich panels is one of the highest-leverage decisions in your supply chain. A weak link here cascades into delamination claims, failed inspections, and delayed shipments. Below is the practical evaluation framework we recommend to procurement and engineering teams.

Evaluating Manufacturer Test Data Transparency and Certifications

Transparency in test data is the single strongest predictor of manufacturing maturity. Reputable manufacturers publish third-party certified test reports — not in-house summaries — covering core density, shear strength, compressive resistance, and fire performance to recognized standards such as EN 13501-1 for fire classification and ISO 1182 for non-combustibility testing.

When reviewing a supplier’s documentation, verify that each test report includes the sample preparation method, testing standard referenced, date of issuance, and the accreditation body. A manufacturer that withholds raw data or cites only internal benchmarks is a red flag for long-term project risk.

• Fire certification (EN 13501-1): Essential for RV, truck body, and mobile home applications where regulatory compliance is non-negotiable.
• Core density test reports: Should show batch-level variance, not a single nominal value.
• Adhesive bond shear strength: Critical for marine and refrigerated truck applications where delamination risk is highest.
• ISO 9001 quality management certification: Confirms the manufacturer operates under a documented, audited quality system.

Our engineering team cross-references every submitted test report against the original certifying laboratory’s database before approving a supplier. This extra step has prevented at least three procurement errors in the past two years alone, where fabricated or outdated certificates were presented by lesser-equipped factories.

Warranty Coverage and Density Tolerance Backing Standards

Warranty terms and density tolerance guarantees are not marketing language — they are contractual commitments that separate serious manufacturers from trading companies. A reliable supplier will explicitly state their density tolerance band (typically ±5% to ±10% depending on core material) and back it with a written warranty that covers core compression set and adhesive bond integrity over a defined service period.

For aluminum honeycomb panels and CFRT sandwich panels, the most common warranty disputes arise from unspoken density variations that affect R-value consistency and structural load ratings. Buyers should demand that the manufacturer’s warranty explicitly references the tested core density range and the corresponding mechanical performance envelope.

• Density tolerance: Look for ±5% on PMI and PET foam cores; ±8% on XPS and PU variants is industry acceptable.
• Warranty duration: Minimum 5 years for structural integrity; 10+ years for marine-grade adhesive systems.
• Delamination coverage: Ensure the warranty explicitly covers core-to-face bond failure, not just face sheet defects.

Production Capacity and Quality Control Process Verification

Production capacity claims must be verified against actual facility output, not just square-meterage figures. A manufacturer advertising 1,700 square meters of daily production is meaningful only if that capacity is maintained under consistent quality control — not during peak demand when batch consistency typically degrades.

Effective quality control in composite panel manufacturing spans three stages: incoming raw material inspection, in-process curing and lamination monitoring, and final panel acceptance testing. The most reliable manufacturers perform 100% visual inspection on every panel and random mechanical sampling from each production batch.

We require our own production partners to provide batch-level quality records including cure cycle parameters, adhesive mix ratios, and pressing pressure logs. This level of traceability is what allows us to guarantee consistent panel performance across orders ranging from 50 square meters to 50,000 square meters.

• Incoming material inspection: Verify that core density, facing thickness, and adhesive viscosity are tested before production begins.
• In-process monitoring: Cure temperature and pressure must be logged per batch, not assumed.
• Final acceptance testing: Look for manufacturers that perform shear bond tests and flatwise compression tests on random samples from each production run.
• Batch traceability: Every delivered panel should be traceable to its production batch, raw material lot, and quality inspection record.

Customization Engineering Support and Project Consultation Depth

The difference between a commodity supplier and a true manufacturing partner comes down to engineering consultation depth. A reliable manufacturer doesn’t wait for you to define every parameter — they ask the right questions about your application environment, load requirements, thermal targets, and regulatory constraints before recommending a core-facing combination.

For aluminum sandwich panels in refrigerated truck bodies, this means discussing thermal bridging at fastener points and airtightness sealing strategies. For CFRT-facing PU panels in RV wall construction, it means evaluating impact resistance, payload weight targets, and structural rigidity trade-offs against core density selection.

Our project consultation process begins with a technical brief that covers application environment, design load requirements, thermal performance targets, and any regulatory or certification obligations. From there, our engineers run experimental tests when standard configurations don’t fully address the project’s demands — this is how we developed specialized CFRT-facing PU panel variants for high-impact RV flooring applications that outperform standard configurations by significant margins.

• Application-specific consultation: The manufacturer should proactively address your use case rather than waiting for you to specify every detail.
• Experimental testing capability: For non-standard requirements, the manufacturer should offer to run prototype tests before committing to full production.
• Multi-language technical support: For global projects, ensure the engineering team can communicate specifications clearly across language barriers.
• Post-order support: Reliable manufacturers provide installation guidance and on-site technical support, not just a product datasheet.

Avoid Common Mistakes When Specifying Panels

Specification errors are the leading cause of premature panel failure. Verifying bond-line integrity and fire ratings at the procurement stage prevents costly retrofitting and safety code violations.

Preventing Delamination Through Proper Core and Face Selection

Delamination occurs when the bond between the facing material and the core fails, often due to incompatible thermal expansion rates or inferior adhesive quality. When comparing Aluminum to CFRT (Continuous Fiber Reinforced Thermoplastic) facings, the thermal stability of the material is critical. Aluminum exhibits a higher coefficient of thermal expansion compared to CFRT, meaning standard polyurethane adhesives may struggle under extreme temperature cycling if not specifically formulated for metal-to-core bonding.

For CFRT-faced panels, marine-grade or modified polymeric adhesives are strictly necessary to ensure the thermoplastic face bonds securely to the core without creeping. Specifiers must verify that the adhesive system is rated for the intended operating temperature range. A common mistake is prioritizing a low-cost adhesive which can lead to “face wrinkling” or complete detachment during thermal shock events.

Fire Code Compliance and Certification Verification

Assuming a panel is fire-safe based on its core material alone is a dangerous oversight. Both the facings and the core must contribute to the overall fire rating. For Aluminum sandwich panels, the metal skin is non-combustible, but the core (often PU, PET, or Mineral Wool) dictates the fire propagation. CFRT facings, while having high strength, are organic polymers and will burn if not treated with fire-retardant resins. The panel assembly must achieve a specific classification under standards such as EN 13501-1.

Buyers must demand the original test report from a recognized third-party laboratory (e.g., Intertek, SGS, or TÜV) to cross-reference the panel configuration against the project’s local building codes.

Thickness and Density Specification Accuracy

Variance in panel thickness and core density directly impacts structural rigidity and thermal performance (R-value). A nominal “50mm” panel with a -1mm tolerance loses significant structural integrity. In high-stress applications like RV walls or marine bulkheads, utilizing Aluminum honeycomb cores requires strict adherence to cell size and foil gauge specifications. Conversely, foam cores (PU, XPS, PET) rely entirely on density uniformity to prevent compression failure.

When specifying, define acceptable tolerances explicitly rather than accepting “standard industry tolerance.” For CFRT panels, the laminate thickness must be included in the total dimension calculation to avoid fitment issues during installation.

Installation Handling Guidelines to Prevent Damage

Even perfectly specified panels can fail if mishandled on-site. The edges of sandwich panels are the most vulnerable point for impact damage and moisture ingress. Once the edge seal is broken, water can wick into the core, causing swelling and hidden rot in organic cores or corrosion in Aluminum honeycomb cells.

Lifting and storage procedures must be defined in the specification document. Panels should always be stored on flat, level supports to prevent warping. CFRT panels, while impact-resistant, can suffer from localized bruising if dropped on sharp corners, which compromises the cosmetic and structural laminate. Slinging methods using wide belts or vacuum lifters are mandatory; chains or hooks that penetrate the panel face instantly void warranties and structural integrity.

• Edge Protection: Protective PVC or aluminum edge trim must be installed immediately after cutting to seal the core.
• Surface Protection: Peel-off films should remain on the Aluminum or CFRT surface until final installation to prevent abrasion from construction dust.
• Load Distribution: Never stack materials on top of sandwich panels on-site unless the load is evenly distributed across the full surface area.

Conclusion

Marine and coastal environments demand careful material selection, as corrosion immunity and structural performance are not interchangeable. CFRT (cold-formed rolled steel) sandwich panels are the superior choice for exterior marine exposure, where salt spray and humidity make aluminum-faced panels vulnerable to corrosion over time. Our factory produces aluminum-faced PU panels rated for EN 13501-1 fire standards, and we’ve seen projects fail when buyers spec aluminum for exterior wall applications exposed to salt spray. CFRT panels still make sense for interior RV walls and lightweight builds where every kilogram counts. The core material — whether XPS or PET foam — drives your R-value per inch. You need to match the panel to the environment, not the budget alone.

• Verify the manufacturer’s test certificates for fire rating and core density before placing your order
• Confirm the adhesive system is rated for your climate zone to prevent delamination
• Ask our engineering team to review your spec sheet — we’ve reviewed thousands of panel configurations and can spot compatibility issues early at no cost

Frequently Asked Questions
