Refrigeration Evaporators: The Complete Guide for Cold Rooms

Miscalculating the required evaporator capacity is a prevalent design error that fundamentally undermines temperature pull-down and system stability. The actual cooling effect relies on the refrigerant evaporating inside the tubes that are in contact with thin metal sheets. If the coil surface area cannot match your room’s thermal load, condensation forms immediately. At RaxPanel, we know that proper sizing dictates your energy consumption per cubic meter over the system’s life.

This guide dissects the technical nuances of selecting evaporators for different temperature zones, specifically addressing the dilemma of choosing between water and electric defrost methods. We also cover the specific durability metrics you need to demand from manufacturers to prevent material corrosion in high-humidity settings. You will walk away with a clear framework for checking fan motor compatibility and coil construction that ensures your facility operates within budget without risking product spoilage.

How Evaporators Cool Your Cold Room

The evaporator is the heat absorption heart of every cold room. Its cooling capacity, airflow distribution, and defrost design must align precisely with the room insulation and target temperature zone to avoid energy waste and product spoilage.

The Evaporator Role in the Cold Room Heat Exchange Cycle

In a standard vapor-compression refrigeration cycle, the evaporator is where the actual cooling happens. Liquid refrigerant enters the evaporator coils at low pressure and absorbs thermal energy from the cold room air. As it absorbs heat, the refrigerant transitions from a liquid to a gas — a phase change that pulls significant amounts of energy out of the space. The fan then circulates this chilled air throughout the room, maintaining the target temperature.

This process is continuous. The refrigerant vapor exits the evaporator and travels to the compressor, where it is pressurized and sent to the condenser to reject heat. The cycle repeats. The evaporator’s effectiveness depends on how efficiently it can transfer heat from the air to the refrigerant, which is governed by coil surface area, fin density, airflow velocity, and refrigerant charge.

In cold room applications, the evaporator must handle not only sensible heat removal but also latent heat loads from product respiration, door openings, and thermal infiltration through walls. Any mismatch between evaporator capacity and these loads results in temperature swings, frost buildup, or excessive compressor cycling — all of which degrade product quality and increase energy costs.

Key Performance Specs: Capacity, Airflow, and Defrost Type

Three specifications define whether an evaporator will perform reliably in a given cold room: cooling capacity, airflow output, and defrost method.

• Cooling Capacity (kW or Tons): Measured at standard evaporating temperatures, capacity indicates how much heat the unit can remove per hour. A 5-ton evaporator at -10°C evaporating temperature does not produce the same capacity at -25°C — capacity drops as the temperature differential increases. Always verify capacity at the actual operating conditions, not just at nominal test points.
• Airflow (m³/h or CFM): Airflow determines how effectively conditioned air reaches every corner of the room. Insufficient airflow creates warm spots and uneven temperature distribution, even if the evaporator has adequate capacity. Typical cold room evaporators range from 1,500 m³/h for small units to over 10,000 m³/h for large walk-in installations.
• Defrost Type: Electric defrost, hot gas defrost, and water spray defrost are the three primary methods. Electric defrost is simple and common for lower-temperature applications. Hot gas defrost is more energy-efficient for larger systems because it recycles compressor discharge heat. The defrost method directly affects cycle downtime, energy consumption, and frost management on the coil.

Matching Evaporator Output to Cold Room Insulation Panels

The insulation performance of cold room panels directly determines the cooling load that the evaporator must handle. Poor insulation means higher heat infiltration, which requires a larger evaporator or causes the existing unit to run continuously — increasing energy costs and accelerating component wear.

Polyurethane (PU) foam core panels with a thermal conductivity of approximately 0.022–0.024 W/(m·K) are the industry standard for cold room construction. A 100 mm PU panel provides an R-value roughly equivalent to 5.4 m²·K/W, which is sufficient for most chill storage applications. For frozen storage at -25°C or below, 120–150 mm panels are typically specified to keep the heat infiltration load within the evaporator’s designed capacity.

Honeycomb panel constructions — using PP or aluminum honeycomb cores sandwiched between metal facings — offer an alternative with comparable thermal performance at reduced weight. The key consideration is that panel thickness and core material must be specified before evaporator sizing, because the thermal load calculation drives the entire refrigeration design. An evaporator sized for a well-insulated room will struggle in a poorly insulated one, regardless of its nominal capacity.

Selection Criteria for Different Temperature Zones

Cold rooms serve distinct temperature zones, and each zone demands different evaporator specifications. Selecting the wrong unit for the zone is one of the most frequent errors in cold room design, leading to either oversized capital expenditure or chronic temperature failure.

• Chill Storage (0°C to +5°C): Used for dairy, produce, and pharmaceuticals. Evaporators for this zone typically use electric defrost with short cycle intervals. Coil surface area is moderate, and airflow is designed to avoid drying out produce. Frost accumulation is minimal, so defrost frequency is low.
• Frozen Storage (-18°C to -25°C): The standard for frozen food and ice cream. These evaporators require larger coil surface areas to handle the greater temperature differential between the evaporating refrigerant and the room air. Hot gas defrost is preferred for larger installations due to its energy efficiency. Airflow velocity must be carefully balanced — too high, and product surface freezing (wind chill) becomes a quality issue.
• Deep Cold / Blast Freezing (-30°C and below): Used for quick-freezing operations and specialty storage. Evaporators in this zone operate at very low evaporating temperatures, which significantly reduces capacity per square meter of coil. Multiple units or high-airflow designs are often required. Defrost cycles must be robust, as frost buildup is rapid and dense at these temperatures.
• Cold Room Door and High-Traffic Areas: Where door openings are frequent, evaporator placement and airflow direction become critical. Units should be positioned to create an air curtain effect that minimizes warm air ingress. In high-traffic installations, slightly oversized capacity with aggressive defrost scheduling compensates for the intermittent thermal load spikes.

The intersection of temperature zone, room volume, insulation quality, and product load determines the final evaporator selection. A systematic approach — starting with a calculated heat load and working backward to capacity, airflow, and defrost requirements — prevents the costly mistakes that arise from rule-of-thumb sizing or matching evaporators to rooms without verifying the thermal envelope.

Which Evaporator Type Fits Your Cold Room?

Selecting the correct evaporator geometry is critical for system efficiency. While finned unit coolers dominate standard storage, bare tube and plate evaporators serve specialized liquid-cooling roles, and the choice of fin spacing must strictly correlate with the room’s temperature zone to prevent frost blockage.

Finned Unit Coolers: The Cold Room Standard

For the vast majority of cold storage applications, the finned unit cooler is the industry default. These devices utilize a coil of copper tubes circled by aluminum fins to maximize the surface area for heat exchange. The primary advantage of this design is the high ratio of heat transfer surface to volume, allowing for significant cooling capacity without an oversized footprint. However, the specific configuration of these fins is where engineering precision matters most.

Bare Tube Evaporators: Rugged and Reliable

Unlike finned units, bare tube evaporators consist solely of the pipe coils without the added surface area of aluminum fins. These are typically found in specialized industrial settings where the environment is hostile to delicate fins. They are exceptionally durable and resistant to physical impact or corrosion, making them ideal for harsh washdown areas or applications involving airborne debris that might clog a finned coil. Because they lack fins, they require a larger surface area to achieve the same capacity, but they offer unrestricted airflow which is beneficial in specific high-velocity cooling scenarios.

Plate and Shell-and-Tube Evaporators

When the heat transfer medium is a liquid rather than air, the evaporator design shifts entirely. Plate evaporators use corrugated metal plates stacked together to create channels for the refrigerant and the secondary fluid; they are highly efficient but generally reserved for process cooling or compact systems. Shell-and-tube evaporators consist of a bundle of tubes inside a cylindrical shell; one fluid flows inside the tubes, the other flows over them. These are heavy-duty units designed for large industrial refrigeration loads or chiller systems, where robustness and ease of maintenance outweigh the need for compactness.

Structural Integration and Thermal Bridging

The physical mounting of the evaporator is just as important as the coil type. When installing high-capacity units, particularly heavy freezer units, the load must be distributed correctly to avoid damaging the structural integrity of the wall panels. Whether the cold room utilizes rigid PU foam cores, lightweight XPS, or advanced honeycomb composite panels, the mounting brackets must align with the panel’s internal structure.

Furthermore, improper installation can create thermal bridges. If a steel bracket penetrates directly from the internal -30°C environment to the external ambient heat without a thermal break, it creates a direct conduit for heat entry. This not only increases energy consumption but creates a localized warm spot that can lead to condensation and mold growth on the panel surface. For insulated panels using honeycomb or foam cores, ensuring gas-tight seals around any penetrations is vital to maintaining the advertised R-value of the envelope.

How Defrost Methods Impact Your Cold Room

Even a thin layer of frost accumulation (1mm) can reduce evaporator capacity by 15-20%, forcing compressors to work significantly harder and spiking energy consumption.

Selecting the right defrost method is not just about melting ice; it is a critical decision that dictates the operational efficiency (OPEX) and the lifespan of your refrigeration investment. While the primary goal of any defrost cycle is to restore heat transfer efficiency, the method employed introduces varying degrees of thermal stress, energy penalties, and temperature fluctuations that directly impact cold room stability.

Hot Gas Defrost: The Efficiency Standard for Low-Temp Applications

For low-temperature cold rooms (typically below -5°C), hot gas defrost is widely regarded as the most energy-efficient solution. This method bypasses the expansion valve and routes hot, high-pressure refrigerant gas directly from the compressor discharge into the evaporator coils. Unlike electric heating, which requires new energy input, hot gas defrost utilizes the waste heat generated by the compression process itself.

• Speed and Uniformity: Because hot gas defrost relies on the latent heat of condensation inside the coil, it melts frost from the inside out. This results in significantly faster cycle times compared to electric methods, reducing the downtime of the refrigeration system.
• Energy Reclamation: By using the heat already contained in the refrigerant circuit, this method avoids the high electrical demand associated with resistance heaters. The defrost power input effectively equals the power absorbed by the compressor, making it thermodynamically efficient.
• Complexity vs. Reward: While this system requires more complex piping and control logic (including regulating valves to prevent pressure shock), the reduction in energy consumption often justifies the initial capital expenditure in high-usage industrial environments.

Electric Defrost: Simplicity at an Operational Cost

Electric defrost uses resistance heating elements embedded within or attached to the evaporator coils. While the installation is simpler and mechanically durable—requiring no additional hot gas piping—it operates on a distinct energy penalty principle. Every kilowatt-hour of electricity used for defrost must subsequently be removed by the evaporator as heat load once the cycle ends.

This “double penalty” makes electric defrost generally less efficient for large-scale or low-temperature applications. However, it remains a viable choice for smaller cold rooms or facilities where electrical infrastructure is preferred over complex refrigerant piping. The key to optimizing electric defrost lies in strict control of termination temperature to prevent overheating the space, which increases the load on the facility.

Water Defrost and Off-Cycle Strategies

Water defrost is typically restricted to medium-temperature applications (above 0°C) where frost accumulation is less dense and ice can be easily flushed away. While water is a cheap heat transfer medium, this method demands sophisticated drainage systems to prevent water from freezing in the drain pans or floor, creating significant slip hazards and structural damage risks.

Off-cycle defrost (simply stopping the fan to let ambient temperature melt the ice) is the least energy-intensive but is only effective in environments where the ambient air temperature is consistently higher than the coil temperature. It is rarely sufficient for the heavy-duty load requirements of industrial cold storage.

Defrost Impact on Equipment Longevity and Room Integrity

The defrost method directly correlates with the physical wear and tear on the evaporator. Rapid heating and cooling cycles induce thermal expansion and contraction. In hot gas systems, if not properly controlled, the sudden introduction of high-pressure gas can cause mechanical stress on copper tubing and joint soldering.

additionally, the termination of the defrost cycle is just as critical as the method itself. Adequate delay times for “drip” and “dry-out” are essential to allow water to drain from the coils before fans restart. Failing to observe these delays can result in fans blowing water back onto the coil, where it instantly refreezes into a block of solid ice, rendering the next defrost cycle ineffective and accelerating motor failure due to imbalance.

The Interplay with Insulation and Thermal Load

It is crucial to recognize that defrost frequency is a symptom of the cold room’s overall thermal load. High-quality composite wall panels with superior R-values and airtight seals significantly reduce heat infiltration (parasitic load). By minimizing the amount of moisture-laden air entering the room, high-performance insulation panels directly reduce the rate of frost formation. therefore, investing in superior insulation technology acts as a force multiplier for any defrost system, reducing cycle frequency and lowering total lifetime energy costs.

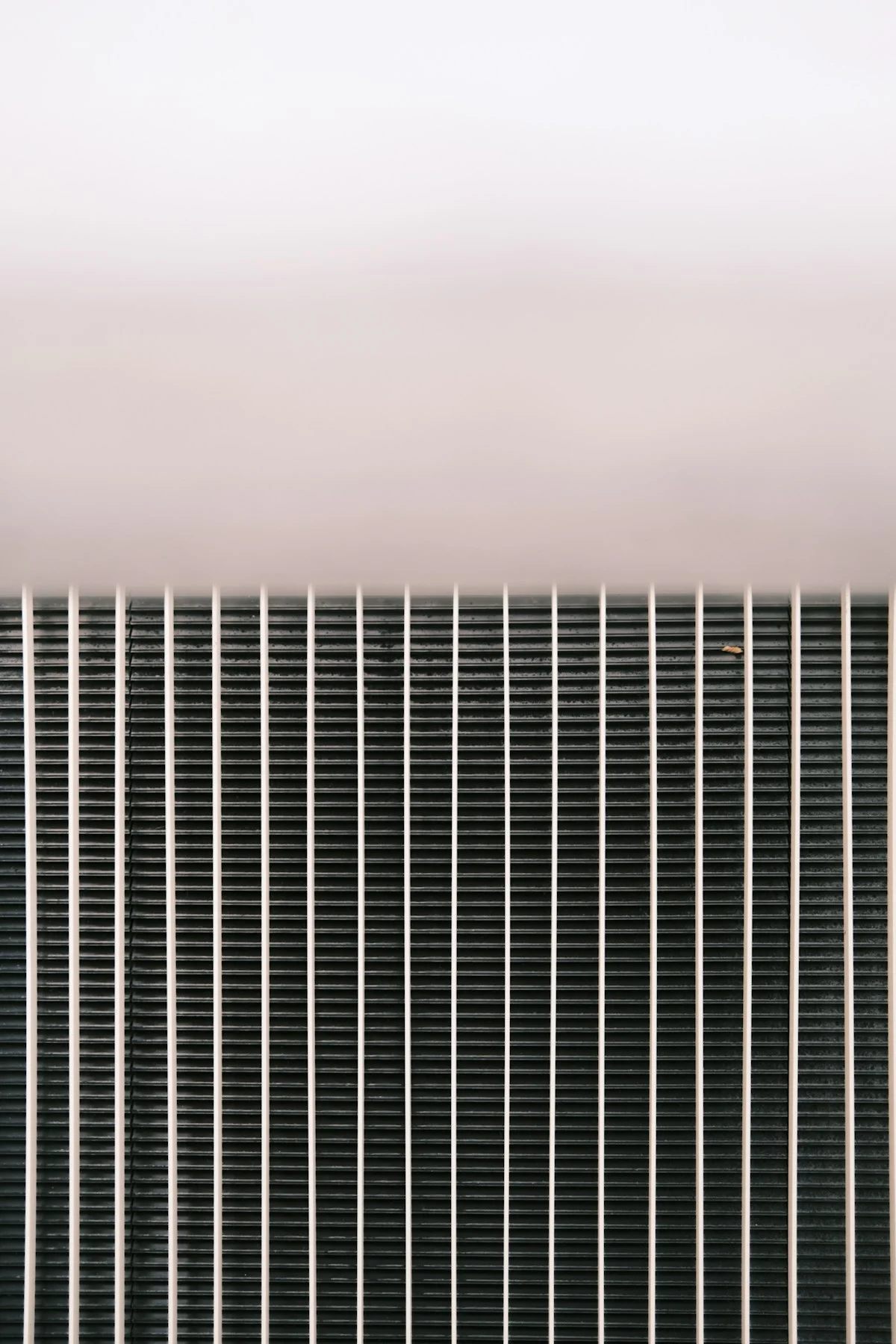

Sizing Your Evaporator for Proper Airflow

The Physics of Heat Load Calculation

Correct evaporator sizing is not about matching the compressor tonnage alone; it is the precise balance between calculated thermal load and air distribution volume to maximize efficiency.

Sizing an evaporator begins with an accurate heat load calculation, which acts as the “source of truth” for system selection. For B2B applications, you cannot rely on rule-of-thumb estimates. The total cooling load is the sum of three distinct pillars: transmission heat gain (loss through walls, ceiling, and floor), product load (heat removed from goods entering the room), and infiltration load (air exchange through door openings). The quality of the cold room envelope—specifically the insulation R-value—directly impacts the transmission load. High-performance composite panels with superior thermal resistance (such as PU or PIR cores) significantly reduce this baseline load, allowing for a more compact evaporator selection compared to rooms with poor insulation.

• Transmission Load: Calculated based on the surface area of the room and the thermal conductivity (U-value) of the panels. A Delta T (temperature difference) of 50°C to 60°C is typical for freezer calculations.
• Product Load: The specific heat capacity and freezing point of the stored goods. For example, cooling meat requires removing latent heat during the phase change (freezing), demanding higher capacity than simply storing pre-frozen goods.
• Infiltration Load: Often the most variable factor, heavily influenced by the frequency of door openings and the efficiency of air curtains or strip curtains.

Airflow Velocity and Throw Distance

Once the thermal capacity (kW or Tons of Refrigeration) is determined, the physical dimensions of the evaporator must match the airflow requirements. It is a common industry error to focus solely on cooling capacity while neglecting air volume (CFM). The evaporator must be capable of moving the total air volume of the cold room multiple times per hour—typically 30 to 50 air changes for chillers and up to 80 for freezers—to ensure uniform temperature distribution.

The “throw” distance—the horizontal reach of the air stream—is critical. If the airflow cannot reach the farthest wall or corner of the room, dead zones form, leading to hot spots and product spoilage. Selecting a unit with the correct external static pressure (ESP) is vital to overcome the resistance of ductwork or coil icing. In high-density storage racking systems, specialized ducting or high-velocity fans are often required to force air deep into the racking, rather than allowing it to short-cycle back to the intake.

The Risks of Oversizing vs. Undersizing

Selecting an evaporator that is too small creates an obvious problem: the system runs continuously but fails to reach the setpoint, driving up energy costs and risking compressor failure due to liquid slugging. However, oversizing carries hidden, equally destructive costs. An oversized coil with excessive capacity for the load will cool the space rapidly but cycle off before it has a chance to dehumidify the air effectively. In fresh product storage, this results in high relative humidity, promoting mold growth and surface slime. Furthermore, large coils require larger refrigerant charges, increasing system costs and potential environmental impact in case of leakage.

• Temperature Difference (TD): A standard design TD is roughly 8°C to 10°C for coolers and 5°C to 7°C for freezers. Oversizing results in a higher TD, which accelerates frost accumulation and increases the frequency of defrost cycles.
• Efficiency Loss: The system operates most efficiently when the compressor and evaporator are perfectly matched. Mismatched components create a “low Delta T” syndrome where the compressor operates at lower efficiency ratios (EER).

Explore Our Cold Room Panel Solutions.

Browse our specialized refrigeration panels for cold storage, including wall and ceiling variants designed for optimal thermal performance.

View Our Cold Room Panels →

What Makes a Cold Room Evaporator Durable

Durability in cold room evaporators hinges on three factors: coil material selection (copper tube with aluminum fin is industry standard), frame corrosion resistance (hot-dip galvanized or stainless steel), and adherence to ISO 9001 quality manufacturing standards. The right combination delivers 15-20+ years of reliable operation in demanding cold storage environments.

Coil Material: The Heart of Evaporator Longevity

The heat exchange coil is the most critical durability component. Copper tubes with aluminum fins remain the industry benchmark for cold room evaporators, and here is why this combination consistently outperforms alternatives in real-world deployment.

Copper tubing offers superior thermal conductivity at approximately 401 W/(m·K), which is roughly 7 times better than aluminum and 200 times better than stainless steel. This means smaller diameter tubes can move the same refrigerant load, reducing pressure drop and improving system efficiency over the unit’s operational life. The standard tube diameter for cold room evaporators ranges from 5/16 inch (7.94 mm) to 3/8 inch (9.52 mm), with 5/16 inch being the most common for medium-temperature applications and 3/8 inch preferred for low-temperature rooms below -18°C.

Aluminum fins provide the necessary surface area expansion for efficient heat transfer while keeping weight manageable. The fin density typically ranges from 8 to 18 fins per inch (FPI), with 12 FPI being the sweet spot for most cold room applications. Higher fin counts improve heat exchange efficiency but increase air-side pressure drop and are more susceptible to fouling from airborne contaminants.

• Copper tube wall thickness: Minimum 0.3 mm for standard applications; 0.5 mm recommended for corrosive environments or when handling aggressive refrigerants like CO2 or ammonia systems.
• Aluminum fin gauge: Typically 0.1 mm to 0.15 mm; thicker fins resist mechanical damage during cleaning and transport but reduce heat transfer surface area per unit volume.
• Tube-to-fin bond: Mechanical expansion creates a interference fit that ensures thermal contact while allowing for differential thermal expansion between copper and aluminum during defrost cycles.

Frame Construction: Structural Integrity Under Thermal Stress

Cold room evaporators experience repeated thermal cycling between operating temperatures of -25°C and defrost temperatures up to +15°C or higher. This cyclic expansion and contraction places significant stress on the frame structure. Durable evaporators address this through material selection and engineering design that accommodates these movements without fatigue failure.

Hot-dip galvanized steel is the standard frame material for most cold room evaporator applications. The hot-dip process creates a zinc coating that is metallurgically bonded to the steel substrate, typically providing a coating weight of 500 to 600 g/m². This coating thickness translates to a service life of 15 to 20 years in standard cold storage environments with relative humidity ranging from 85% to 95% during operation.

For environments with higher corrosion risk — such as cold rooms storing fish, meat products, or chemicals that release corrosive vapors — stainless steel frames provide significantly longer service life. Grade 304 stainless steel is the minimum specification for food-grade cold storage applications, while Grade 316 is recommended for environments with direct salt exposure or aggressive cleaning chemical use. The premium cost of stainless steel construction, typically 40% to 60% higher than galvanized alternatives, is justified in applications where downtime for evaporator replacement exceeds the cost differential over a 10-year operational horizon.

• Galvanized steel frame: Zinc coating minimum 275 g/m² (G90 coating designation); suitable for standard cold rooms operating between -20°C and +10°C.
• Stainless steel frame (304 grade): Minimum 0.8 mm sheet thickness for structural members; recommended for food processing and high-humidity environments.
• Stainless steel frame (316 grade): Required for marine environments, fish processing facilities, and applications involving chloride-based cleaning agents.
• Welded joint treatment: All frame welds should be ground smooth and re-passivated in stainless applications to prevent crevice corrosion initiation points.

Corrosion Resistance: The Silent Durability Factor

Corrosion is the primary failure mode for cold room evaporators, accounting for an estimated 60% to 70% of premature unit failures in field service data. The cold room environment creates a uniquely aggressive corrosion scenario: high humidity, condensation, temperature cycling, and potential exposure to cleaning chemicals and food-derived contaminants all contribute to material degradation.

The corrosion protection strategy for durable evaporators involves multiple layers. The coil itself receives a hydrophilic coating on the aluminum fins, which reduces water adhesion during defrost cycles and minimizes the time that condensed moisture remains in contact with the metal surface. This coating can reduce water contact angle from approximately 85 degrees on bare aluminum to less than 10 degrees, dramatically accelerating drainage and reducing corrosion initiation sites.

Frame and header plate coatings also play a critical role. Epoxy powder coating with a minimum dry film thickness of 80 microns provides excellent chemical resistance and mechanical durability. For specialized applications, fusion-bonded epoxy (FBE) coatings applied at thicknesses of 250 to 400 microns offer superior protection against the most aggressive cold room environments, including those with ammonia refrigerant leakage potential.

Industry Standards and Quality Benchmarks

Durability in cold room evaporators is not solely determined by material selection — manufacturing quality and adherence to recognized standards are equally critical. Several international standards provide the framework for evaluating evaporator durability claims and ensuring consistent quality across production batches.

ISO 9001 certification indicates that the manufacturer operates a quality management system that includes documented procedures for incoming material inspection, in-process quality control, and final product testing. While certification alone does not guarantee durability, the absence of such a system in a manufacturer’s operations is a significant risk indicator, particularly for smaller or less established producers.

The EN 14511 standard (equivalent to ISO 5151) governs the testing and rating of refrigerant compressors and heat pumps, including evaporator performance verification. Evaporators tested and rated according to this standard provide performance data that can be reliably compared across manufacturers and used for accurate system design calculations. Key test parameters include cooling capacity at standard rating conditions, air-side pressure drop, and defrost performance characteristics.

• ISO 9001: Quality management system certification — verify current certificate validity and scope coverage.
• EN 14511 / ISO 5151: Refrigeration cycle testing standard — ensures performance data is measured under consistent, comparable conditions.
• EN 378: Refrigerating systems and heat pumps — safety and environmental requirements; evaporators should comply with pressure vessel and refrigerant containment provisions.
• ASHRAE Standard 41.1: Temperature measurement procedures — evaporator performance ratings should reference this standard for test condition consistency.
• CE Marking: Required for evaporators sold in the European Economic Area, indicating compliance with applicable machinery and pressure equipment directives.

Practical Durability Indicators for Buyer Evaluation

When evaluating evaporator durability as a purchasing decision, several practical indicators provide reliable signals about long-term performance potential. These indicators are measurable during the procurement process and do not require waiting years to observe field performance.

Coil hydrostatic test pressure is a direct indicator of manufacturing quality. Reputable manufacturers perform hydrostatic testing at 1.5 to 2.0 times the maximum operating pressure, holding the test pressure for a minimum of 30 seconds. For a standard R404A/R448A system with a maximum operating pressure of approximately 25 bar, this translates to a test pressure of 37.5 to 50 bar. Request test documentation and verify that individual unit test certificates are available, not just batch-level certificates.

Fin spacing consistency is another measurable quality indicator. Inconsistent fin spacing creates uneven airflow distribution across the coil face, leading to localized overloading of certain tube circuits and accelerated corrosion in high-velocity zones. Acceptable fin spacing variation should not exceed ±0.5 mm across the entire coil surface. This can be verified through simple visual inspection and spot measurement with calipers during pre-shipment quality audits.

Defrost System Integration and Durability Impact

The defrost method selected for an evaporator has a profound impact on long-term durability. Electric defrost, hot gas defrost, and water spray defrost each impose different mechanical and thermal stresses on evaporator components, and the durability implications vary significantly between methods.

Electric defrost heaters, when properly designed and controlled, impose the least mechanical stress on coil materials. However, improper heater placement or inadequate thermostat coverage can create localized hot spots that accelerate aluminum fin oxidation and degrade the hydrophilic coating. Maximum surface temperature during electric defrost should not exceed 65°C on aluminum fins to prevent coating degradation and accelerated corrosion.

Hot gas defrost is generally considered the most gentle method for coil durability, as it raises the coil temperature gradually and uniformly without the extreme thermal gradients associated with electric heating. The primary durability concern with hot gas defrost is the introduction of higher pressure refrigerant into the evaporator circuit, which requires adequate tube wall thickness and proper support spacing to prevent mechanical deformation during the defrost cycle.

Water spray defrost provides the most effective ice removal but introduces the highest corrosion risk. The combination of water spray, temperature cycling, and potential chemical additives in the defrost water creates an aggressive corrosion environment that demands the highest grade of frame and coil protection. Stainless steel construction is strongly recommended for water spray defrost applications, and even then, regular inspection of spray nozzles and water distribution uniformity is essential to prevent localized corrosion from standing water.

Maintenance-Accessible Design Features

Durability is not only about material selection and manufacturing quality — it is also about design features that facilitate proper maintenance throughout the evaporator’s service life. Evaporators that are difficult to clean, inspect, or repair will experience reduced operational lifespan regardless of their initial build quality.

Key maintenance-accessible design features include sufficient spacing between coil rows and the cold room wall (minimum 300 mm recommended), removable fan shrouds that do not require disassembly of the entire unit for blade inspection, and accessible service valves that allow refrigerant charging and leak testing without special tools or procedures.

Drain pan design is particularly important for long-term durability. A properly designed drain pan should have a minimum slope of 1:100 toward the drain connection, smooth internal surfaces that resist biofilm accumulation, and adequate volume capacity to handle peak defrost water flow without overflow. Stainless steel drain pans with welded construction are superior to stamped steel pans with sealed joints, as the latter are prone to seal failure and subsequent water leakage that accelerates corrosion of surrounding components.

• Airflow clearance: Minimum 300 mm between coil face and opposite wall; minimum 150 mm between coil sides and adjacent walls or obstructions.
• Drain pan slope: Minimum 1:100 toward drain connection; stainless steel construction preferred over coated steel.
• Service valve accessibility: Quarter-turn ball valves preferred over compression-type service valves for longer service life and easier maintenance.
• Fan motor access: External rotor motors with accessible bearing lubrication points extend motor service life and simplify replacement procedures.

Sourcing Evaporators Overseas: Quality Checks You Need

Importing evaporators cuts costs but introduces quality risk. A systematic inspection protocol — covering coil material verification, component durability testing, and certification validation — protects your cold room investment from premature failure.

When sourcing evaporators from overseas manufacturers, the price advantage is real, but so is the risk. Budget evaporators often cut corners on materials and testing that directly impact cold room performance and lifespan. The following quality checks are the minimum your procurement team should enforce before approving any import order.

Coil Material Authenticity Verification

The coil assembly — copper tubes and aluminum fins — is the heart of the evaporator. Counterfeit or sub-spec materials are the single most common quality failure in budget evaporators. Here is what to verify and how:

• Copper tube specification: Verify tube wall thickness and alloy grade. Standard refrigeration evaporators use 99.9% pure copper (C11000 grade) with tube walls between 0.3mm and 0.5mm depending on pressure rating. Thin-walled or recycled copper tubes crack under thermal cycling and refrigerant pressure.
• Aluminum fin thickness: Standard fin thickness ranges from 0.1mm to 0.2mm. Fins below 0.1mm are prone to deformation during cleaning and transport. Request a mill certificate or perform a simple weight-to-area calculation on a sample coil.
• Fin spacing consistency: Measure fin density (FPI — fins per inch) across multiple coils from the same batch. Inconsistent spacing indicates poor manufacturing control and leads to uneven airflow distribution across the coil face.
• Hydrostatic pressure test documentation: Reputable manufacturers pressure-test coils to 2.5x the working pressure before shipment. Request test certificates showing the test pressure value, duration, and pass/fail result for your specific batch.

Component Durability Assessment

Beyond the coil, the supporting components determine whether an evaporator survives real-world operating conditions. The following durability checks should be part of your sourcing evaluation:

• Fan motor rating and bearing type: Verify that the fan motor is rated for continuous duty at the specified ambient temperature. In cold room evaporators, motors should be rated for at least -30°C operation. Ball bearing motors outlast sleeve bearing units in high-humidity, cyclic defrost environments.
• Defrost system robustness: For electric defrost evaporators, verify heating element wattage matches the stated capacity and that elements are mounted with adequate clearance from the coil fins. For hot gas defrost, check that the defrost control valve is rated for the refrigerant type and operating pressure range.
• Drain pan and heater construction: Stainless steel drain pans (AISI 304 minimum) resist corrosion far better than painted steel. The drain heater should be self-regulating or thermostatically controlled to prevent ice buildup without overheating.
• Refrigerant connection integrity: Check that service connections use proper brazed joints with nitrogen purge during brazing. Unpurged brazing creates internal scale that restricts refrigerant flow and contaminates the system. Push-fit or compression connections on the factory side are a red flag.
• Vibration and mounting point inspection: Operate the unit at full fan speed and measure vibration at the motor mounting points. Excessive vibration indicates imbalanced fans or misaligned components — both lead to premature bearing failure and joint fatigue on refrigerant lines.

Certification and Compliance Requirements

Certifications are your first line of defense against substandard imports. They verify that a manufacturer has both the process control and the testing infrastructure to produce consistent quality. The following certifications should be non-negotiable for commercial refrigeration evaporators:

• ISO 9001 certification: This quality management standard ensures the manufacturer has documented processes for incoming material inspection, in-process quality control, and final product testing. It is the baseline requirement — not a differentiator.
• CE marking (European market): For evaporators sold or installed in the EU, CE marking under the Pressure Equipment Directive (PED 2014/68/EU) and the Machinery Directive is mandatory. Verify the certification is issued by a notified body, not self-declared by the manufacturer.
• UL or ETL listing (North American market): These listings confirm the evaporator meets North American safety standards for electrical and mechanical components. An unlisted unit creates liability exposure for the system integrator and may violate local electrical codes.
• Energy efficiency declarations: Verify that the evaporator’s rated capacity (W or BTU/h) and power consumption (W) are documented under standardized test conditions per EN 12900 or AHRI 400. Manufacturers who cannot provide test reports from an accredited laboratory are likely using inflated capacity claims.
• Refrigerant compatibility certification: The evaporator must be rated for the specific refrigerant you are using (R404A, R507, R134a, R448A, R449A, or CO₂ transcritical systems). Using a coil designed for a different refrigerant pressure rating can result in catastrophic failure.

Red Flags in Budget Evaporator Sourcing

Certain warning signs appear repeatedly across failed import orders. Recognizing these early saves time, money, and project delays:

• Vague or absent technical documentation: If the supplier cannot provide a detailed datasheet with rated capacity, air side pressure drop, sound level, electrical specifications, and refrigerant charge, walk away. Legitimate manufacturers publish this data.
• Capacity claims that exceed physics: An evaporator claiming 8kW cooling capacity at 200W fan power and minimal air side pressure drop is likely using unverified or optimistic ratings. Cross-reference the claimed performance against the coil face area and fin density.
• No provision for sample testing: Suppliers who refuse to ship a single unit for evaluation before a bulk order are hiding quality risk. A confident manufacturer will provide a sample at cost.
• Generic or repurposed housings: Some budget evaporators use stock or modified housings not designed for the specific coil performance. Check that the housing includes proper air distribution baffles, adequate access for coil cleaning, and corrosion-resistant coating (minimum 25μm powder coat or electrophoretic coating).
• Missing or generic control component brands: Check the brand and model of the expansion valve, fan motor, and defrost controller. If these are unbranded or generic Chinese-market components with no technical data sheets, expect reduced lifespan and difficult troubleshooting.
• Pressure test not included in QA: Any evaporator that has not undergone a leak test (typically 15–25 bar for low-pressure refrigerants, higher for CO₂) before shipment is a liability. Request the test protocol and batch test records.

Pre-Shipment Inspection Protocol

A structured inspection checklist performed before the evaporators leave the factory is the most cost-effective quality gate. The following steps should be completed before final payment is released:

Importing evaporators from overseas is a standard practice in the refrigeration industry, but the savings disappear quickly if the units fail within the first two years of operation. The cost of a thorough pre-shipment inspection — typically 1–2% of the total order value — is negligible compared to the cost of a replacement evaporator, emergency field service, and cold room downtime. Treat quality verification as a mandatory step, not an optional extra.

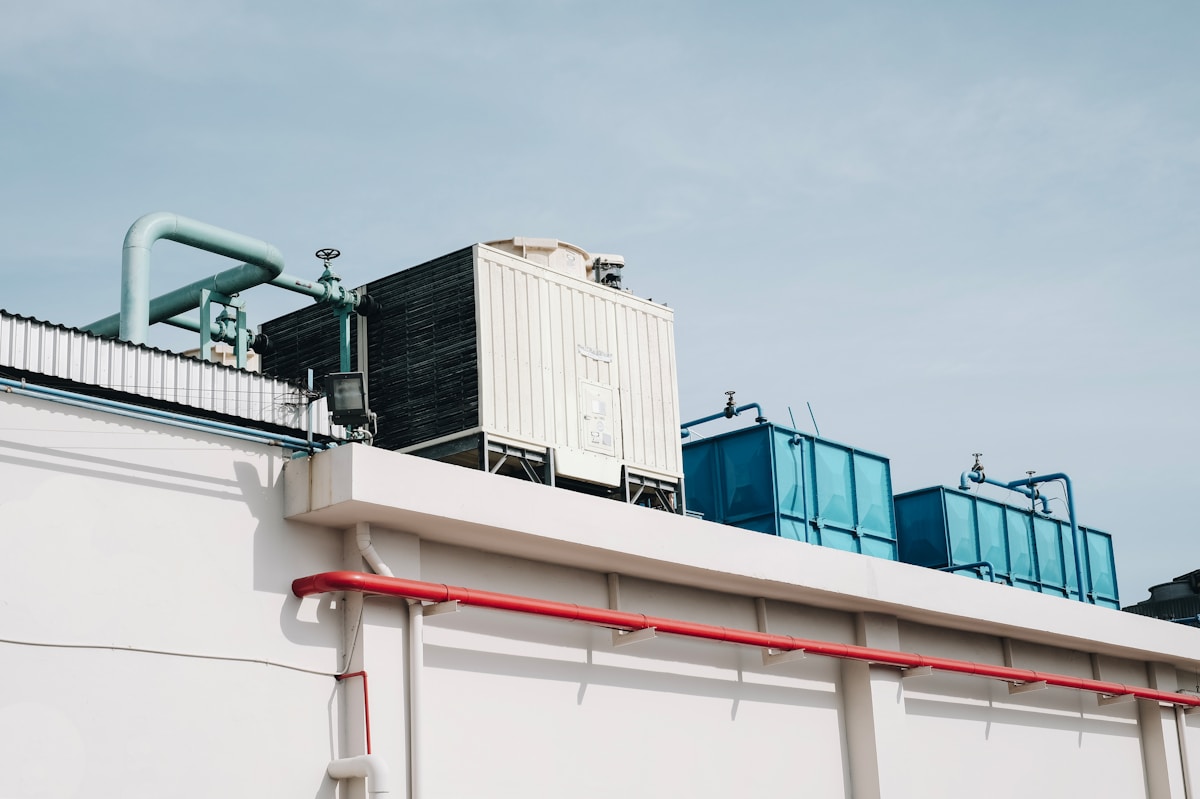

Keeping Your Evaporator Running at Peak Performance

Consistent evaporator maintenance prevents efficiency decay, reduces energy waste, and extends compressor lifespan in demanding cold storage environments.

Routine Coil Cleaning and Airflow Maintenance Schedule

Coil cleanliness directly determines heat transfer efficiency. Dust, debris, and frost accumulation act as thermal barriers between the coil surface and circulating air. Our engineering team has observed that facilities skipping monthly coil inspections experience 15-20% capacity degradation within the first two operating years.

Establish a cleaning cycle matched to your operating environment. High-dust facilities such as packing areas or grain storage require weekly vacuuming and compressed air blow-down. Standard cold rooms benefit from bi-weekly inspections during peak seasons and monthly deep-cleaning during off-peak periods. Always power down the unit before accessing coil surfaces, and use soft-bristle brushes to avoid fin deformation.

Airflow path integrity matters as much as coil condition. Verify that return air grilles remain unobstructed and that evaporator mounting allows adequate clearance for air circulation. Poor airflow forces the compressor to run longer cycles, increasing energy consumption and wear. We recommend installing differential pressure gauges across coil banks to detect early airflow restriction before performance drops noticeably.

Defrost System Inspection and Optimization Practices

Defrost cycles manage frost formation that naturally occurs during evaporator operation. Each defrost event removes accumulated ice, but poorly timed or executed defrosts waste energy and stress components. Electric defrost systems require quarterly inspection of heating elements, contactors, and defrost terminations. Water drain pans and heaters must remain clear to prevent refreezing at the evaporator base.

Hot gas defrost systems demand different attention. Check reversal valve operation, oil trap functionality, and condensate management. Improper hot gas defrost can introduce oil migration issues into the evaporator, reducing heat transfer efficiency over time. Our field technicians note that facilities with adaptive defrost controls—triggered by coil temperature differentials rather than fixed timers—achieve 12-18% energy savings compared to time-based defrost schedules.

When ice buildup exceeds normal defrost removal capacity, manual intervention becomes necessary. Document recurring ice accumulation patterns, as they often indicate underlying issues: door seal failures, excessive humidity infiltration, or insufficient insulation at thermal bridge points. High-performance sandwich panels with dense foam cores like PU, XPS, or PET minimize thermal bridging and reduce latent defrost loads.

Monitoring Refrigerant Charge and Pressure Indicators

Refrigerant charge levels directly influence cooling capacity and compressor longevity. Undercharged systems produce insufficient superheat, while overcharged conditions create excessive head pressure and liquid floodback risk. Monthly pressure readings at service ports provide early warning of leaks or charge migration. Compare current readings against manufacturer specifications and historical baselines from your facility.

Subcooling and superheat measurements offer precise diagnostics. Proper subcooling indicates complete condenser liquid formation, while correct superheat confirms adequate evaporator feeding. Deviations from design values often point to metering device issues, restricted capillary tubes, or refrigerant contamination. Our lab testing shows that refrigerant contamination from moisture ingress reduces system COP by 8-12% and accelerates compressor bearing wear.

Leak detection should employ electronic detectors, ultrasonic sensors, or soap solution testing at all joint connections. When leaks are identified, repair the source before recharging—simply adding refrigerant without fixing the leak wastes money and harms the environment. After any repair, evacuate the circuit to below 500 microns before charging to prevent non-condensable gas introduction.

Preventive Maintenance Checklist for Extended Evaporator Lifespan

A structured maintenance program separates high-reliability operations from facilities experiencing premature equipment failures. Monthly checks include visual inspection of electrical connections, verification of fan rotation direction, and confirmation that all safety controls respond correctly. Quarterly tasks expand to coil cleaning, defrost system component testing, and refrigerant charge verification.

Annual professional servicing should cover complete evaporator assembly inspection, including motor amperage draw, refrigerant circuit integrity, and control board diagnostics. This thorough evaluation identifies wear patterns before they cause operational failures. We recommend maintaining detailed service records for each unit, tracking component replacements, performance trends, and energy consumption metrics to support predictive maintenance scheduling.

Conclusion

Proper sizing isn’t optional when you’re dealing with heavy thermal loads. Underspecifying airflow kills efficiency and creates dangerous ice buildup, while ignoring defrost cycles leads to total system failure. The right evaporator balances cooling capacity with your insulation’s specific thermal performance. Guesswork here ruins the entire project.

To mitigate the risks of overseas procurement, verifying coil corrosion resistance and fan motor durability before placing an order is essential. Leveraging RaxPanel’s expertise in thermal enclosure systems, our engineers act as a technical resource to validate your airflow calculations and defrost logic before you commit to a build.
