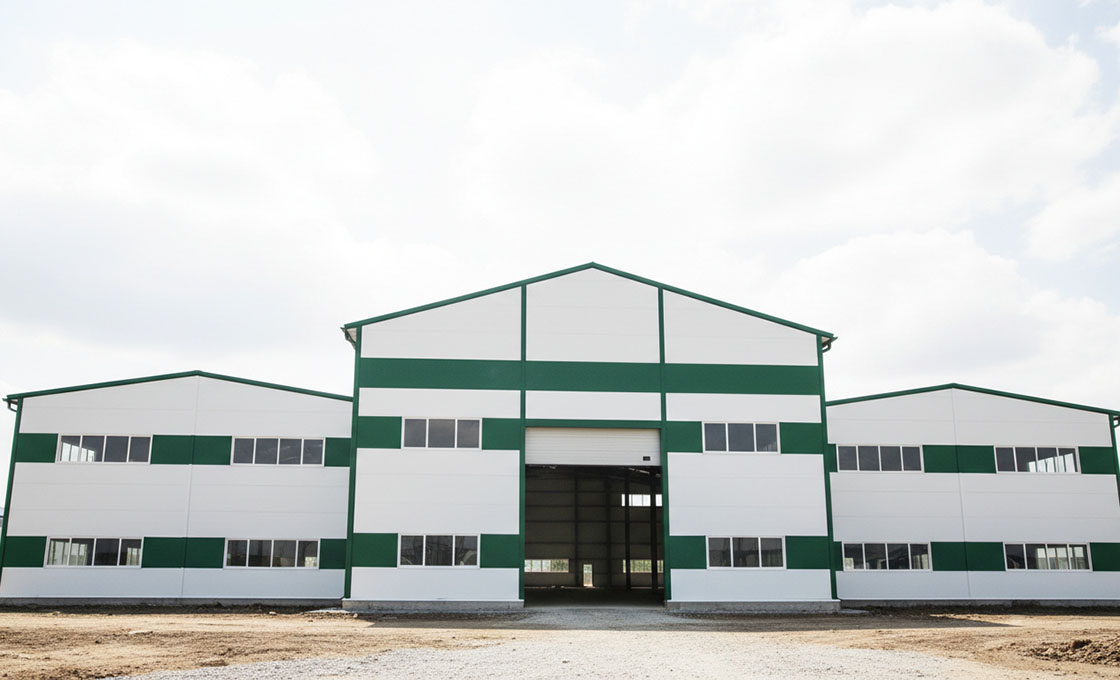

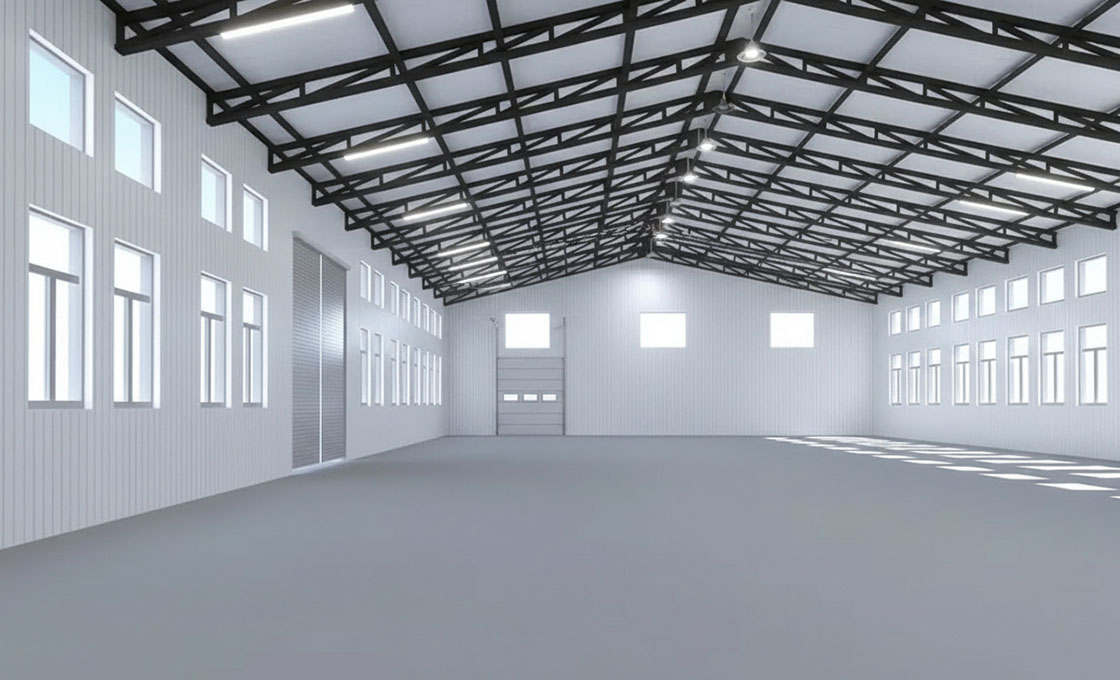

The Warehouse Sandwich Panel combines an expanded polystyrene (EPS) foam core with structural aluminum or steel skins for industrial warehouse construction. The snap-lock design enables quick interlocking installation across roofs, walls, and floors while creating continuous insulated barriers that minimize thermal bridging and reduce heating and cooling costs by up to 58%.
Available in 12-inch, 16-inch, 2-foot, or 4-foot widths with customizable lengths from 3 to 48 feet, panels feature thickness options of 3, 4, or 6 inches supporting clear spans up to 22 feet under specified loads. Steel skins come in 24 or 26 gauge prepainted or bare galvalume, while aluminum options include .024 or .032 inch thicknesses with EPS foam densities of 1.5 pounds per cubic foot.
The concealed fastener system provides wind uplift resistance and structural stability against hurricane and earthquake forces. Standard colors include white, eggshell, wheat, and dark bronze with optional stucco or cedar embossed finishes backed by 40-year warranties against peeling and 15-year structural integrity coverage when properly installed over solid substrates with minimum 3:12 roof pitch.
Warehouse Sandwich Panels: Efficient Supplier for Cost-Effective Solutions
RaxPanel is a pioneer of insulated metal panels and a leader in the advancement of insulated panel technology, with over 20 years of experience since our founding in 2002. Based in Hebei, China, we specialize as a direct manufacturer of custom composite panel solutions, serving clients in more than 30 countries worldwide.
Our Warehouse Sandwich Panels exemplify this expertise by combining framing, insulation, and sheathing into a single, high-performance unit, promising exceptionally short construction times and significant cost savings for warehouse projects. These panels are engineered to meet or exceed ASTM standards and are backed by long-term warranties, including a 40-year finish warranty, ensuring durability and peace of mind.
At RaxPanel, we conduct business under the golden rule, prioritizing ethics, morals, and treating every customer as a partner. With in-house R&D, design, and production capabilities, we achieve a daily output of 1500+ square meters, operating as a one-stop shop for manufacturing and supply only—we do not provide installation services. For detailed product specifications or assistance with your supply needs, please contact RaxPanel.
| Parameter | Specification |
|---|---|
| Product Type | Warehouse Sandwich Panel |
| Core Material | Expanded Polystyrene (EPS) Foam |
| Core Density | 1.5 pounds per cubic foot (pcf) |
| Skin Materials | Aluminum or Steel |
| Aluminum Skin Thickness | 0.024 inch or 0.032 inch |
| Steel Skin Gauge | 24 gauge or 26 gauge |
| Panel Width | 12 inches, 16 inches, 24 inches (2 feet), 48 inches (4 feet) |
| Panel Length | 3 feet to 48 feet (customizable) |
| Panel Thickness | 3 inches, 4 inches, 6 inches |
| Standard Colors | White, Eggshell, Wheat, Dark Bronze |
| Finish Options | Stucco, Cedar Embossing |
| Fastener System | Concealed snap-lock design |
| Minimum Roof Pitch | 3:12 |
| Maximum Clear Span | Up to 22 feet (varies based on load rating) |
| Warranty – Finish | 40 years against peeling |
| Warranty – Structural | 15 years |
| Compliance Standards | ASTM, CSA, CSSBI |
| Optional Features | Integrated gutter systems, skylights, fan beams for concealed wiring |
Related Products
Frequently Asked Questions
What are warehouse sandwich panels made of?
Warehouse sandwich panels are composed of EPS foam insulation sandwiched between structural skins of steel or aluminum, featuring a snap-lock joint design for easy assembly and a tight seal.
What thickness options are available for warehouse sandwich panels?
These panels are available in thicknesses of 2 , 3 , 4 , 6 , and 8 , with options for different foam densities such as 1lb, 1.5lb, or 2lb EPS foam.
How energy-efficient are warehouse sandwich panels?
Warehouse sandwich panels are highly energy-efficient, with case studies showing reductions in heating and cooling costs of up to 58% compared to conventional stick-built structures due to their continuous foam interface and minimal gaps.
Are warehouse sandwich panels structurally strong?
Yes, they are structurally superior, offering high racking resistance and ability to withstand vertical loads, earthquake forces, and hurricane winds, making them suitable for demanding environments.
What applications are warehouse sandwich panels suitable for?
These panels are designed for use in floors, walls, and roofs of both commercial and residential buildings, including industrial applications like warehouses, due to their strength and insulation properties.
What color and finish options do warehouse sandwich panels come in?
They are available in a range of colors such as white, ivory, sandstone, adobe, bronze, desert sand, and black, with finishes including stucco, cedar, or smooth textures, often coated with products like Sherwin Williams Polyester or AkzoNobel Ceram-a-star.
Do warehouse sandwich panels meet building code requirements?
Yes, these panels are engineered to comply with applicable building codes and come with generic performance evaluation reports that can be used for permit applications, ensuring structural adequacy.
How does your manufacturing process ensure consistent quality and timely delivery for large-volume OEM orders?
Our high-performance building panels are manufactured with in-house R&D and strict quality control, ensuring consistent dimensions and reliability. With a daily output of over 1500 m² and experience serving clients globally, we support large-volume orders through efficient production processes, reducing lead times and maintaining supply chain stability for OEM integration.
What support do you provide to help distributors maintain inventory turnover and profitability?
We offer favorable pricing for bulk orders and provide marketing support, including brochures and samples, to aid in product promotion. Our reliable logistics and consistent product availability help distributors manage inventory effectively, ensuring high turnover and maximizing margins through a partnership-focused approach.
How do your panels contribute to faster installation and reduced labor costs for contractors?
Our panels feature an easy snap-in-place design that simplifies installation, saving time on site. They are structurally superior and meet building code requirements, allowing contractors to complete projects efficiently, reduce labor costs, and stay on budget while ensuring durability and performance.
