Insulated Metal Panel Systems

Insulated Metal Panel

Insulated metal panels combine two metal sheets with an insulated core to provide thermal resistance, structural protection, and finished surfaces in a single assembly. These prefabricated building components streamline construction for commercial, industrial, and residential roofs and walls by eliminating multiple material layers and reducing installation time compared to traditional built-up systems.

The panels typically feature steel substrates with weather-resistant coatings and rigid foam insulation cores. Polyisocyanurate (PIR) foam delivers R-values around 7 to 7.2 per inch, while advanced technologies like QuadCore achieve up to 8.0 per inch. The foam core enhances acoustic performance and airtightness while maintaining lightweight properties at approximately 3.3 pounds per square foot.

Available in corrugated, trapezoidal, and flat profiles, panels range from 24 to 45¼ inches wide and 1 to 8 inches thick, providing R-values from R-5 to R-72. Standard lengths extend up to 54 feet, accommodating pitched roofs with slopes as low as 4 degrees, flat roofs, wall systems, and specialized applications like cold storage facilities.

Installation utilizes concealed or exposed fasteners attached to structural trusses with support spacing of 4 to 5 feet. Interlocking joints ensure secure placement, while the prefabricated design enables rapid assembly and supports additional installations such as solar panel mounting systems.

Aluzinc Sandwich Panel

A composite panel constructed with a zinc-aluminum alloy coated steel sheet, known as Aluzinc. This coating provides excellent corrosion resistance and superior heat reflectivity. The panel combines these durable facings with a structural insulating core, ensuring high strength and a long service life.

Compact Laminate HPL Panel

A self-supporting, high-pressure decorative panel made from multiple layers of kraft paper saturated with phenolic resin. Its high-density, non-porous surface delivers excellent impact and scratch resistance, along with being completely water-resistant, dimensionally stable, and easy to clean.

EPS Sandwich Panel

A lightweight and cost-effective structural panel utilizing an expanded polystyrene (EPS) foam core. This material provides good thermal insulation and sound absorption properties. Its composition offers a high strength-to-weight ratio, making it an economical choice for insulated constructions.

Exterior Wall Cladding Panel

A protective outer layer for building envelopes, designed for superior weather and UV resistance. This material provides a durable, low-maintenance building facade with enhanced thermal performance. It is available in various textures and finishes to create a distinct aesthetic appeal.

Hollow Plastic Formwork

A reusable formwork system made from polypropylene, featuring a hollow internal structure. This design makes it lightweight yet high-strength and waterproof. It offers exceptional durability with high reusability of over 50 cycles and requires no release agent due to its non-stick surface.

PIR Sandwich Panel

A high-performance insulated panel with a rigid polyisocyanurate (PIR) foam core. It is defined by its superior fire resistance and excellent fire performance rating. The core also offers high thermal efficiency, good compressive strength, and long-term structural stability.

Plywood Foam Core Panel

A composite panel constructed with plywood face sheets bonded to a rigid foam insulation core. This structure combines the high structural strength and impact resistance of plywood with the lightweight and thermal insulating properties of the foam, creating a versatile building material.

PUR Sandwich Panel

A high-efficiency insulated panel featuring a rigid polyurethane (PUR) foam core. It is characterized by its excellent thermal insulation properties and a very low thermal conductivity coefficient. This material is lightweight with good bonding strength and high mechanical resistance.

Rockwool Sandwich Panel

A non-combustible composite panel with a core made of high-density stone wool (rockwool). Its defining characteristics are excellent fire resistance and superior acoustic insulation properties. The structural mineral wool core also provides good thermal performance and high compressive strength.

Double Barrel Wooden Rotary Tumbler Machine

Snap N Lock Insulated Panel

An insulated panel system featuring a patented interlocking joint design. This allows for fast, easy installation without additional fasteners. The unique locking mechanism creates a continuous, thermally efficient, and airtight seal, ensuring high structural performance and insulation continuity between panels.

Stainless Steel Sandwich Panel

A high-performance panel featuring stainless steel skins bonded to a rigid insulating core, engineered for maximum durability. Its defining characteristics are superior corrosion resistance, a non-porous hygienic surface that is easy to clean, and excellent fire resistance properties for demanding environments.

Your Trusted Supplier for High-Performance Insulated Metal Panels

RaxPanel, based in China, is a leading direct manufacturer of insulated metal panels with over 20 years of experience, serving clients in 30+ countries. Our versatile IMP panels are engineered to provide industry-best thermal and moisture control along with ultimate design options, meeting diverse architectural needs for walls, roofing, and specialized applications. Through in-house R&D and a daily production capacity of 1500+ m², we deliver high-quality, prefabricated systems that emphasize sustainability and operational efficiency, aligned with our philosophy of creating better buildings for a better world through measurable environmental targets.

The RaxPanel Insulated Metal Panel incorporates a carefully designed PIR insulation foam core sandwiched between durable steel sheets, ensuring superior insulation, strength, and swift installation. Available in a wide range of thicknesses, profiles, coatings, and colors, these panels offer flexibility for both aesthetic and functional requirements. Browse our comprehensive selection of IMP solutions and contact us today for personalized assistance in selecting the ideal products for your project.

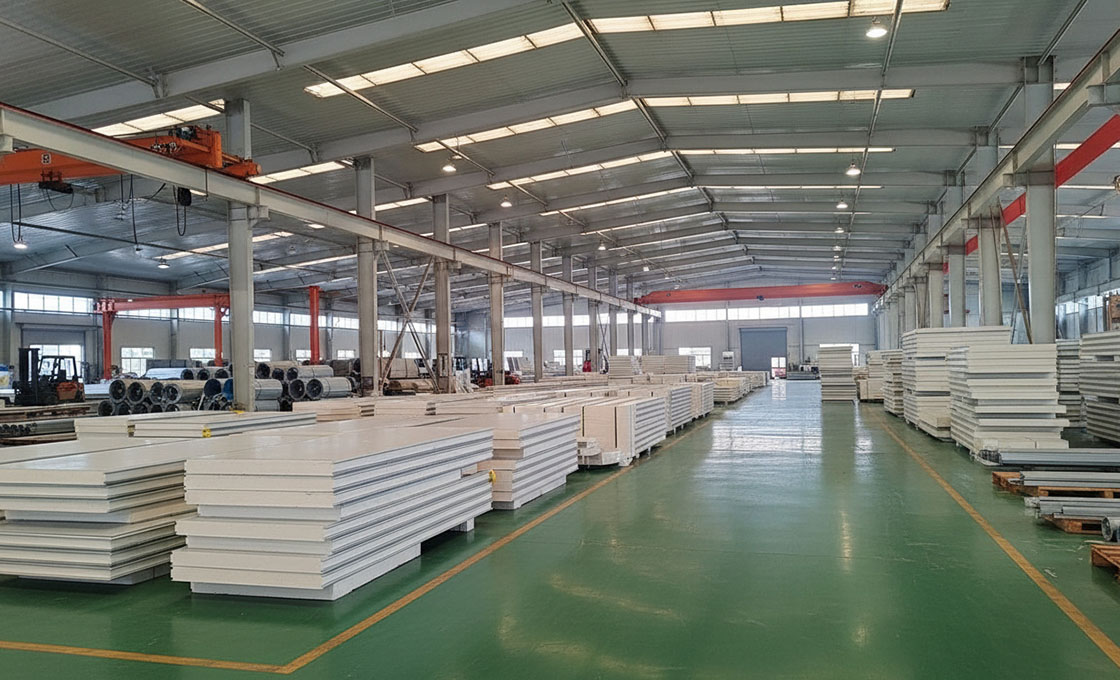

Factory Tour
Send Inquiry Today

Other Products You May Like

Vibratory Bowl Finishing Machine Drawing

Vibratory Finishing Machine

Centrifugal Disc Finishing Machine Drawing

Centrifugal Finishing Machine

Linear Vibratory Continuous Finishing System Drawing

Automatic Mass Finishing System

Frequently Asked Questions（FAQS）

What are insulated metal panels?

Insulated metal panels are exterior roof and wall panels comprised of two pieces of steel skin with insulation foam in the middle, such as PIR insulation, providing a complete solution for thermal resistance and protection.

What are the advantages of using insulated metal panels?

Advantages include energy savings, combining insulation, protection, and finish in one product, lower cost per square meter, quick installation, and suitability for accessories like solar panels. They offer a windproof and watertight roof, enhancing energy efficiency and reducing long-term costs.

What types of roofs can insulated metal panels be installed on?

They can be installed on gable, pent, hip, mansard, and flat roofs with a pitch of 4 degrees or more, making them versatile for commercial, industrial, and residential buildings.

What is the typical R-value of insulated metal panels?

The R-value depends on the insulated foam core; for example, PIR insulation has an R-value of around R-7.2 per inch, and panels can range from R-5 to R-64 for thicknesses of 1 inch to 8 inches.

How are insulated metal panels installed?

Installation involves fastening the panels to wooden or steel trusses using special screws designed for insulation panels. While experienced DIYers can attempt it, professional installation is often recommended due to safety risks and complexity.

What are the standard thicknesses and widths available for insulated metal panels?

Thicknesses typically range from 1 inch to 8 inches, and widths are usually between 24 inches and 42 inches for commercial panels, with cold storage panels up to 45 3/8 inches wide.

Can insulated metal panels support solar panels or other accessories?

Yes, with special brackets and depending on the span and substructure, but professional advice is recommended to ensure the construction is strong enough and to avoid potential problems.

How can insulated metal panels help me complete construction projects more efficiently and stay within budget?

Insulated metal panels are designed for swift installation, often reducing construction time by up to half compared to traditional multi-part systems, which helps lower labor costs and maintain budget control. Their integrated design combines insulation, protection, and finishing in a single product, streamlining the building process. Additionally, the high thermal performance leads to long-term energy savings, enhancing project value.

What customization options are available to ensure these panels integrate seamlessly into our manufacturing or design requirements?

These panels can be customized in a wide range of thicknesses, profiles, coatings, and colors to meet specific aesthetic and functional needs. Options include various standard and custom lengths, with profiles such as corrugated or trapezoidal, and finishes like polyester coatings or high-quality steel skins. This flexibility allows for tailored solutions that align with unique project specifications.

What technical support and documentation are provided to verify compliance with building codes and performance standards?

Comprehensive technical data sheets, including details on R-values, fire ratings, and structural loads, are available. The products are evaluated by independent third-party testing laboratories for building code compliance, and certifications such as Environmental Product Declarations (EPDs) ensure transparency. Access to CAD models and performance test reports further supports design and specification accuracy.
