GRP Balsa Core Sandwich Panels | Lightweight & Durable

GRP Balsa Sandwich Panel

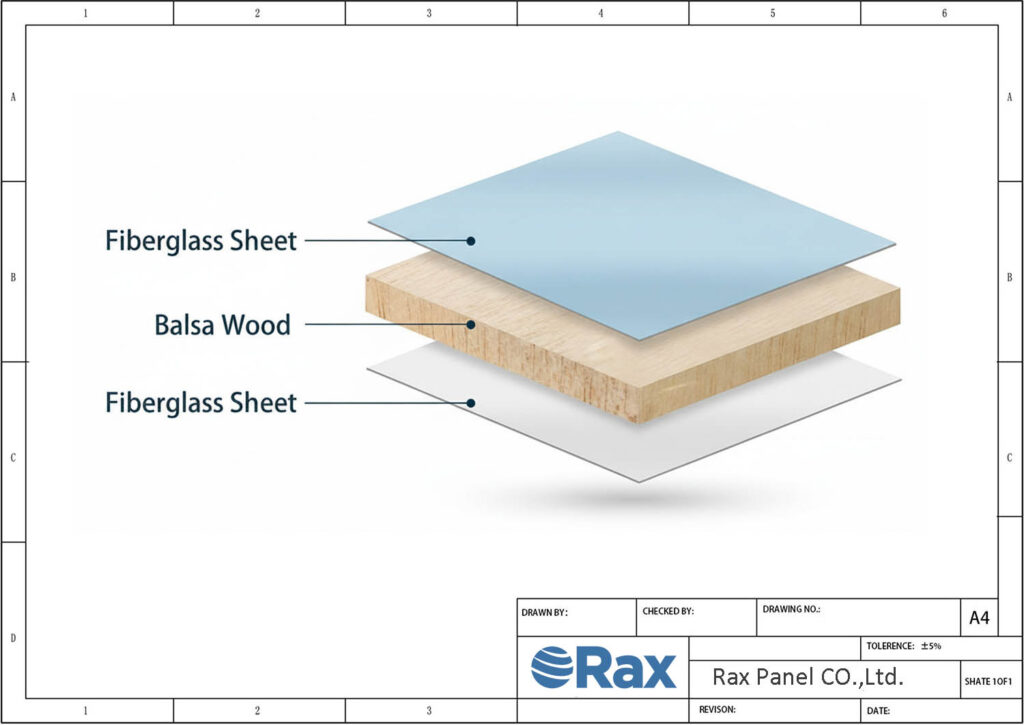

Glass Fiber Reinforced Plastic (GRP) balsa sandwich panels combine fiberglass skins with a balsa wood core, delivering lightweight construction with high compressive strength for structural applications. The GRP skins contain 30% to 40% resin matrix (thermosetting or thermoplastic) reinforced with glass fibers, while the balsa core provides natural low-density material with excellent resin compatibility.

Balsa wood, one of the fastest-growing trees, typically has a density of 130 to 180 kg/m³. Its cellular structure bonds effectively with GRP skins through hot melt or adhesive lamination, creating a sandwich configuration that distributes loads efficiently and enhances mechanical performance.

The panels offer compressive strength, thermal insulation, and resistance to moisture, corrosion, and mechanical impact. Additional properties include fire retardance, fatigue resistance, and environmental recyclability. Standard panels are available in thicknesses from 5 to 50 mm, with dimensions up to 3.2 meters wide and 12 meters long, customizable for specific project requirements.

Manufacturing involves slicing, patching, cutting, grinding, heating, dehumidifying, coating, and trimming the balsa core before lamination with GRP skins, ensuring controlled density and precise bonding for optimal panel integrity and long service life.

Global Manufacturer of Custom GRP Balsa Sandwich Panels

RaxPanel is a direct manufacturer in Hebei, China, specializing in custom composite panel solutions. With 20+ years of experience since 2002, we are a technology company integrating R&D, design and production. Our advanced composite panel production line delivers a daily output of more than 1500 m². This high-volume capability, combined with our deep expertise, ensures that our GRP Balsa Sandwich Panels meet rigorous quality standards and are well-received in the industry.

Our dedicated engineering team has an in-depth understanding of customer project requirements. Through experimental testing, we develop composite products that meet various performance standards. The GRP Balsa Sandwich Panels we produce offer exceptional strength-to-weight ratio, impact resistance, and durability, performing reliably even under stringent conditions. These panels are widely used in:

Transportation
Marine
Construction
Industrial applications

Currently serving clients in 30+ countries, we provide manufacturing and supply-only services with a focus on rapid, cost-effective, and high-quality solutions. Please get in touch with us for further information about our products, including data on prices.

Parameter Category	Parameter	Value / Specification
Core Material	Type	End-Grain Balsa Wood
	Density	9.5 lbs/ft³ (152.2 kg/m³)
	Available Forms	Rigid Drilled, Rigid Grooved, Rigid Coated Panels
Skin Material	Type	Glass Fiber Reinforced Plastic (GRP) Laminate
	Matrix Resin	Thermosetting Polyester
Physical Dimensions	Standard Width	1220 mm
	Standard Length	2440 mm
	Max Custom Width	3200 mm
	Max Custom Length	12000 mm
	Thickness Range	5 mm to 100 mm
	Standard Thicknesses	6.35 mm (1/4″), 9.525 mm (3/8″), 12.7 mm (1/2″), 19.05 mm (3/4″)
Key Properties	Strength-to-Weight Ratio	High
	Flexural Strength	High
	Flexural Modulus	High
	Impact Strength	High
	Dimensional Stability	High
	Moisture Resistance	High
	Corrosion Resistance	High
	Chemical Resistance	Wide Range
	Thermal Insulation	Good
	Sound Absorption	Good
	Operating Temperature Range	Wide
	Fatigue Properties	Excellent
	Fire, Smoke & Toxicity	Meets International Requirements
Environmental	Core Source	Natural, Renewable Resource
	Recyclability	Yes
Common Applications		Boat Building (partitions, doors, ceilings, furniture), Aerospace, Automotive, Wind Energy, Construction (facades, internal partitions), Commercial Trailers, Caravans, Specialized Containers

Related Products

GRP Foam Core Panel

GRP Honeycomb Panel

GRP Plywood Panel

GRP Balsa Sandwich Panel

GRP PET Sandwich Panel

GRP PU Sandwich Panel

GRP PVC Sandwich Panel

GRP XPS Sandwich Panel

Frequently Asked Questions (FAQS)

What is a GRP balsa sandwich panel?

A GRP balsa sandwich panel combines fiberglass reinforced plastic (FRP) skin with a balsa wood core, creating a lightweight structural material with high compressive strength. The skin material can be thermosetting GRP or thermoplastic GRP (CFRT sheet), while the core uses balsa wood, one of the world's lightest woods with a density of only 0.1kg/cm³.

What are the advantages of GRP balsa sandwich panels?

These panels offer exceptional strength-to-weight ratio, high compressive strength and stiffness, strong fire retardance, excellent shearing strength, wide operating temperature range, fatigue resistance, styrene imperviousness, and cost efficiency.

What thickness and dimension options are available?

Thickness ranges from 5mm to 50mm, with fully customizable length and width to meet specific project requirements.

How do the panels facilitate installation in construction projects?

The panels are lightweight and easy to cut, allowing for quick on-site assembly. Their sturdy, waterproof, and damage-resistant properties ensure durability and efficiency across various construction environments.

What customization options do you offer for large-volume OEM orders?

We provide fully customized dimensions for length, width, and thickness. With over 20 years of manufacturing experience and a daily production capacity exceeding 1500 square meters, we efficiently handle large-volume orders.

What technical documentation and support do you provide?

We offer comprehensive technical support including material selection guidance, performance testing reports, detailed specifications on all materials and parameters, and CNC machining services to ensure precision in meeting design requirements.

Which international markets do you serve?

Our products are distributed across over 30 countries, including Europe, South America, North America, the Middle East, Central Asia, Southeast Asia, and Africa, with established supply chains ensuring reliable delivery.
