Insulated Cleanroom Panels for Controlled Environments

Clean Room Panel

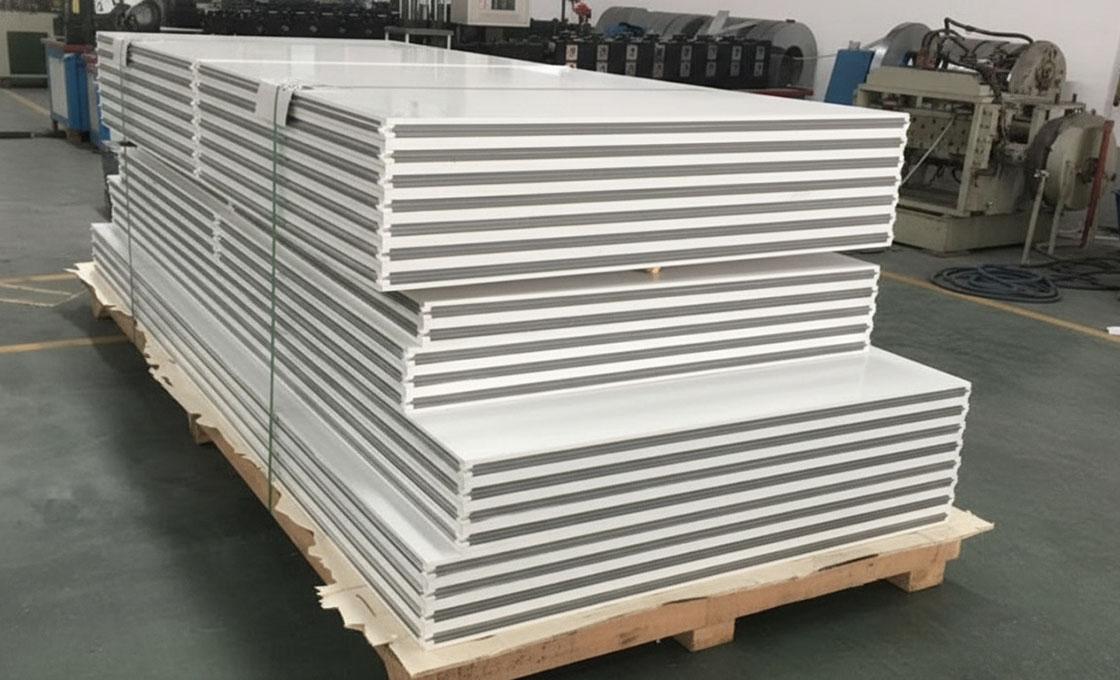

Clean room panels combine Chlorofluorocarbon (CFC)-free polyurethane (PUR) or polyisocyanurate (PIR) foam cores with metal cladding to create airtight, thermally efficient enclosures for hygienic environments. The foam core, with density ranging 40-50 kg/m³ and thermal conductivity of 0.020-0.024 W/(m·K), is sandwiched between pre-painted galvanized steel, stainless steel (AISI 304/316), aluminum, or fiber-reinforced plastic (FRP) sheets.

Available in thicknesses from 50mm to 250mm and standard widths of 960mm, 1000mm, or 1120mm, panels feature tongue and groove connections with internal cam-lock fasteners. This interlocking system eliminates thermal bridging while ensuring structural stability and airtight sealing. Surface treatments include antimicrobial coatings meeting EC/USDA and FDA hygiene standards.

The panels deliver thermal insulation for energy efficiency, moisture resistance, and chemical compatibility across temperatures from -45°C to controlled ambient conditions. Applications include food processing, pharmaceutical storage, biomedical clean rooms, laboratories, and horticulture facilities for walls, ceilings, partitions, and roofing systems.

Modular design enables rapid assembly using simple Allen wrench operations without specialized tools or on-site cutting. Both vertical and horizontal installation orientations accommodate various architectural requirements while maintaining consistent thermal performance throughout the enclosure.

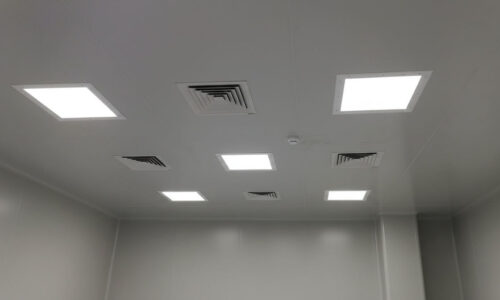

Clean Room Ceiling Panel

A lightweight, walkable panel system with a non-porous, non-shedding surface designed to prevent particle accumulation. It features airtight, sealed joints and is engineered to support the integration of HEPA filters, lighting, and other utilities while maintaining the integrity of the controlled environment.

Clean Room Door Panel

A durable door system featuring a smooth, seamless, and flush surface that is easy to clean and disinfect. It is engineered with a hermetic sealing system to ensure airtightness and maintain pressure differentials, utilizing hardware designed to minimize particle generation during operation.

Double Barrel Wooden Rotary Tumbler Machine

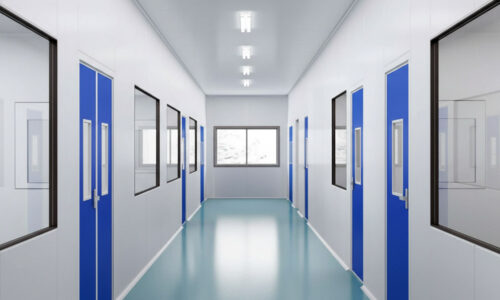

Clean Room Partition Panel

A modular, freestanding panel system used to create flexible enclosures within a controlled environment. It provides high structural stability and features smooth, chemical-resistant surfaces with sealed, flush joints. These panels can be easily reconfigured and often incorporate integrated utility raceways.

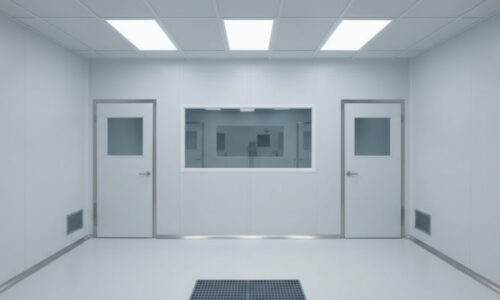

Clean Room Wall Panel

A non-load bearing panel with a smooth, durable, and chemical-resistant surface designed to be non-particulating. The interlocking tongue-and-groove joints are filled with a sealant to create a flush, airtight, and monolithic wall system that is easy to sterilize and maintain.

Leading Clean Room Panel Manufacturer

As the industry leading insulated panel manufacturer for clean room environments, RaxPanel provides multiple panel types for different applications. With over 20 years of experience as a direct manufacturer based in Hebei, China, we specialize in custom composite panel solutions that meet the highest standards of thermal efficiency and durability. Our clean room panels are built with high-quality insulation materials, featuring robust construction with corrosion-resistant steel sheets and advanced foam cores that ensure optimal thermal performance and long-lasting reliability.

Our devotion and commitment to quality is reflected in our in-house R&D, design, and production capabilities, allowing us to deliver tailored solutions for a wide range of applications. Key features of our panels include:

Precision tongue-and-groove interlocking systems that act as thermal breaks, ensuring sustained interior conditions and reducing energy consumption.
A daily output of over 1500 m².
Service to clients in more than 30 countries.
Panels that meet international standards for hygiene and performance.

Choose RaxPanel for high-quality clean room panels today!

Factory Tour
Send Inquiry Today

Other Products You May Like

Vibratory Bowl Finishing Machine Drawing

Vibratory Finishing Machine

Centrifugal Disc Finishing Machine Drawing

Centrifugal Finishing Machine

Linear Vibratory Continuous Finishing System Drawing

Automatic Mass Finishing System

Frequently Asked Questions

What are the standard thickness options for RaxPanel clean room panels?

Common thicknesses include 50mm, 75mm, 100mm, 120mm, 150mm, and 200mm.

What materials are used in RaxPanel clean room panels?

Panels are constructed with CFC-free insulated PU or PIR foam cores, clad with stainless steel, galvanized steel, or pre-painted color steel sheets that are corrosion-resistant and meet international hygiene standards.

How are RaxPanel clean room panels installed?

Panels feature a cam-lock system and tongue-and-groove joints for airtight, seamless assembly, allowing for quick and efficient installation without on-site cutting.

Can RaxPanel clean room panels be customized?

Yes, panels are available in custom widths, lengths, thicknesses, and colors according to RAL charts, with options for different surface materials and finishes.

What temperature ranges do RaxPanel clean room panels support?

Panels are designed for controlled environments, typically supporting temperatures from -45°C to +10°C, with excellent thermal insulation properties.

What certifications do RaxPanel clean room panels comply with?

Panels meet CE, FM, FDA, and other international standards, with options for third-party certifications like SGS to ensure quality and compliance.

What applications are RaxPanel clean room panels suitable for?

Ideal for food storage, pharmaceutical facilities, clean rooms, horticulture, healthcare, and industrial environments requiring precise temperature control and hygiene.

What level of customization and technical collaboration is available for integrating panels into our manufacturing processes?

We offer extensive customization options, including tailored sizes, thicknesses, and surface materials to meet specific requirements. Our panels feature seamless tongue-and-groove joints with cam-lock systems for airtight seals, and we provide technical support with detailed specifications, CAD models, and performance test reports upon request. With in-house R&D and over 20 years of experience, we ensure solutions that align with your innovation and quality standards, though we focus on manufacturing and supply without installation services.

How do you ensure reliable supply and competitive pricing for bulk orders to support our distribution network?

Our direct manufacturing model allows for high-volume production with a daily output of over 1500 m², ensuring consistent availability and cost-effective pricing for bulk orders. We use high-quality materials like CFC-free PU or PIR cores with corrosion-resistant cladding, and offer options such as stainless steel or galvanized steel finishes. While we do not handle logistics directly, our efficient production and global reach to 30+ countries enable reliable supply chain partnerships, supported by warranties and compliance with international standards like EC/USDA hygiene requirements.

What design features facilitate quick and efficient installation for contractors working on tight project schedules?

Our panels are designed for fast and problem-free assembly, featuring cam-lock systems and tongue-and-groove joints that allow for easy, tool-free installation without on-site cutting. They are lightweight yet durable, with compressive strength and bending resistance suitable for various applications. Although we provide detailed installation guides and technical support, we are a manufacturing-only supplier and do not offer installation services, ensuring contractors can integrate them efficiently into projects while maintaining budget and timeline goals.
