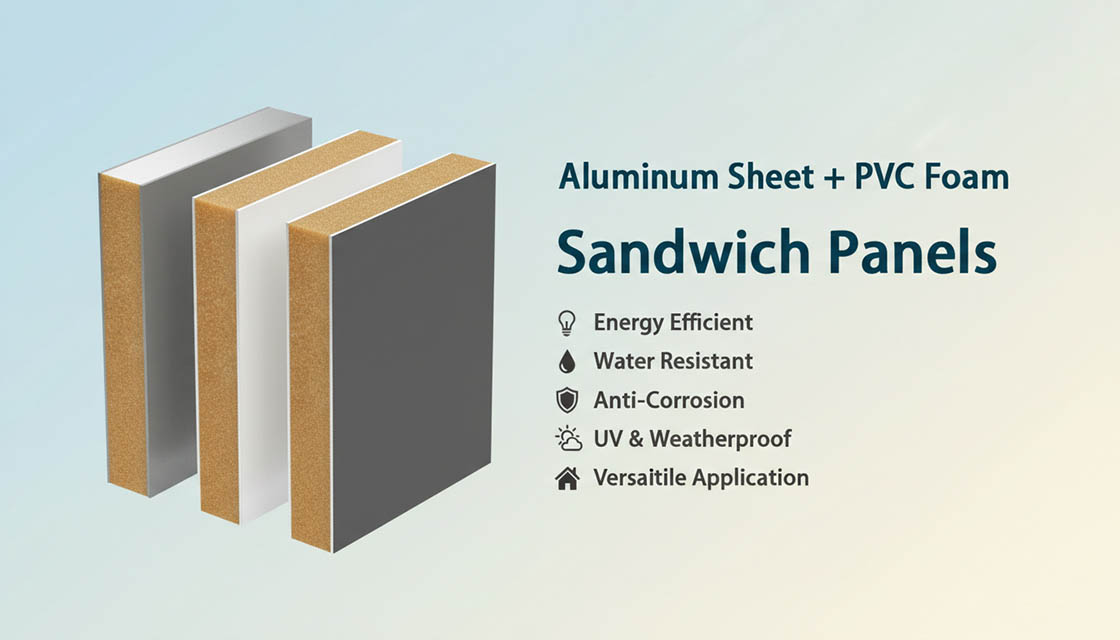

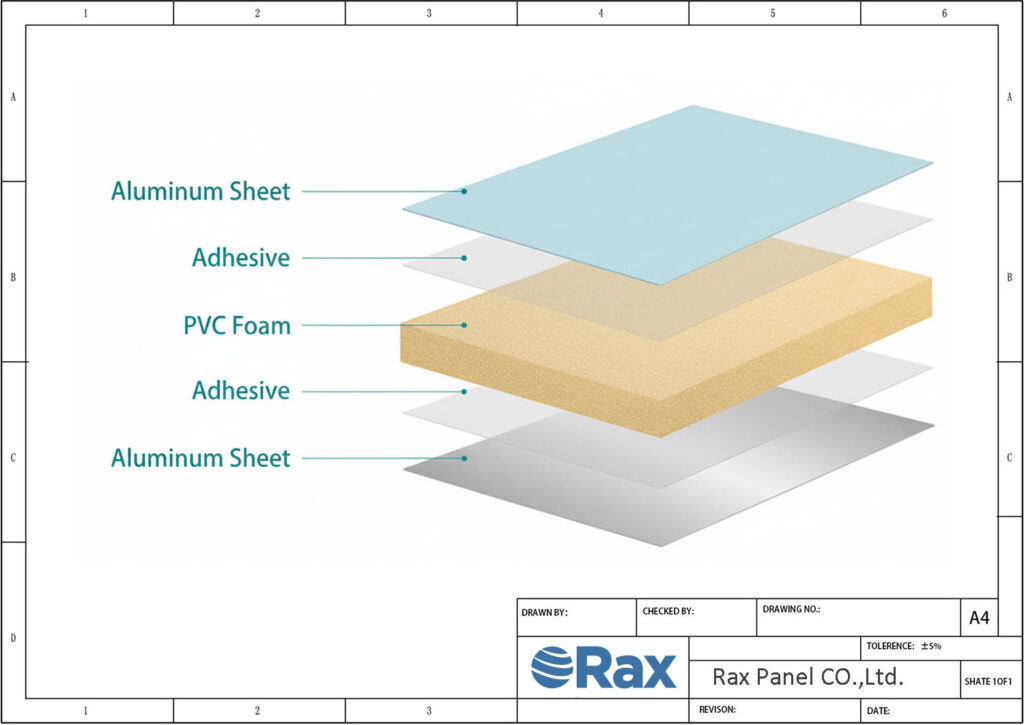

An Aluminum PVC Sandwich Panel is a composite material consisting of two layers of aluminum sheets bonded to a core made of PVC (polyvinyl chloride) foam. This structure combines the lightweight and corrosion-resistant properties of aluminum with the insulating and weather-resistant characteristics of PVC foam.

The key advantages include being lightweight, providing excellent thermal insulation, having good weather resistance, and being easy to process. They also offer high strength, waterproofing, flame-retardant properties, and resistance to chemicals.

Common applications include exterior and interior cladding, roofing, and partition walls in buildings; manufacturing of lightweight components for vehicles like vans, RVs, and trailers; marine applications such as boat cabins and bulkheads; and in modular buildings, furniture, and public transportation.

The aluminum skin can be made from grades such as 1050, 1060, 3003, and 5052, with surface treatments like anodizing, painting, sandblasting, or polishing. The PVC foam core has a density ranging from 40kg/m³ to 250kg/m³, providing properties like high strength and thermal insulation.

Standard specifications include a total thickness range from 10mm to 120mm, aluminum sheet thickness of 0.1mm or more, width from 800mm to 2600mm, and length up to 12 meters. Custom sizes beyond these standards are available through manufacturers like RaxPanel.

The PVC foam core provides excellent thermal insulation, and the aluminum skin offers corrosion resistance and durability. The panels are weather-resistant, capable of withstanding UV rays and moisture, and have good fire resistance, contributing to a long service life with easy maintenance.

RaxPanel manufactures panels using advanced composite technology such as high-pressure vacuum bonding to ensure tight adhesion between the aluminum skins and PVC foam core. High-quality, ISO-certified materials and high-precision CNC machining are employed for consistent quality, resulting in flat, bubble-free panels resistant to delamination, which enhances long-term durability.

Yes, Aluminum PVC Sandwich Panels can be extensively customized. RaxPanel, a direct manufacturer in Hebei, China specializing in custom composite panel solutions, offers customization including variable thicknesses (10-150mm), widths (up to 2600mm), and lengths (up to 12m). Appearance options include solid colors from the RAL series, wood grain, stone grain, metallic colors, and custom patterns with matte, glossy, or textured finishes. With in-house R&D, design, and production capabilities, and a daily output of over 1500 m², RaxPanel provides full-chain solutions for specific industry applications, backed by 20+ years of experience serving clients in 30+ countries.

Yes, RaxPanel provides comprehensive technical specifications, including detailed data on aluminum sheet thicknesses, PVC foam densities, and performance characteristics such as thermal insulation and fire resistance. We collaborate on design requirements to ensure compliance with project standards, leveraging our experience in diverse global applications.

RaxPanel offers flexible ordering options with customizable solutions to accommodate various project scales. Samples are available for evaluation to confirm product suitability. Our team works closely with customers to discuss specific requirements, including quantity, delivery, and payment terms, ensuring a straightforward purchasing process.
