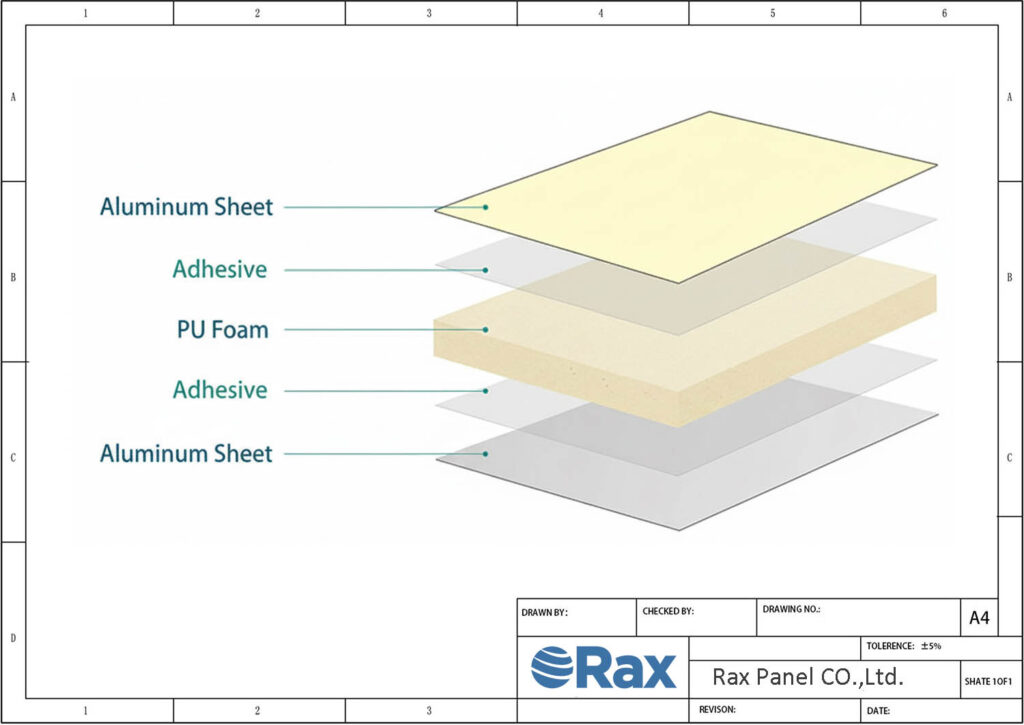

Aluminum PU Sandwich Panels consist of two outer layers of aluminum sheets and a core of polyurethane foam (PU). The aluminum sheets provide strength, durability, and corrosion resistance, while the PU foam core offers excellent thermal insulation and contributes to the panel's lightweight nature.

Key features include lightweight construction for easy handling, effective thermal insulation to reduce energy costs, weather resistance due to protective aluminum skins, fire resistance with fire-retardant options, aesthetic versatility with various colors and finishes, and environmental friendliness as both aluminum and PU foam are recyclable.

These panels are widely used in cold storage rooms for walls and roofs, in transportation for refrigerated trucks and trailers, in building construction for exterior and interior walls and roofs of factories, warehouses, and commercial buildings, and in industrial applications like clean rooms and soundproof enclosures.

The panels are designed for straightforward installation due to their lightweight nature. For roofing applications, they often feature an interlocking or snap-fit system for quick, secure attachment without visible screws. They can be easily cut and processed for assembly on frames. Note: RaxPanel provides manufacturing and supply services only; installation is handled by clients or contractors, with technical support available.

The polyurethane foam core has low thermal conductivity, typically ranging from 0.020 to 0.030 W/m·K, providing excellent thermal insulation. This helps maintain stable indoor temperatures, reduces heat transfer, and lowers heating or cooling costs, contributing to significant energy savings.

The panels offer fire resistance through fire-retardant PU foam cores and aluminum skins with high melting points, achieving ratings such as B1 grade. With proper installation and maintenance, the service life can exceed 45 years, ensuring long-term durability and performance.

Yes, as a direct manufacturer with over 20 years of experience, RaxPanel specializes in custom composite panel solutions. Customization includes total thickness from 10mm to 120mm, width up to 2600mm, and length up to 12 meters. Options include aluminum sheet thickness from 0.1mm, aluminum grades such as 1050, 3003, and 5052, surface treatments like fluorocarbon coating or anodizing, surface colors in standard RAL or custom patterns, and PU foam density from 28 to 80kg/m³.

We ensure high standards through a controlled manufacturing process using state-of-the-art equipment, including high-precision CNC machining for dimensional accuracy. Production involves automated lines and spray adhesive or vacuum compression technology for a strong bond between aluminum skin and PU foam core. Strict quality control is applied from raw materials to final product, backed by a daily output of over 1500 m² and decades of expertise serving clients in over 30 countries.

We provide comprehensive technical information, including specifications on thermal conductivity, compression strength, fire resistance ratings, and material densities. This data covers the performance of aluminum skins and PU foam core under various conditions, helping ensure compliance and achieve desired insulation, durability, and safety. Specific values are detailed in the relevant FAQs.

As a direct manufacturer based in Hebei, China, we maintain strong control over our supply chain and production schedule. Experienced in handling bulk orders for OEMs, distributors, and large projects, we serve clients in over 30 countries with secure packaging for shipping. Our daily production capacity of over 1500 m² enables efficient fulfillment of large orders, ensuring supply chain stability and reliable delivery timelines.
