ACP vs ACM: What Is the Real Difference?

Across our 15+ years of fabricating custom ACP and ACM composite envelopes for international projects at RaxPanel, our international facade engineering team regularly reviews cross-border tender documents where contract managers debate these acronyms. In material science, ACM strictly denotes the continuous flat raw composite sheet, while ACP refers to the CNC-fabricated, folded architectural cassette ready for building installation. Clarifying these terms prevents costly specification mismatches and ensures full fire-safety code compliance.

Figure 1: Cross-sectional engineering view of architectural composite panels, showing continuous fusion between coil-coated aluminum skins and mineral cores.

Are ACP and ACM the Same Material?

From an engineering and material composition perspective, ACP and ACM are functionally and structurally identical. The composite sandwich architecture was originally invented in 1969 to overcome the heavy dead-load and thermal oil-canning limitations of monolithic sheet aluminum. Over the past five decades, the material has evolved into the world’s most widely specified architectural metal cladding system.

Both products consist of a continuous multi-layer composite manufactured via automated roll-to-roll thermal fusion lamination. In structural engineering testing under ASTM D1781 (Climbing Drum Peel Test) and ASTM C297 (Flatwise Tensile Strength), high-grade composite panels must show verified interfacial peel strength (ASTM D1781) and flatwise tensile bond strength (ASTM C297) against the minimums written into your specification, ensuring zero skin delamination under extreme wind loads.

Both products share an identical internal physics architecture across three key engineering layers:

Regional Standards Divide in Global Markets

The split between the acronyms ACP and ACM originated from how regional building code bodies and trade associations organized architectural material classifications in the late 1980s:

Under structural wind load engineering protocols, composite panel cassettes must withstand dynamic cyclic positive and negative suction pressures up to 3.5 kPa under ASTM E330 and CWCT Standard for Systemised Building Envelopes. Structural framing calculations must verify that maximum panel deflection under peak design wind loads does not exceed L/180 (where L is the unsupported panel span), preventing visual oil-canning while maintaining airtight perimeter gasket seals.

For more details on architectural trends driving this adoption, see why ACM panels are gaining popularity.

Raw Composite Sheets vs. Fabricated Cassettes

While the terms are often used interchangeably in general conversation, experienced facade engineers make a nuanced technical distinction based on the supply chain stage:

Figure 2: Continuous coil lamination producing flat, unrouted ACM raw sheet stock ready for CNC fabrication.

1. ACM: The Flat Raw Sheet Stock (The Substrate)

In manufacturing terminology, ACM refers to the unformed, flat composite sheet emerging from the continuous lamination line in master dimensions (such as 1220 mm × 2440 mm, 1500 mm × 3050 mm, or custom coil lengths up to 6000 mm). At this stage, ACM is an unrouted raw construction material.

2. ACP: The Fabricated Architectural Cassette (The Finished Element)

Once raw ACM sheet stock undergoes precision CNC flatbed routing, it transforms into a fully engineered 3D ACP (Aluminum Composite Panel) cassette. The fabrication transformation involves four critical engineering steps:

• V-Groove Geometry: Cutting 90° V-grooves for square 90-degree corners or 135° V-grooves for 45-degree chamfered facade returns, maintaining strict depth tolerances of ±0.05 mm to leave 0.3–0.5 mm of residual core backing.
• Flange Return Folding: Folding perimeter returns (typically 25 mm to 30 mm deep) along the routed fold lines without localized coating crazing or skin fracture.
• Corner Angle Reinforcement: Fastening 2.0 mm thick 6063-T5 extruded aluminum corner brackets with 4.8 mm structural blind rivets to ensure perimeter structural rigidity.
• Intermediate Structural Stiffeners: Bonding extruded aluminum hat-channels across the back panel face using high-strength structural glazing tape (3M VHB) to prevent wind-induced panel oil-canning across panel spans exceeding 1200 mm.

For alternative metal skin options beyond aluminum, explore our MCM vs ACM material comparison guide.

Core Material Types and Fire Classifications

When specifying ACP or ACM, the single most critical engineering decision is core material formulation. The layer-by-layer ACP panel structure guide shows where that decision sits inside the complete panel stack. Under rigorous ISO 5660 Cone Calorimeter and ASTM E1354 testing, the reaction-to-fire behavior is determined by the core’s total heat release (THR ≤ 10 MJ/m² for Class A2) and peak heat release rate (pHRR). Building codes enforce strict thresholds based on building height and occupancy:

Side-by-Side Architectural Specification Matrix

The following engineering matrix provides a side-by-side comparison across regional codes, supply definitions, and testing standards:

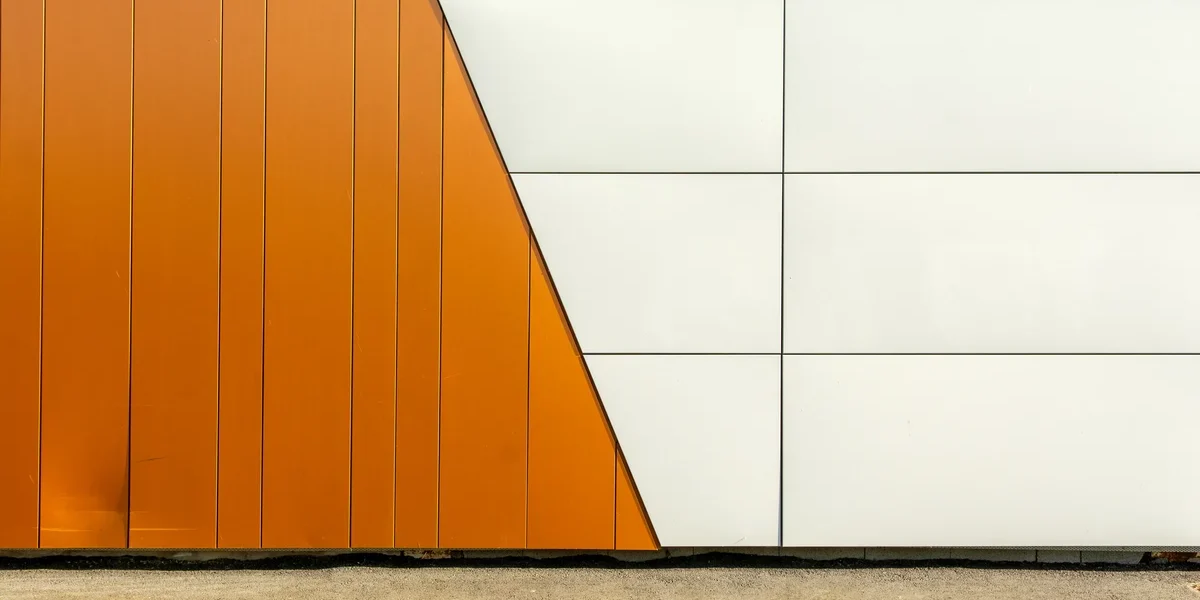

Figure 3: Modern commercial building facade illustrating seamless monolithic planarity achieved with engineered composite panels.

How to Specify Panels in Tender Documents

When drafting contract documentation for international bidding, specifiers must avoid terminology confusion that leads to improper material substitutions:

In North American commercial contracts, the Construction Specifications Institute (CSI) 3-Part Section format dictates precise wording to prevent unauthorized contractor substitutions:

• Part 1 – General (Administrative & Testing): Mandate submittal of manufacturer Technical Data Sheets (TDS), 20-year AAMA 2605 coating warranties, and third-party certified NFPA 285 multi-story fire test reports.
• Part 2 – Products (Material Engineering): Specify 4.0 mm ACM with 0.5 mm AA3003-H24 aluminum skins, 70% Kynar 500 PVDF coil coating, and Class A2 / Class B1 mineral-filled fire-retardant core meeting ASTM E84 Class A (Flame Spread ≤ 25, Smoke Developed ≤ 450).
• Part 3 – Execution (Installation Protocols): Enforce pressure-equalized rainscreen mounting onto extruded aluminum subframing with slotted expansion clips, ensuring minimum 12 mm reveal drainage joints without rigid fastener binding.

For European, Middle Eastern, and Asian international tenders, specify Section H92 Rainscreen Cladding – Aluminum Composite Panels (ACP) complying with EN 13501-1 Class A2-s1, d0 non-combustibility and EN 13523 coil coating mechanical performance standards.

Sustainability & LEED v4.1 Environmental Declarations

Modern global specifications require environmental verification. RaxPanel ACP and ACM panels utilize aluminum skins incorporating up to 35% recycled post-industrial alloy. Specifiers can claim credits under LEED v4.1 Building Product Disclosure and Optimization (BPDO) by requesting third-party verified Type III Environmental Product Declarations (EPD) and Health Product Declarations (HPD) for our mineral-core composite assemblies.

Fabrication, Joint Design, and Installation Details

Converting flat ACM sheet stock into high-performance ACP architectural cassettes requires strict fabrication tolerances:

Figure 4: Precision folded ACP cassette returns mounted onto ventilated rainscreen extrusion rails with slotted thermal clips.

• CNC V-Groove Depth Calibration

  Route the back aluminum skin and core using a 90° or 135° carbide cutter, leaving a residual core thickness of exactly 0.3 mm to 0.5 mm over the front aluminum skin to ensure sharp, crack-free folding.

• Corner Bracket Riveting & Structural Stiffener Spacing

  Reinforce folded perimeter returns (typically 25 mm to 30 mm deep) by riveting heavy-duty 2.0 mm 6063-T5 aluminum corner angle clips with 4.8 mm structural blind rivets spaced at 200 mm to 300 mm intervals along perimeter return flanges. Apply neutral-cure structural silicone sealant to all internal mitre corner joints to guarantee airtight, watertight cassette perimeter integrity.

• Thermal Expansion Joint Detailing

  Because aluminum expands at $23.6 imes 10^{-6} ext{ /K}$, mount cassettes onto vertical extrusions using slotted anchor clips, leaving 10 mm to 15 mm open reveal joints for pressure-equalized rainscreen drainage.

International Sourcing and Specification Traps

Avoid these critical cross-border specification mistakes during project procurement:

For custom engineering and high-precision fabrication submittals, explore RaxPanel’s engineered architectural composite wall panels manufactured to strict international building envelope standards.
